Remove/Install Outer Trim On Seat Frame - AR91.10-P-1201LWA

Model 205.0/1/2, 213, 253, 293

with code P65 (Seat comfort package)

with code U22 (Lumbar support adjustment)

Model 205.0/1/2, 213, 253

with code 555 (AMG Performance seats)

with code U22 (Lumbar support adjustment)

MODIFICATION NOTES

24.07.2019 Service Media added in operation step 5.

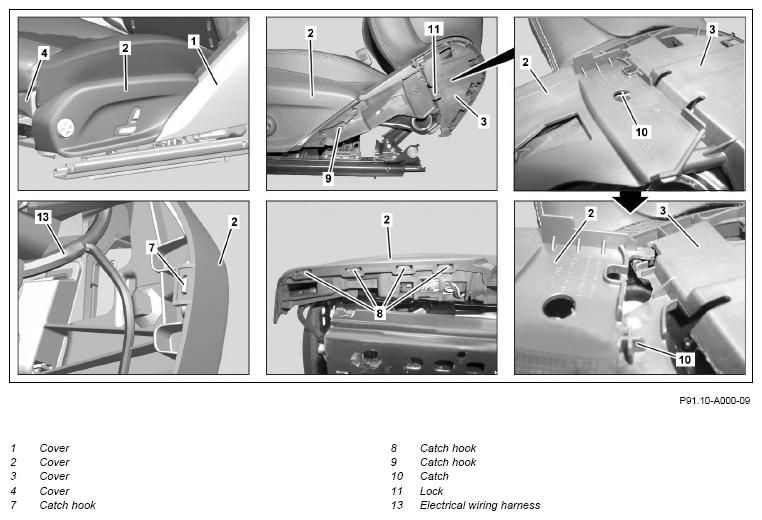

G12825174Courtesy of MERCEDES-BENZ USA

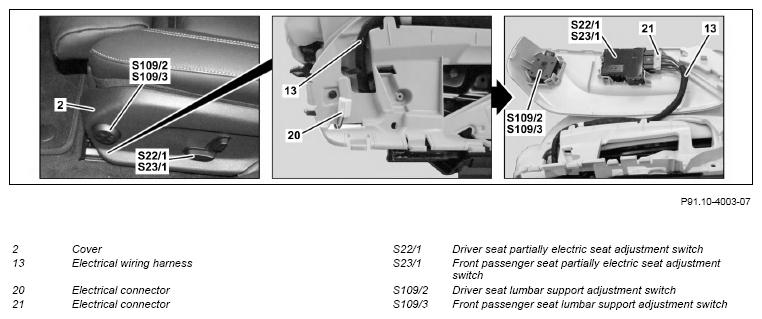

G12825175Courtesy of MERCEDES-BENZ USA

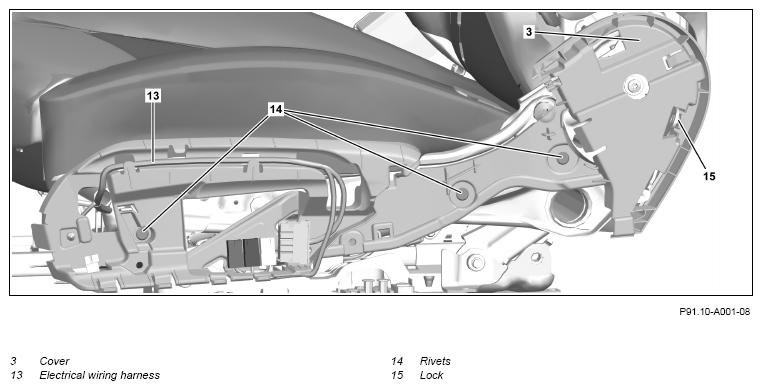

G12825176Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1.1 Remove front seat. If trim (3) is removed.
Remove/install front seat
AR91.10-P-1000LW
1.2 Move front seat to front most position and all the way up. If only paneling (1, 2, 4) is being removed.
2 Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). If the front seat was not removed.
3 Cover door sill. If the front seat was not removed.
4 Unclip trim (4) at top and remove downwards. If installed. SPECIAL TOOL Long wedge Fig 1
5 Release trim (1) upwards and remove. IMPORTANTService Media
6 Disconnect electrical connector (20).
7 Press trim (2) inwards and unhook from catch hook (7).
8 Unclip retaining clip of electrical wiring harness (13).
9 Push trim (2) downwards and unhook from catch hook (8).
10 Unhook catch hook (9) from trim (3).
11 Push lock (11) to side and pull trim (2) outwards over the catch (10).
12 Unhook trim (2) at front from trim (3), swivel upwards and place to one side.
13 Disconnect electrical connector (21).
14 Remove partially electric seat adjustment switch (S22/1, S23/1). When replacing cover (2).
Model 205.0/1/2, 253, 293 with code P65 (Seat comfort package) with code U22 (Lumbar support adjustment)
except code 221 (Electrically adjustable left driver seat)
except code 222 (Electrically adjustable right front seat)
except code 241 (Memory switch for electrically adjustable front passenger seat, left)
except code 242 (Front passenger seat, electrically adjustable with memory function)
except code 275 (Driver's seat, electrically adjustable with memory function)
Model 205.0/1/2, 253 with code 555 (AMG Performance seats) with code U22 (Lumbar support adjustment)
except code 221 (Electrically adjustable left driver seat)
except code 222 (Electrically adjustable right front seat)
except code 241 (Memory switch for electrically adjustable front passenger seat, left)
except code 242 (Front passenger seat, electrically adjustable with memory function)
except code 275 (Driver's seat, electrically adjustable with memory function)
Model 213 with code 555 (AMG Performance seats) with code U22 (Lumbar support adjustment)
except code 221 (Electrically adjustable left driver seat)
except code 222 (Electrically adjustable right front seat)
except code 275 (Memory Package (driver's seat, steering column and mirror))
Model 213 with code P65 (Seat comfort package) with code U22 (Lumbar support adjustment)
except code 221 (Electrically adjustable left driver seat)
except code 222 (Electrically adjustable right front seat)
except code 275 (Memory Package (driver's seat, steering column and mirror))
AR91.29-P-2523LWA
15 Remove lumbar support adjustment switch (S109/2, S109/3). When replacing cover (2). AR91.25-P-1436LWE
16 Remove electrical wiring harness (13) from working area. IMPORTANT Note installation position of electrical wiring harness (13).
17 Drill out rivets (14). INSTALLATION IMPORTANT Replace rivets (14).
18 Release lock (15) and remove cover (3).
19 Install in the reverse order.
Fig 1: Identifying Long Wedge (115 589 03 59 00)
