Remove/Install Additional Engine Radiator - AR20.20-P-3867MNG
Engine 177 in model 253
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142MNG | |

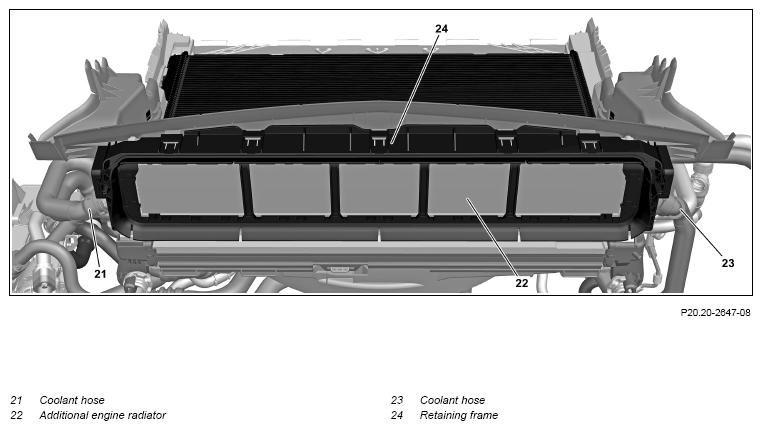

| 2 | Disconnect coolant hoses (21, 23) at additional engine radiator (22) and seal openings with protective covers | AR20.20-P-7441-01RQ | |
| Fig 3 | |||
| 3 | Unclip retaining frame (24) of additional engine radiator (22) at front and rear of air duct segment (12) | ||

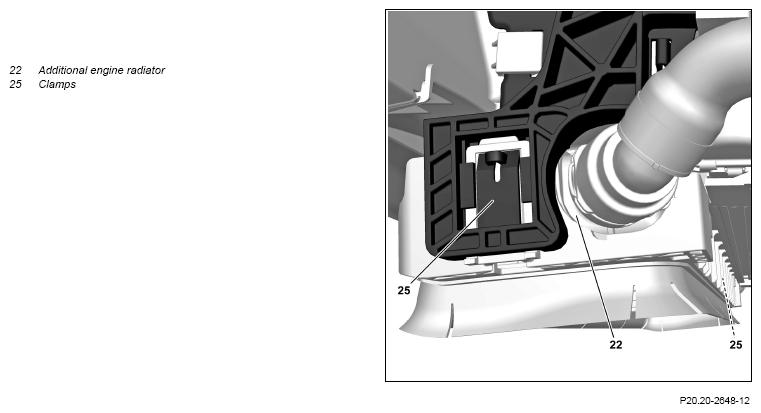

| 4 | Release clamps (25) of additional engine radiator (22) at brackets (2) | ||
| 5 | Remove additional engine radiator (22) downwards | ||
| 6 | Check additional engine radiator (22) for damage | Where additional engine radiator (22) is damaged. ↓ Replace additional engine radiator (22). |
|
| 7 | Check brackets (2) and air duct segment (12) for damage | Where air duct segment (12) and brackets (2) are damaged. ↓ Replace air duct segment (12) and brackets (2). |
|

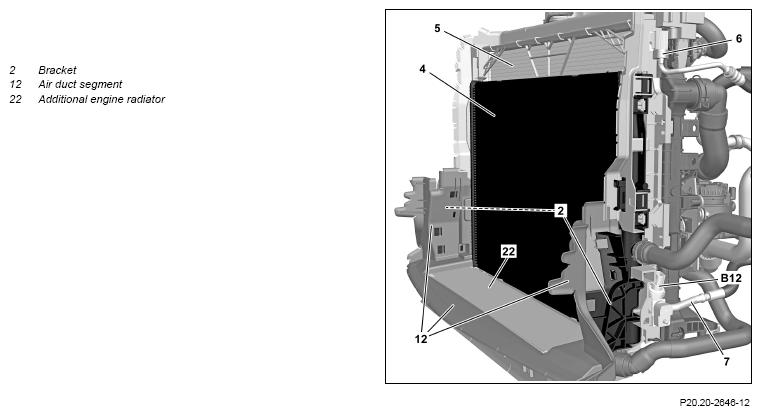

| 8 | Unclip brackets (2) at radiator package supporting frame and remove with air duct segment (12) in downward direction | When replacing brackets (2) and air duct segment (12). | |
| 9 | Install in the reverse order | ||
| 10 | Install center and front sections of lower engine compartment paneling | AR61.20-P-1105LW |
