Wiring Diagram For DC/DC Converter Control Unit - PE54.10-P-2105-97FCB

Model 253 (except 253.99) as of model year 2020 with code B01 (48V technology) Control unit N83/1

Code:  Designation:  Position:
A0 Use of wiring diagrams 40L
B95 Battery sensor 16L
CAN B Interior CAN 14K
Code L LEFT-HAND DRIVE 3E
Code L LEFT-HAND DRIVE 9E
Code L LEFT-HAND DRIVE 27G
Code R RIGHT-HAND DRIVE 3F
Code R RIGHT-HAND DRIVE 9F
Code R RIGHT-HAND DRIVE 27J
F1/3 Passenger-side A-pillar fuse box 10L
F1/3f313 Fuse 313 8L
F32/3 Engine compartment prefuse box 3L
F32/3f13 Fuse 13 1K
F63 Pyrofuse 12L
G1/3 48 V on-board electrical system battery 17C
LIN B15 Battery sensor LIN 15J
LIN B22 48 V on-board electrical system LIN 19C
N10/6 Front SAM control unit 15L
N83/1 DC/DC converter control unit 4A
N83/1 DC/DC converter control unit 12A
N83/1 DC/DC converter control unit 20A
N83/1 DC/DC converter control unit 23A
N83/1 DC/DC converter control unit 36A
W106/4 Left engine compartment circuit 41 ground point 4F
W106/5 Right engine compartment circuit 41 ground point 4E
W16 Major assembly compartment ground point 10F
W16/4 Right major assembly compartment ground point 10E
X30/32 Left interior CAN (CAN B) potential distributor electrical connector 14L
X30/33 Right interior CAN (CAN B) potential distributor electrical connector 14L

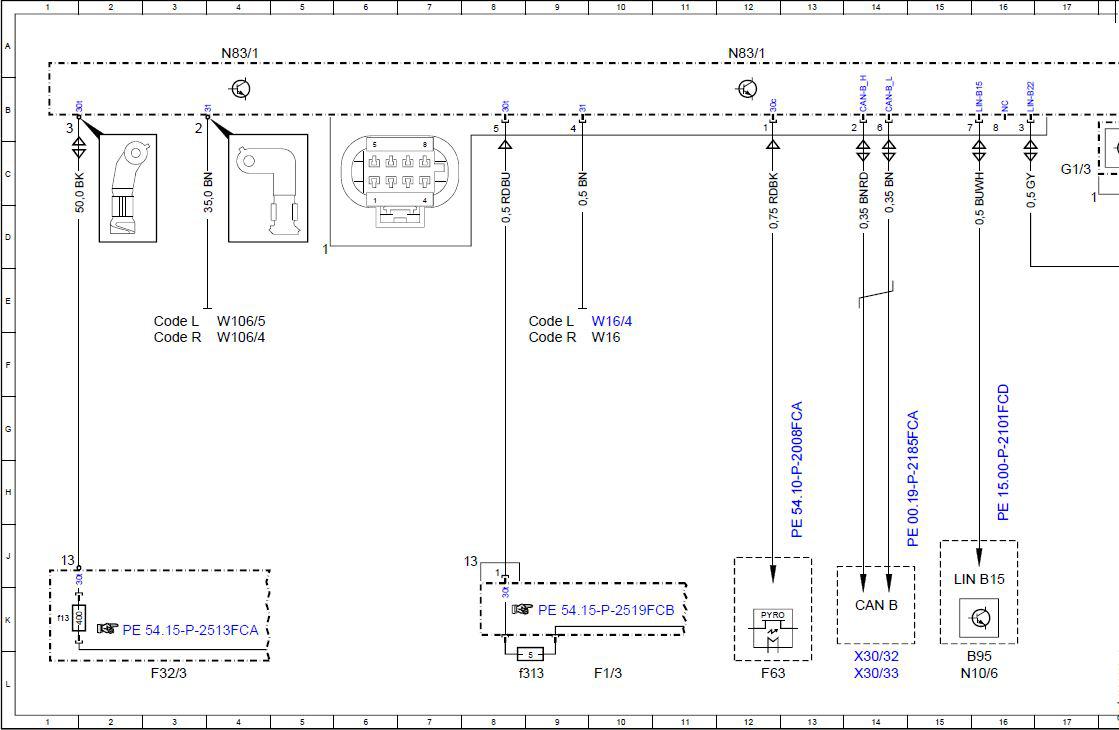

G00597856Courtesy of MERCEDES-BENZ USA

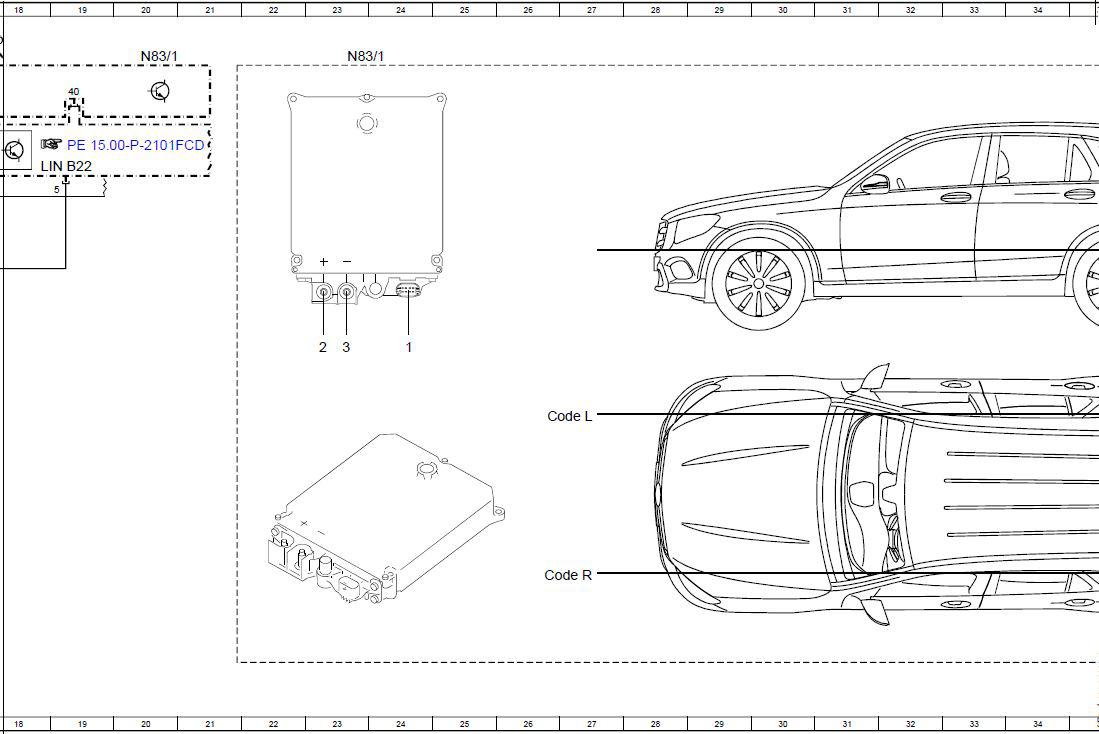

G00597857Courtesy of MERCEDES-BENZ USA

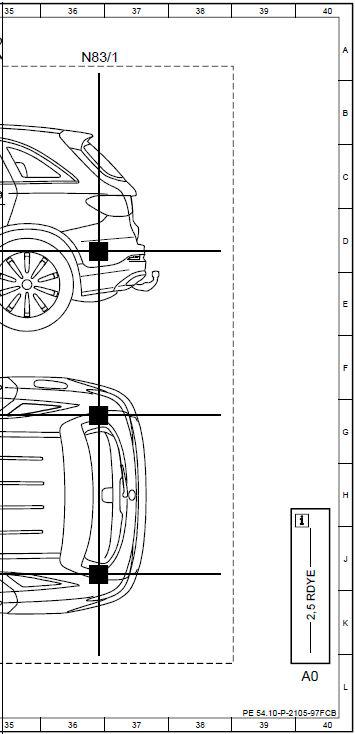

G00597858Courtesy of MERCEDES-BENZ USA
