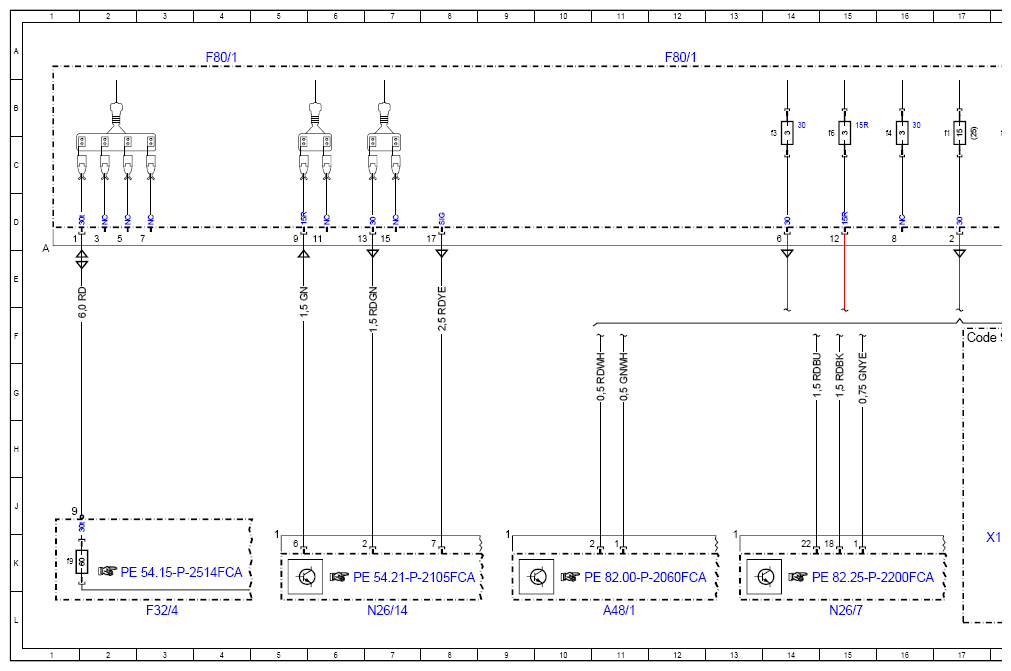

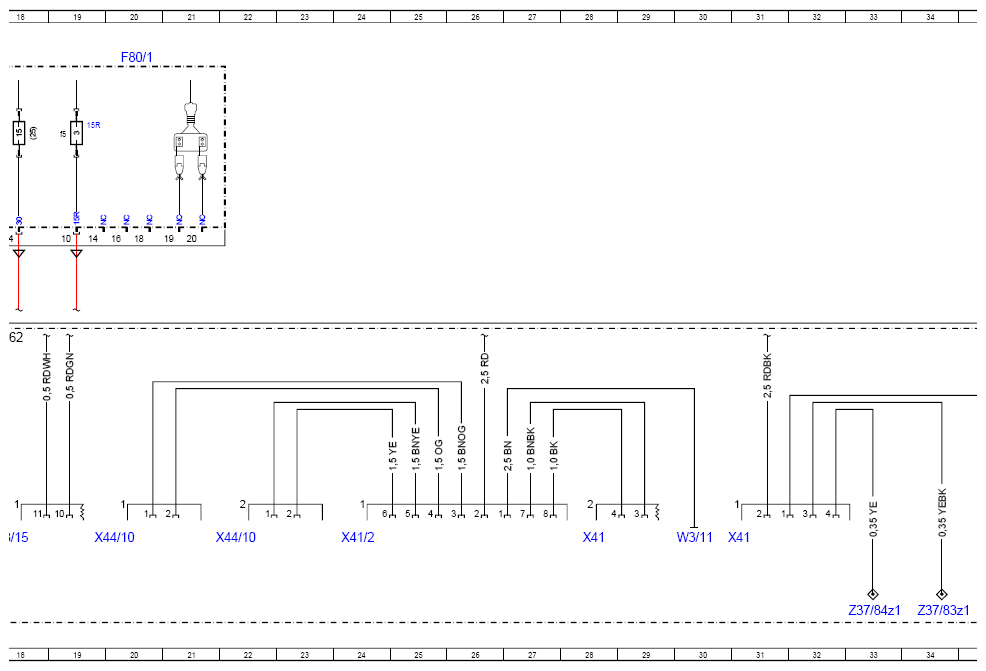

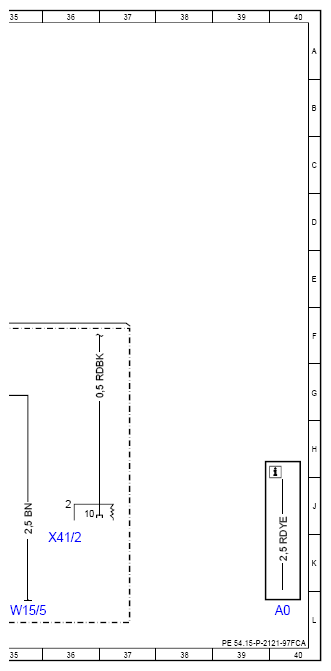

Special-Purpose Vehicle Fuse Block 1 Wiring Diagram - PE54.15-P-2121-97FCA
Model 253 (except 253.99) as of model year 2020 with code 970 (Police emergency vehicle) with code 974 (Preparation for fire service command vehicle) with code 975 (Preparation for emergency doctor vehicle) F80/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A48/1 | Special signal system operating unit | 11L |
| Code 962 | Hella roof attachment | 17F |
| F32/4 | Vehicle interior prefuse box | 3L |
| F32/4f9 | Fuse 9 | 1K |
| F80/1 | Special-purpose vehicle fuse block 1 | 4A |
| F80/1 | Special-purpose vehicle fuse block 1 | 12A |
| F80/1 | Special-purpose vehicle fuse block 1 | 20A |
| F80/1f1 | Fuse 1 | 17C |
| F80/1f2 | Fuse 2 | 18C |
| F80/1f3 | Fuse 3 | 14C |
| F80/1f4 | Fuse 4 | 16C |
| F80/1f5 | Fuse 5 | 19C |
| F80/1f6 | Fuse 6 | 15C |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 7L |
| N26/7 | Special signal system control unit | 15L |
| W15/5 | Left front footwell ground point | 35L |
| W3/11 | Left rear wheel well ground point | 30K |
| X18/15 | German Association of the Automotive Industry connecting point | 18K |
| X41 | Roof light bar separation point | 28K |
| X41 | Roof light bar separation point | 31K |
| X41/2 | Left and right roof light bar electrical connector | 24K |
| X41/2 | Left and right roof light bar electrical connector | 36K |
| X44/10 | Outside speaker electrical connector | 20K |
| X44/10 | Outside speaker electrical connector | 22K |
| Z37/83z1 | Multifunction CAN high connector sleeve | 34L |
| Z37/84z1 | Multifunction CAN low connector sleeve | 33L |
