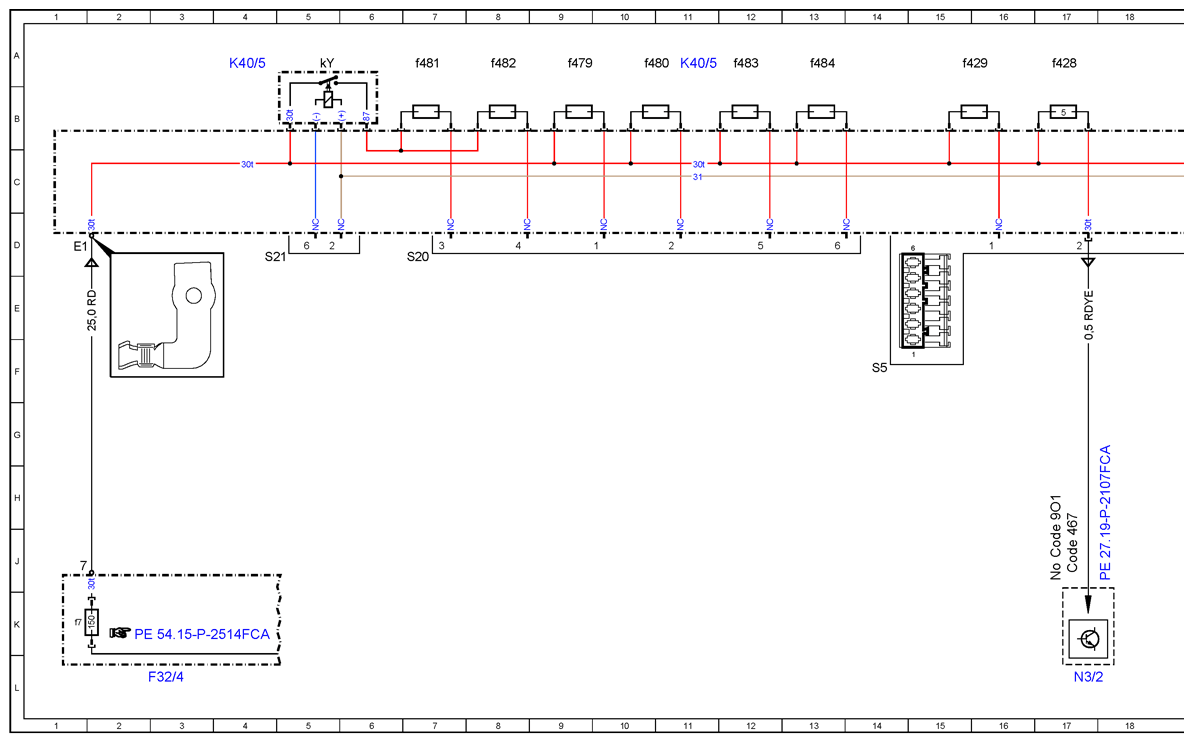

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97FCB
Model 253 (except 253.99) as of model year 2020 K40/5, sheet 2 Model 253.99 as of model year 2019 with code 9O1 (Fuel cell pre-installation) K40/5, sheet 2
| Code: | Designation: | Position: |
|---|---|---|

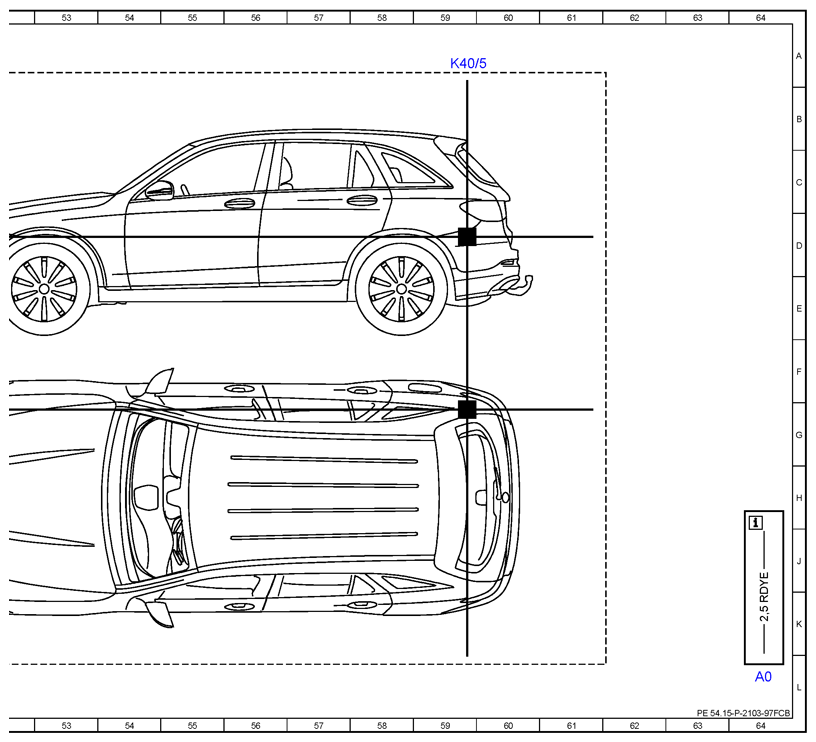

| A0 | Use of wiring diagrams | 64L |
| Code 467 | Electronic locking differential | 17J |
| Code 890 | EASY-PACK liftgate | 26J |
| Code 970 | Police emergency vehicles | 19J |
| Code 970 | Police emergency vehicles | 36J |
| Code 974 | Fire department lead emergency vehicle preinstallation | 37J |
| Code 974 | Fire department lead emergency vehicle preinstallation | 19J |
| Code 975 | Emergency physician vehicle preinstallation | 19J |
| Code 975 | Emergency physician vehicle preinstallation | 37J |
| Code 901 | Fuel cell retrofitting | 17J |
| Code 901 | Fuel cell retrofitting | 19J |
| Code 901 | Fuel cell retrofitting | 36J |
| Code 901 | Fuel cell retrofitting | 26J |
| F32/4 | Vehicle interior prefuse box | 3L |
| F32/4f7 | Fuse 7 | 1K |

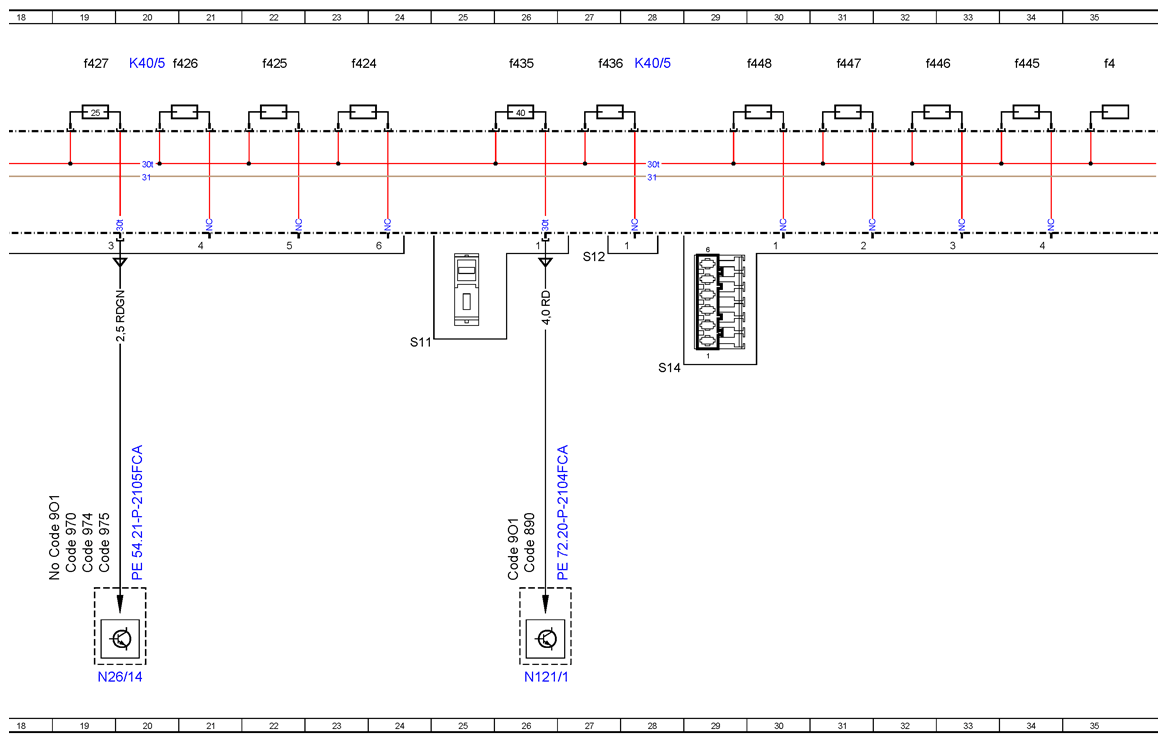

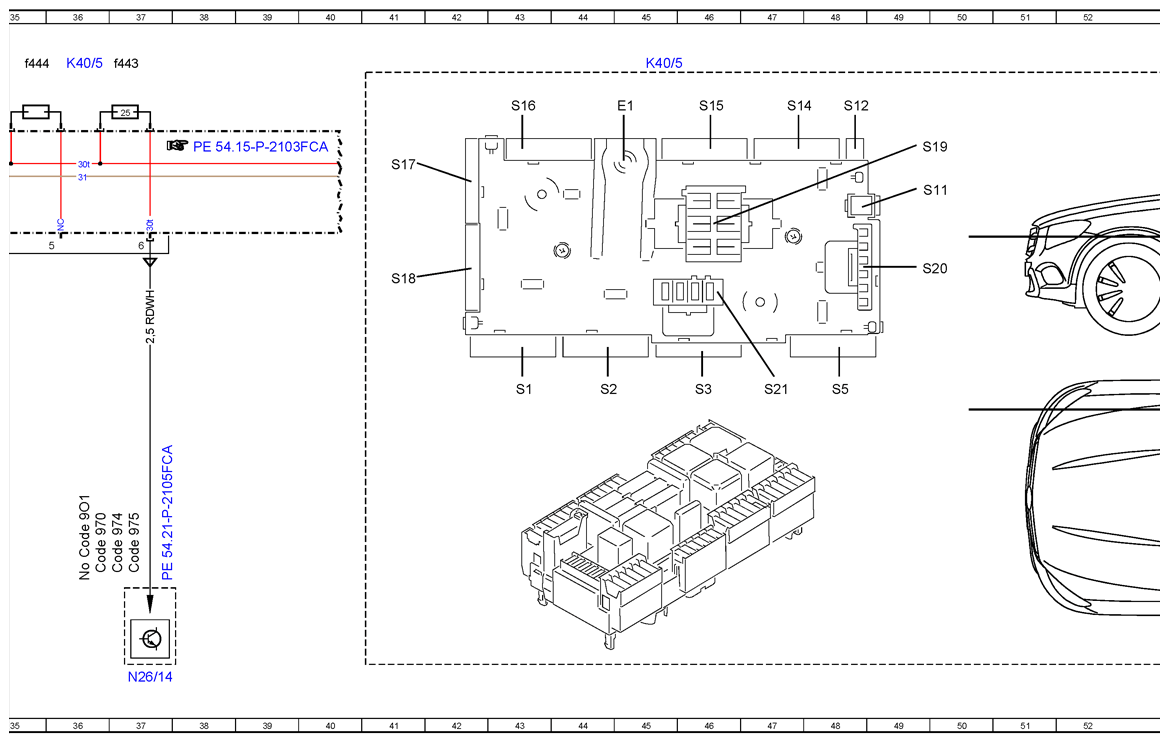

| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 11A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 36A |
| K40/5 | Rear fuse and relay module | 59A |
| K40/5 | Rear fuse and relay module | 45A |
| K40/5f424 | Fuse 424 | 23A |
| K40/5f425 | Fuse 425 | 22A |
| K40/5f426 | Fuse 426 | 20A |
| K40/5f427 | Fuse 427 | 19A |
| K40/5f428 | Fuse 428 | 17A |
| K40/5f429 | Fuse 429 | 15A |
| K40/5f435 | Fuse 435 | 26A |
| K40/5f436 | Fuse 436 | 27A |
| K40/5f443 | Fuse 443 | 37A |
| K40/5f444 | Fuse 444 | 35A |
| K40/5f445 | Fuse 445 | 34A |
| K40/5f446 | Fuse 446 | 32A |
| K40/5f447 | Fuse 447 | 31A |
| K40/5f448 | Fuse 448 | 30A |
| K40/5f479 | Fuse 479 | 9A |
| K40/5f480 | Fuse 480 | 10A |
| K40/5f481 | Fuse 481 | 7A |
| K40/5f482 | Fuse 482 | 8A |
| K40/5f483 | Fuse 483 | 12A |
| K40/5f484 | Fuse 484 | 13A |
| K40/5kY | Backup relay | 5A |
| N121/1 | Tailgate control control unit | 26L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 19L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 37L |
| N3/2 | Electronic differential control unit | 17L |
