Retrofit Wiring Harness For Mercedes-Benz Dashcam At Front - AZ54.71-P-0002-01LWG
Model 253
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A |
GROUND POINTS
| Number | Designation | Model 253 (except 253.99) | Model 253.99 | ||
|---|---|---|---|---|---|
| BA00.19-P-1028-01E | Left footwell ground point | W34 | Nm | 10 | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |

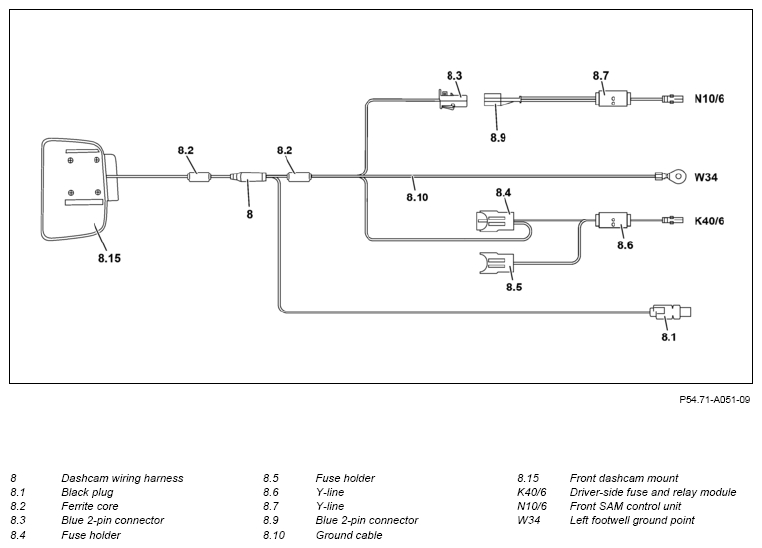

Connection scheme

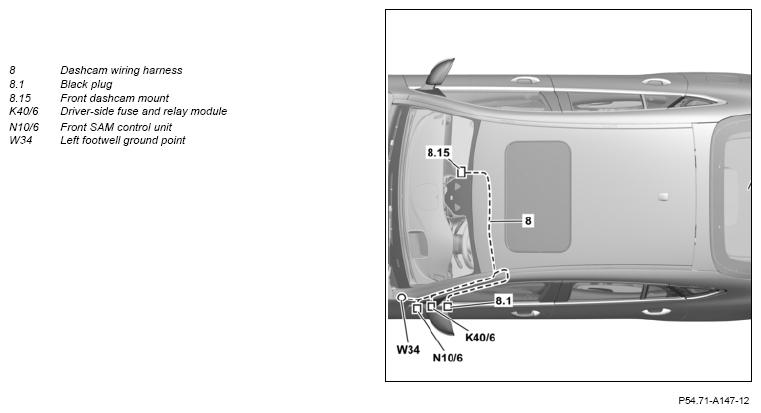

Routing diagram
- Route dashcam wiring harness (8) from front dashcam mount under roof lining to the left to the A-pillar.
- Fasten ferrite core (8.2) of dashcam wiring harness (8) using cable ties (arrows A) to overhead control panel mount (36).

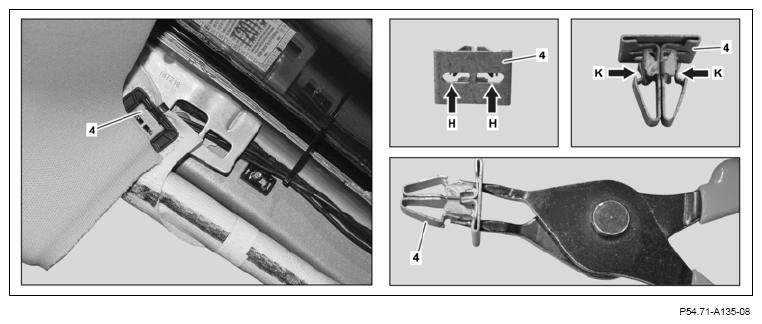

- Use pliers through the openings (arrows H) to press shackles (arrows K) together and remove mounting clamps (4) for window airbag from A-pillar at top.
- Route dashcam wiring harness (8) above window airbag (30).
- Route dashcam wiring harness (8) above window airbag (30) into footwell.
Route dashcam wiring harness (8) behind crossmember for instrument panel.
- Position window airbag shackle and attach mounting clamps (4) for window airbag to A-pillar at top.

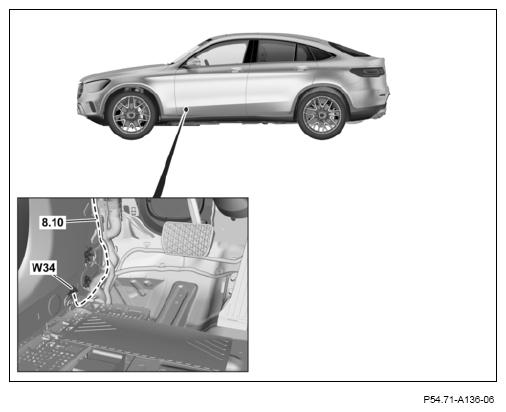

- Route ground line (8.10) of dashcam wiring harness to left footwell ground point (W34) and connect
.
- Remove violet coupling (MR2) from front SAM control unit (N10/6).
- Remove gray 21-pin connector insert from violet coupling (MR2).
- Remove line (20) from contact cavity "29" of gray 21-pin coupling insert (19).
The appropriate tool is available in the
basic wiring harness repair kit or the
supplementary passenger car wiring harness repair kit.
- Install line (20) in free contact cavity of blue 2-pin coupling (8.3) of dashcam wiring harness (8).
- Lock blue 2-pin coupling (8.3).
- Install line (8.8) of Y-line (8.7) into contact cavity "29" of gray 21-pin coupling insert (19).
- Install gray 21-pin coupling insert into violet connector (MR2).
- Attach violet coupling (MR2) to front SAM control unit (N10/6).
- Connect blue 2-pin coupling (8.3) of dashcam wiring harness (8) to blue 2-pin plug (8.9) of Y-line (8.7).
- Remove electrical fuse (29) from slot 207 (arrow B) of driver's side fuse and relay module (K40/6).
The electrical fuse (29) is reused.
The fuse rating of the electrical fuse (29) is 15 A.
- Release yellow fuse holder (24) at driver's side fuse and relay module (K40/6).
- Remove red/black line (25) from contact cavity "4" (arrow C) of yellow fuse holder (24).
The appropriate tool is available in the
basic wiring harness repair kit or the
supplementary passenger car wiring harness repair kit.
- Install red line (8.12) of Y-line (8.6) in contact cavity "4" (arrow C) of yellow fuse holder (24).
- Lock yellow fuse holder (24) at driver's side fuse and relay module (K40/6).
- Install removed red/black line (25) in free contact cavity of fuse holder (8.4) of Y-line (8.6).
- Install lock (8.13) in fuse holder (8.4) (arrow D).
- Install electrical fuse (29) in fuse holder (8.4).
The electrical fuse (29) was removed beforehand. The fuse rating of the electrical fuse (29) is 15 A.
- Put both fuse holders (8.4, 8.5) of dashcam wiring harness (8) together.
- Install electrical fuse (55) included in parts kit in slot 207 (arrow B) of driver's side fuse and relay module (K40/6).
The fuse rating of the electrical fuse (55) is 25 A.

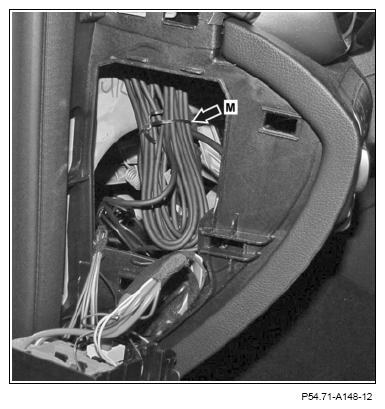

- Route branch-off line (arrow M) no longer required for dashcam at rear up to installation location of fuse and relay module on driver's side.
Route branch-off line along A-pillar in front of instrument panel crossmember.
- Insert black plug (8.1) of Dashcam wiring harness (8) into pocket (40) made of felt.
- Fasten pocket (40) to Dashcam wiring harness (8) using fabric tape (41).
- Tie branch-off line (arrow M) for rear dashcam and fix in place in installation space behind the driver's side fuse and relay module.
- Strap down excess lengths of Dashcam wiring harness in area of A-pillar.
- Finally, secure Dashcam wiring harness on roof lining using felt adhesive tape.
