Remove/Install Radar Sensors Control Unit - AR54.65-P-0040LW
Model 205.0/2/3/4
up to model year 2019
with code 233 (DISTRONIC PLUS)
Model 253
up to model year 2020
with code 233 (DISTRONIC PLUS)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission radar sensors control unit (N62/1). | When replacing the radar sensors control unit (N62/1). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove right front seat. | Model 205.0/2/3 up to model year 2019 with code 233 (DISTRONIC PLUS) Model 253 up to model year 2020 with code 233 (DISTRONIC PLUS) |
AR91.10-P-1000LW |
| Model 205.4 up to model year 2019 with code 233 (DISTRONIC PLUS) |
AR91.10-P-1000LWR | ||
| 3.1 | Remove right door sills. | Model 205.0/2 up to model year 2019 with code 233 (DISTRONIC PLUS) Model 253 up to model year 2020 with code 233 (DISTRONIC PLUS) |
AR68.30-P-4100LW |
| 3.2 | Remove right door sill. | Model 205.3/4 up to model year 2019 with code 233 (DISTRONIC PLUS) |
AR68.30-P-4100CLW |

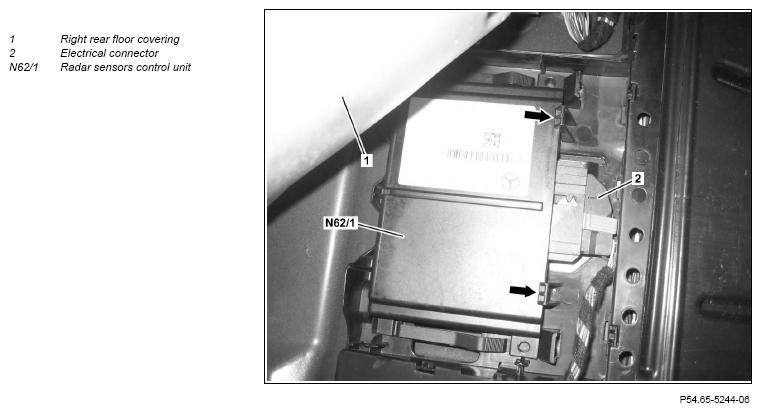

| 4 | Release rear right floor covering (1) and fold to one side. | ||
| 5 | Unclip radar sensors control unit (N62/1) at catch hooks (arrows) and lift up. | ||
| 6 | Release and disconnect electrical connector (2). | ||
| 7 | Remove radar sensors control unit (N62/1). | ||
| 8 | Install in the reverse order. |
