Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006LW
Model 205
up to model year 2019
with code 235 (Active Parking Assist with PARKTRONIC)
Model 253 (except 253.992/993)
with code 235 (Active Parking Assist with PARKTRONIC)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Commission parking system control unit (N62). | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove right front seat. | Model 205.0/1/2/3 up to model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) Model 253 (except 253.992/993) with code 235 (Active Parking Assist with PARKTRONIC) |
AR91.10-P-1000LW |
| Model 205.4 up to model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) |
AR91.10-P-1000LWR | ||
| 3.1 | Remove right door sills. | Model 205.0/1/2 up to model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) Model 253 (except 253.992/993) with code 235 (Active Parking Assist with PARKTRONIC) |
AR68.30-P-4100LW |
| 3.2 | Remove right door sill. | Model 205.3/4 up to model year 2019 with code 235 (Active Parking Assist with PARKTRONIC) |
AR68.30-P-4100CLW |

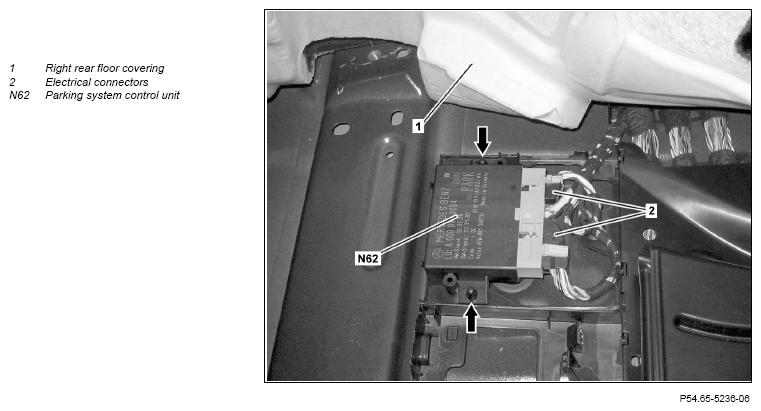

| 4 | Release rear right floor covering (1) and fold to one side. | ||
| 5 | Release and disconnect electrical connectors (2). | ||
| 6 | Unclip and remove parking system control unit (N62) from holders (arrows). | ||
| 7 | Install in the reverse order. |
