Remove/Install Front Central Operating Unit - AR54.21-P-0500LW
Model 205, 253
MODIFICATION NOTES
| 08.01.2018 | Perform initial startup of Audio/COMAND control panel (A40/9) added. | Operation step 1 |
Shown on model 205 with transmission 725 and with code 448 (Touchpad)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of Audio/COMAND control panel (A40/9) | When replacing the Audio/COMAND control panel (A40/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove center console cover (1) | Model 205 with transmission 722, 724, 725 Model 253 with transmission 724, 725 |
AR68.20-P-2350LW |
| Model 205, 253 with transmission 716 | AR68.20-P-2350LWA | ||
| 3 | Separate electrical connectors (2) | ||
| 4 | Disconnect electrical connector (3) | Model 205, 253 with code 448 (Touchpad) |
|
| 5 | Remove bolts (5) from stowage compartment | ||
| 6 | Raise stowage compartment and remove bolts (4) | ||
| 7 | Remove Audio/COMAND control panel (A40/9) from center console cover (1) in the direction of the arrow | ||
| 8 | Remove touch pad (A105) | Only when replacing Audio/COMAND control panel (A40/9). | |
| Model 205, 253 (except 253.992/993) with code 448 (Touchpad) except code 446 (Touchpad only) |
AR54.21-P-0503LW | ||
| 9 | Remove left lower control panel (N72/4) and right lower control panel (N72/5) | Only when replacing Audio/COMAND control panel (A40/9). | |

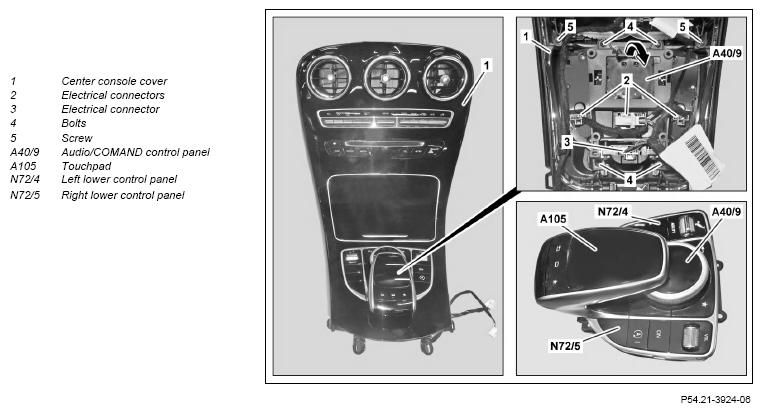

| Fig 1 | |||
| 10 | Install in the reverse order |
