Remove/Install Engine Sound Control Unit - AR54.21-P-0024LWX
Model 205, 253
with code B63 (Sporty engine sound)

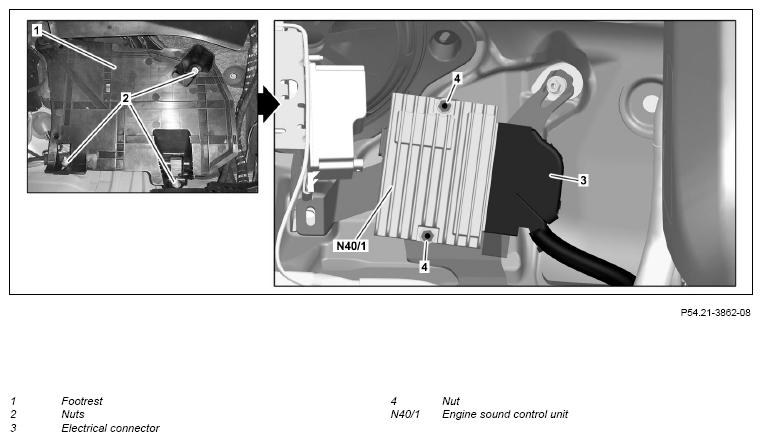

Shown on model 253
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of engine sound control unit (N40/1) | When replacing the engine sound control unit (N40/1). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove front floor covering in front passenger footwell | AR68.20-P-2070LW | |
| 4 | Unscrew nuts (2) and remove footrest (1) | ||
| 5 | Disconnect electrical connection (3) | ||
| 6 | Unscrew nuts (4), unhook engine sound control unit (N40/1) from bracket and remove | ||
| 7 | Install in the reverse order |
