Remove/Install Driver'S Side Fuse And Relay Module - AR54.15-P-0003LWX
Model 205, 253, 293
MODIFICATION NOTES
| 29.03.2019 | Special tool 115 589 03 59 00 added. | Operation step 2 |
Shown on model 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | Model 293 | AR54.10-P-0003EQ |
| Model 205, 253 | AR54.10-P-0003LW | ||

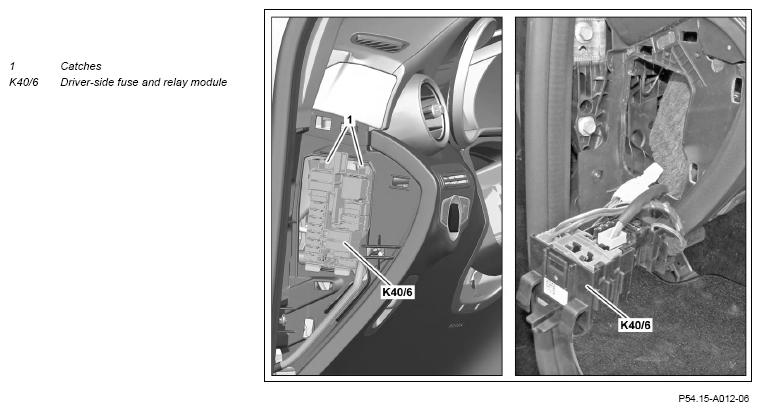

| 2 | Remove side instrument panel cover on driver's side. | Figure | |
| 3 | Release fuse and relay module on driver's side (K40/6) at catches (1) and remove. | ||
| 4 | Disconnect all electrical connectors from fuse and relay module on driver's side (K40/6). | ||
| 5 | Unclip all fuse holders from fuse and relay module on driver's side (K40/6) and place to one side. | ||
| 6 | Remove fuse and relay module on driver's side (K40/6). | ||
| 7 | Change fuses and relays. | When replacing fuse and relay module on driver's side (K40/6). | |
| Assignment of driver-side fuse and relay module | Model 253 (except 253.99) as of model year 2020 |
GF54.15-P-1256-49RFN | |
| Assignment of driver-side fuse and relay module | Model 205 as of model year 2019 Model 253.99 |
GF54.15-P-1256-49RFM | |
| Assignment of driver-side fuse and relay module | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 |
GF54.15-P-1256-49RF | |
| 8 | Install in the reverse order. |
