Remove/Install Backup Camera - AR54.65-P-0030LWX
Model 253.3
with code 218 (Rear view camera)
Model 253.3
with code 501 (360° camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 253.3 with code 218 (Rear view camera) with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) Model 253.3 with code 501 (360° camera) with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove center liftgate paneling | AR72.20-P-6618LWS | |

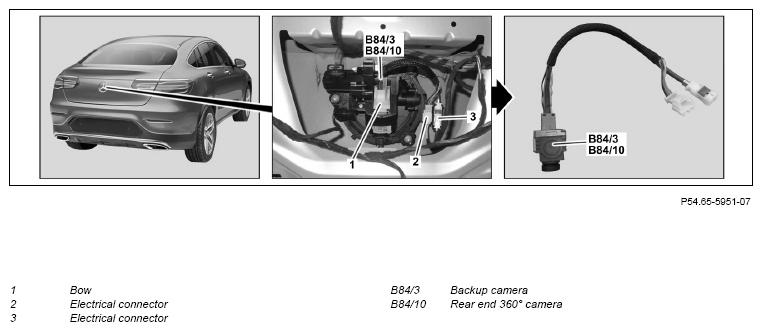

| 3 | Release bracket (1) | ||
| 4 | Release, disconnect and unclip electrical connection (2) | ||
| 5 | Release, disconnect and unclip electrical connection (3) | ||
| 6 | Pull reversing camera (B84/3) or rear 360° camera (B84/10) inwards | ||
| 7 | Install in the reverse order | ||
| 8 | Perform initial startup of reversing camera (B84/3) or rear 360° camera (B84/10) using diagnostic system | If reversing camera (B84/3) or rear 360° camera (B84/10) was replaced. | |
| AD00.00-P-2000-04B | |||
| Calibrate | |||
| 9 | Calibrate camera for rear 360° camera (B84/10) using diagnostic system | Model 253.3 with code 501 (360° camera) |
|
| AD00.00-P-2000-04B |
