Remove/Install Augmented Reality Camera - AR54.30-P-0004LWX
Model 253 (except 253.992/993)
as of model year 2020
with code 21U (Video recording function (Dashcam))
Model 253 (except 253.992/993)
as of model year 2020
with code U19 (Augmented reality)
Model 293
with code 21U (Video recording function (Dashcam))
Model 293
with code U19 (Augmented reality)
Shown on model 253 as of model year 2020 with code U19 (Augmented reality)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

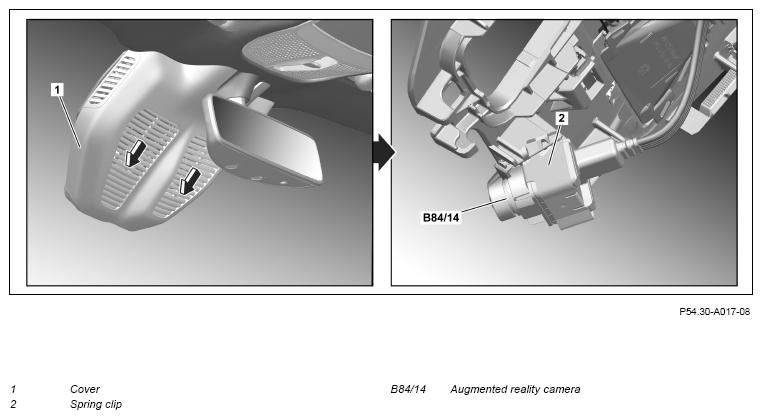

| 2 | Unclip and remove cover (1) (arrows). | ||
| 3 | Release and disconnect electrical connector from augmented reality camera (B84/14). | ||
| 4 | Unhook spring clip (2) and remove augmented reality camera (B84/14). | ||
| 5 | Install in the reverse order | ||
| 6 | Perform commissioning of augmented reality camera (B84/14). | If the augmented reality camera (B84/14) is replaced. | |
| Model 293 with code 21U (Video recording function (Dashcam)) |
AD00.00-P-2000-06FR | ||
| Model 293 with code U19 (Augmented reality) |
|||
| Model 253 (except 253.992/993) as of model year 2020 with code 21U (Video recording function (Dashcam)) Model 253 (except 253.992/993) as of model year 2020 with code U19 (Augmented reality) |
AD00.00-P-2000-04B | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 7 | Perform calibration of augmented reality camera (B84/14). | When reusing augmented reality camera (B84/14). | |
| Model 293 with code 21U (Video recording function (Dashcam)) |
AD00.00-P-2000-06FR | ||
| Model 293 with code U19 (Augmented reality) |
|||
| Model 253 (except 253.992/993) as of model year 2020 with code 21U (Video recording function (Dashcam)) |
AD00.00-P-2000-04B | ||
| Model 253 (except 253.992/993) as of model year 2020 with code U19 (Augmented reality) |
|||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B |
