Pulling Off Rubber Mount With Grooved Ball Bearing - AR41.10-P-0100-07LW

Model 205, 213, 238, 253

Fig 1: Identifying Puller, Two-Arm (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller Arms (129 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

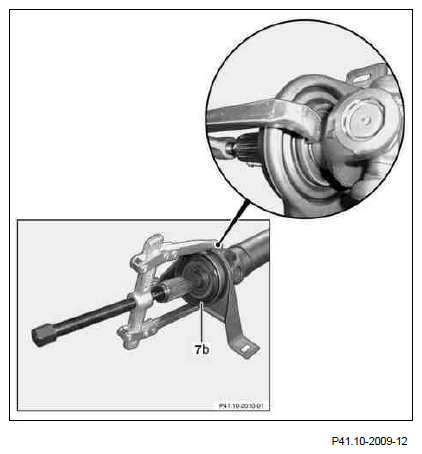

1. Position puller, two-way with puller arms (see enlarged detail).
2. Detach elastomer bearing (7b) together with grooved ball bearing from joint fork of rear propeller shaft.

Courtesy of MERCEDES-BENZ USA
