Notes On Installing Brake Hoses Topical Note - AH42.10-P-9406-01LWO
Model 205, 213, 238, 253, 257, 290
Only brake hoses approved by Mercedes-Benz may be installed. When connecting brake hoses, make sure that the brake hose is not installed twisted (free of twists). An adequate distance from other axle components must be guaranteed in all driving situations.
There are two elevated sections on the connector (arrow) of the brake hose which lock the brake hose in the multi-point profile of the bracket.
Exception:
Under certain driving conditions (e.g. maximum steering angle and compression/rebound conditions) unstressed contact of the brake hose with fixed components is permissible.
Ensure that the retaining spring (1) is correctly installed.
Model 205, 213, 238, 253, 257, 290
Front axle
Model 205.086/087/286/287/386/387
Rear axle

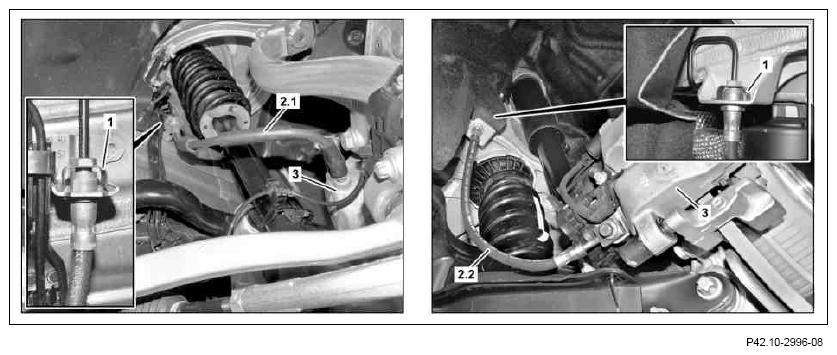

The brake hose (2.1) is bolted directly into the brake caliper (3) and it is not equipped with any seals.
Model 205 (except 205.086/087/286/287/386/387)
Rear axle
Model 213, 238, 253, 257, 290
Rear axle
The brake hose (2.2) is bolted on to the brake caliper (3) using a banjo bolt and sealing rings.
The banjo bolt's sealing rings may be used again.
