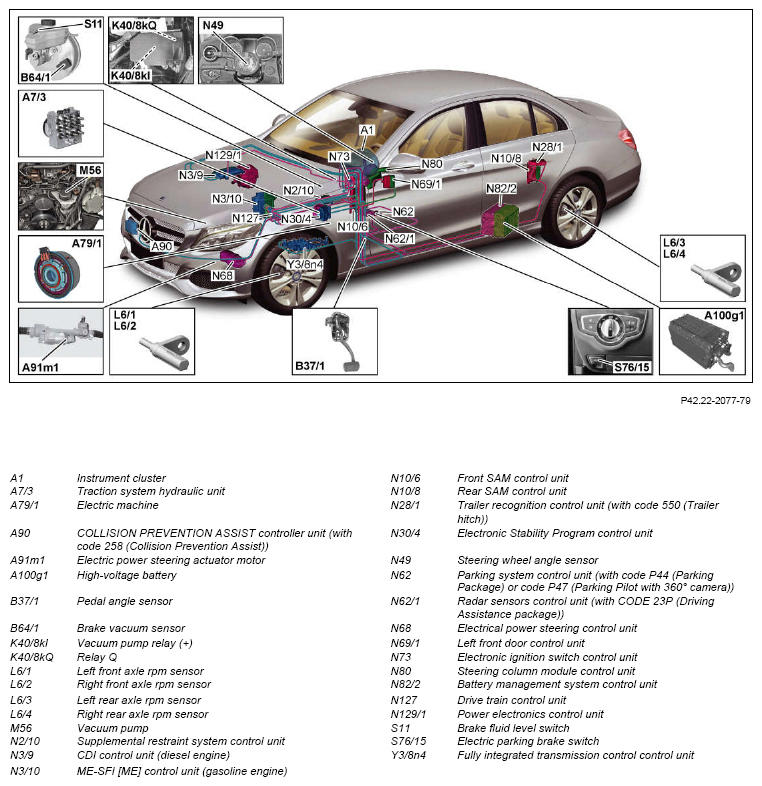

Overview Of System Components For Regenerative Braking System - GF42.22-P-9999RFH
Model 205.012/013/047/053/054/147/212/213/247/253, 253.311/354/911/954/99
Show on model 205.012
Model 205.013/047/053/054/147/213/253
as of model year 2019
with code 258 (Active Brake Assist System)
Model 253.311/911
as of model year 2020
with code 258 (Active Brake Assist System)
The Active Brake Assist controller unit (A108) is installed instead of the COLLISION PREVENTION ASSIST control unit.
Model 205.013/047/053/054/147/213/253
as of model year 2019
with code 23P (Driving Assistance package) Model 253.311/911
as of model year 2020
with code 23P (Driving Assistance package)
The Mercedes-Benz Intelligent Drive control unit (N62/4) is installed instead of the radar sensors control unit.
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 205.012/047/147/212/247 up to model year 2019 with code 258 (COLLISION PREVENTION ASSIST) Model 253.354/954/99 up to model year 2020 with code 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214RF | |
| Active Brake Assist controller unit, component description | Model 205.013/047/053/054/147/213/253 as of model year 2019 with code 258 (Active Brake Assist System) Model 253.311/911 as of model year 2020 with code 258 (Active Brake Assist System) A108 |
GF30.30-P-3222RFM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205.012/212 with engine 651.9 N3/9 | GF07.16-P-6000OLC | |
| Model 205.013/213, 253.311/911 with engine 654.9 N3/9 | GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205.047/053/054/147/247/253, 253.354/954 with engine 274.9 N3/10 | GF07.61-P-6000MRH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Component description for trailer recognition control unit | Model 205.012/013/047/053/054/147/212/213/247/253, 253.311/354/911/954/99 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 205.012/013/047/053/054/147/212/213/247/253, 253.354/954/99 N30/4 | GF42.45-P-5119RFH | |
| Parking system control unit component description | Model 205.012/047/147/212/247 up to model year 2019 with code 235 (Parking Pilot with PARKTRONIC) Model 253.354/954 up to model year 2020 with code 235 (Parking Pilot with PARKTRONIC) N62 |
GF54.65-P-5002RF | |
| Parking system control unit, component description | Model 205.013/047/053/054/147/213/253 as of model year 2019 with code P44 (Parking package) Model 205.013/047/053/054/147/213/253 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253.311/911 as of model year 2020 with code P44 (Parking package) Model 253.311/911 as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N62 |
GF54.65-P-5004RFM | |
| Component description for radar sensors control unit | Model 205.012/047/147/212/247 up to model year 2019 with code 23P (Driving Assistance package) Model 253.354/954/99 up to model year 2020 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 205.013/047/053/054/147/213/253 as of model year 2019 with code 23P (Driving Assistance package) Model 253.311/911 as of model year 2020 with code 23P (Driving Assistance package) N62/4 |
GF30.30-P-3312RFM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for the electronic ignition lock control unit | Model 205.012/047/147/212/247 up to model year 2019 Model 253.354/954 up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205.013/047/053/054/147/213/253 as of model year 2019 Model 253.311/911 as of model year 2020 Model 253.99 N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205.012/047/147/212/247 up to model year 2019 Model 253.354/954 up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Model 205.013/047/053/054/147/213/253 as of model year 2019 Model 253.311/911 as of model year 2020 Model 253.99 N80 |
GF54.21-P-6051RFM | ||
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.354/954 with engine 274.920 Model 205.053/253 with engine 274.920 N82/2 |
GF54.10-P-3012RFH | |
| Drivetrain control unit, component description | Model 205.047/053/054/147/247/253, 253.354/954 with engine 274.9 N127 | GF54.21-P-2141MRH | |
| Model 205.012/212 with engine 651.9 N127 | GF54.21-P-2141OLC | ||
| Model 205.013/213, 253.311/911 with engine 654.9 N127 | GF54.21-P-2141ORH | ||
| Component description for power electronics control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.354/954 with engine 274.920 Model 205.053/253 with engine 274.920 N129/1 |
GF08.20-P-1001RFH | |
| Component description for fully integrated transmission control unit | Model 205.012/047/147/212/247, 253.354/954 with transmission 724.2 Y3/8n4 | GF27.60-P-5165RFH | |
| Model 205.013/053/054/213/253 with transmission 725.0 (except 725.017) Y3/8n4 | GF27.60-P-5165ANG | ||
| Model 205.013/053/213/253 with transmission 725.017 | GF27.60-P-5165AHH | ||
| Model 253.311/911 with transmission 725.0 Y3/8n4 | GF27.60-P-5165ANI | ||
| Table of contents for function description of regenerative brake system | Model 205.012/013/047/053/054/147/212/213/247/253, 253.354/954/99 | GF42.22-P-0999RFH |
