Glue Door Sealing Frame To Front Door - AR72.10-P-2120-05LWA

Model 205.0

with code 700 (Technology Local Content China)

Model 205.1/2

Model 213

Model 253

Model 293

Fig 1: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA

1. Remove spacer strip (5.1) by approx. 2 cm at one end of new sealing frame (5)
2. Before affixing, remove adhesive protection film (5.3) from sealing frame (5) to a length of approx. 10 cm.

   Remove bonding protection foil (5.3) in increments according to assembly progress.

   Otherwise the bonding foil can stick unintentionally or be soiled.

   Courtesy of MERCEDES-BENZ USA

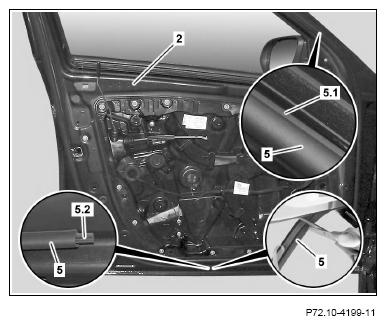

3. Affix sealing frame (5) starting from center of lower door edge.

   Spacer strip (5.1) of sealing frame (5) should over its entire length be in contact with door paneling, without gap.

4. Cut off sealing frame protrusion (5) at bottom edge of door and connect the two ends of the door frame seal (5).

   Cut off protrusion so that there is no gap between the two ends of sealing frame (5). Do not cut off protrusion at end of sealing frame (5) at which insert (5.2) protrudes.

   Courtesy of MERCEDES-BENZ USA

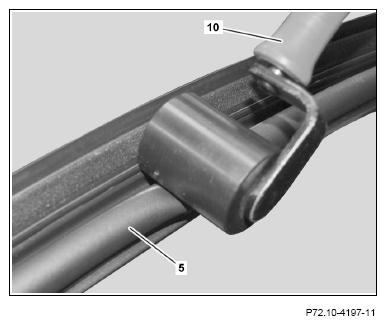

5. Firmly roll on sealing frame (5) with roller (10).
6. Fully remove spacer strip, starting from detached end, from sealing frame (5).
