Panoramic Sliding Roof - Clean And Lubricate Guide Mechanism - AP77.20-P-7732A

Model 118, 167, 177, 213, 238, 247, 253, 290, 292

with code 413 (Automatic panoramic sliding sunroof)

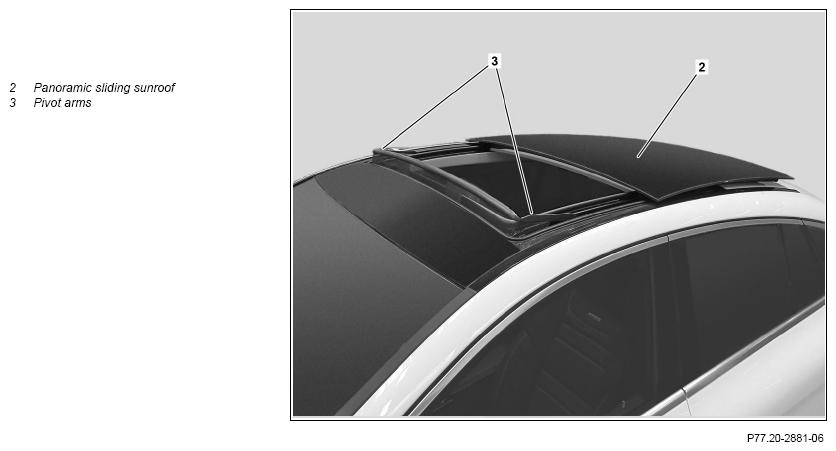

Shown on model 292 with code 413 (Panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

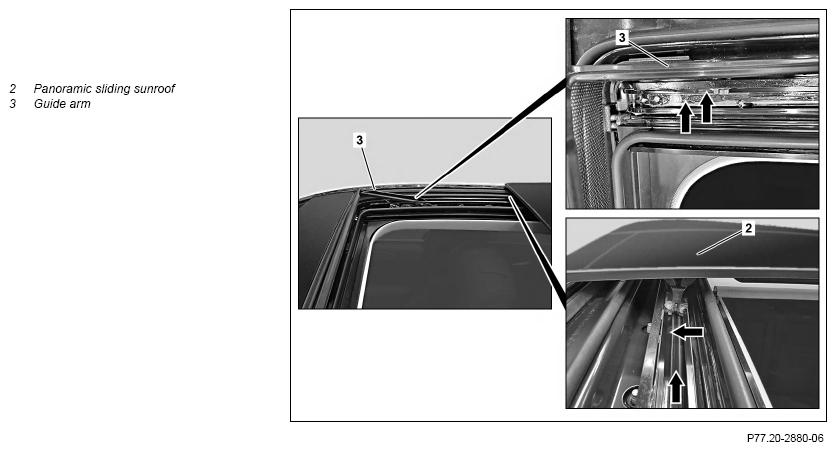

Shown on model 292 with code 413 (Panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Preparatory activity
1	Open panoramic sliding sunroof (2).
	Clean
2	Use rag to clean pivot arm (3) of wind deflector.
3	Clean entire length of guide rails (arrow) using a rag.
	Lubricate
4	Apply thin coating of grease to pivot arm (3) of wind deflector.	Synthetic grease, sliding roof 500 g, DB supply specification 6827.60	*BR00.45-Z-1004-06A
5	Apply coating of grease to contact surfaces along entire length of guide rails (arrows).	Synthetic grease, sliding roof 500 g, DB supply specification 6827.60	*BR00.45-Z-1004-06A
6	Perform function test of panoramic sliding sunroof (2).
7	Remove any excess grease.
	Finishing activity
8	Close panoramic sliding sunroof (2).
