Remove/Install Cover Below Instrument Panel (Right) - AR68.10-P-1520LW
Model 205
Model 253

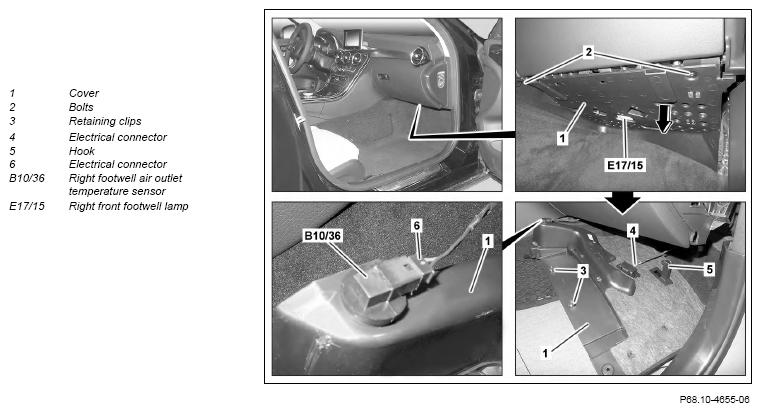

Shown on model 205 with code 876 (Interior lights package) and with code 494 (USA version)
| Remove/install | |||
| 1 | Adjust right front seat toward rear to end position | ||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Unscrew screws/bolts (2) | Only one bolt (2) is installed in the center. except code 494 (US version) Only the right bolt (2) is installed. |
|
| 4 | Unclip cover (1) from retaining clips (3), unhook from hook (5) and lower (arrow) | Fig 1 | |
| 5 | Disconnect electrical connector (6) | ||
| 6 | Disconnect electrical connector (4) | Model 205, 253 with code 876 (Interior Light package) |
|
| 7 | Take off cover (1) | ||
| 8 | Transfer right footwell vent air outlet temperature sensor (B10/36) | When replacing cover (1). | |
| 9 | Transfer right front footwell lamp (E17/15) | Model 205, 253 with code 876 (Interior Light package) When replacing cover (1). |
|
| 10 | Install in the reverse order |
