Remove/Install Cover Below Instrument Panel (Left) - AR68.10-P-1500LW

Model 205

Model 253

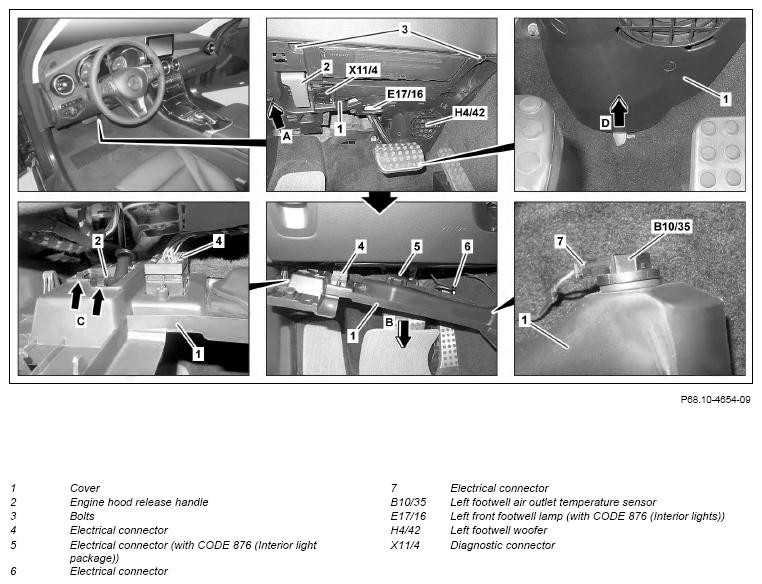

Shown on model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust left front seat toward rear to end position
2	Switch off ignition and remove transmitter key
3	Remove bolts (3)
4	Unlock cover (1) (arrow A) and lower (arrow B) until electrical connectors (4, 5, 6 and 7) are accessible	The number can vary according to the equipment.
5	Disconnect electrical connectors (4, 5, 6 and 7)	The number can vary according to the equipment.
6	Release engine hood release handle (2) (arrows C) and remove toward rear from cover (1)
7	Unhook retaining tab on cove (1) from floor covering (arrow D) and remove cover (1)
8	Transfer diagnostic connector (X11/4)	When replacing cover (1).
9	Transfer left footwell woofer (H4/42)	When replacing cover (1).
10	Transfer left footwell vent air outlet temperature sensor (B10/35)	When replacing cover (1).
11	Transfer left front footwell lamp (E17/16)	Model 205 with code 876 (Interior Light package) Model 253 with code 876 (Interior Light package) When replacing cover (1).
12	Install in the reverse order
