Remove/Install Mercedes Star - AR88.40-P-4050LW
Model 205, 213
with code 233 (DISTRONIC PLUS)
Model 205, 213
with code 239 (Active Distance Assist DISTRONIC)
Model 205, 213
with code 772 (AMG styling package - front spoiler, side skirts and rear apron)
Model 205, 213
with code P15 (AVANTGARDE exterior)
Model 205, 213
with code P76 (Standard exterior equipment and appointments)
Model 238, Model 253, Model 293
MODIFICATION NOTES
| 24.05.2017 | Disconnect electrical connector on Mercedes star included. | Operation steps 2, 3 |
| Remove | |||

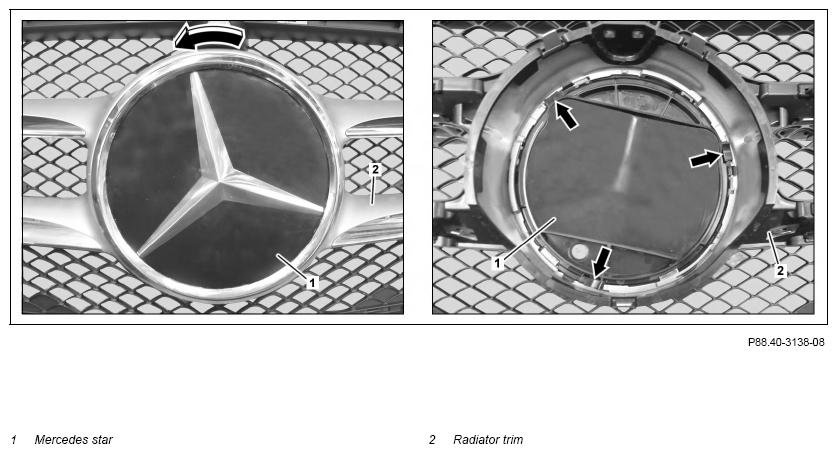

| 1 | Turn Mercedes star (1) approx. 15° in direction of arrow and remove from radiator grille (2) | ||
| 2 | Disconnect electrical connector on Mercedes star (1) | Model 205, Model 213, 238 with code 233 (DISTRONIC PLUS) Model 205, Model 213, 238 with code 239 (Active Distance Assist DISTRONIC) |
|
| Install | |||
| 3 | Connect electrical connector on Mercedes star (1) | Model 205, Model 213, 238 with code 233 (DISTRONIC PLUS) Model 205, Model 213, 238 with code 239 (Active Distance Assist DISTRONIC) |
|
| 4 | Insert Mercedes star (1) into radiator grille (2) with catch hooks (arrows) as shown and turn approx. 15° in the opposite direction to the arrow |
