Remove/Install Trunk Lid/Tailgate Control Warning Buzzer - AR72.20-P-3610LWT
Model 205.2
with code 890 (EASY-PACK-tailgate)
Model 213.2
with code 890 (EASY-PACK-tailgate)
Model 253, 293
with code 890 (EASY-PACK-tailgate)
Shown on MODEL 205.2

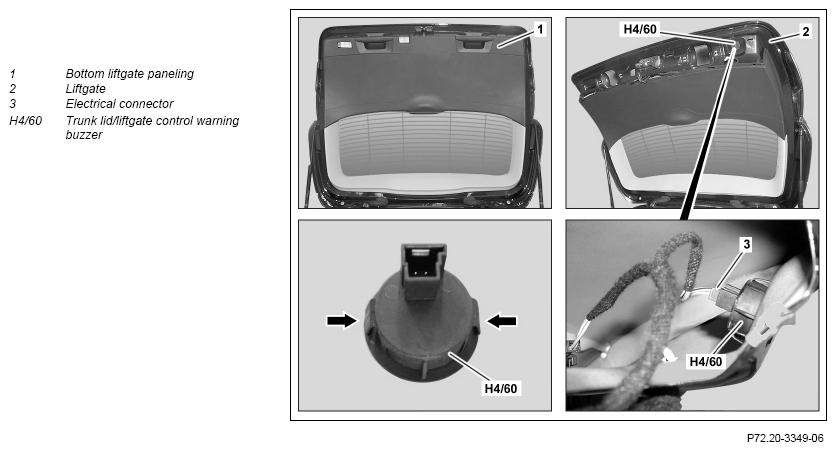

Fig 1: Trunk Lid/liftgate Control Warning Buzzer Components Location - Model 253 with code 890 (EASY-PACK-tailgate); Shown on model 205.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove bottom liftgate trim (1). | Model 293 with code 890 (EASY-PACK-tailgate) |
AR72.20-P-6617EQ |
| Model 205.2 with code 890 (EASY-PACK-tailgate) |
AR72.20-P-6617LWS | ||
| Model 213.2 with code 890 (EASY-PACK-tailgate) Model 253 with code 890 (EASY-PACK-tailgate) with code 890 (EASY-PACK-tailgate) The trunk lid/liftgate control warning buzzer (H4/60) is located on the left side of the liftgate (2). |
|||
| 2 | Disconnect electrical connector (3). | ||
| 3 | Press together catch hooks (arrows) and remove trunk lid/liftgate control warning buzzer (H4/60) from the liftgate (2). | with code 890 (EASY-PACK-tailgate) When removing trunk lid/liftgate control warning buzzer (H4/60) it is necessary to loosen the center liftgate paneling. |
|
| 4 | Install in the reverse order. |
