Remove/Install Sealing For Crank Window On Front Door - AR72.10-P-1905LW

Model 205.0/1/2

Model 213

Model 253

Model 293

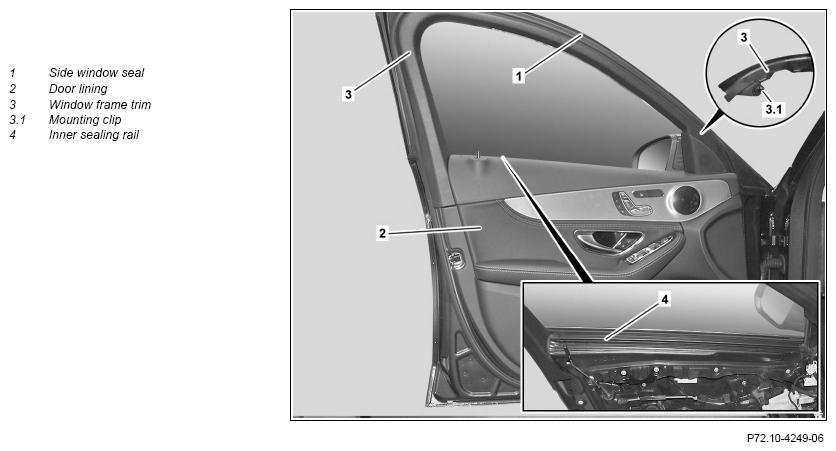

Shown on model 205

Courtesy of MERCEDES-BENZ USA

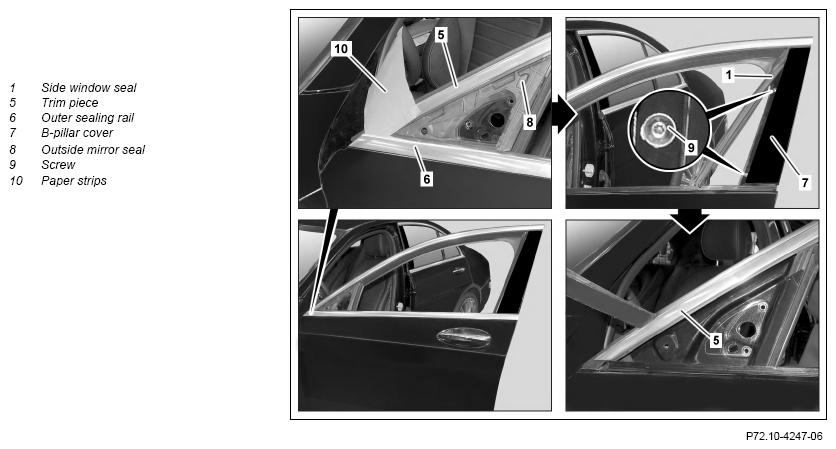

Shown on model 205.0 with code P15 (AVANTGARDE Exterieur)

Courtesy of MERCEDES-BENZ USA

Shown on model 205 with code P15 (AVANTGARDE exterior)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Remove door lining (2) at front door.		AR72.10-P-1000LW
2	Remove trim of window frame (3).	Window frame lining (3) is secured in a positive-locking manner with window frame and also clipped in area of mirror triangle into window frame with a retaining clip (3.1).
3	Remove inner sealing rail (4).	Carefully lift inner sealing frame (4) out of fold of inner door panel. Inner sealing frame (4) can otherwise deform and must be replaced.
		Long wedge	Fig 1
4	Remove outside mirror.		AR88.70-P-9000LW
5	Insert paper tape (10) between outer sealing rail (6) and trim element (5).	Model 205.0/1/2, 213, 253 with code P55 (Night package) Model 205.0/1/2, 213 with code P15 (AVANTGARDE exterior) Model 205.0/1/2, 213 with code P23 (EXCLUSIVE exterior) Model 205.0/1/2, 213 with code P31 (AMG Line exterior) Model 205.0/1/2 with code P90 (AMG exterior) Model 213 with code 700 (Technology Local Content China) Model 253 with code 900 (Chrome package) Model 293 Paper strips (10) are intended to protect the trim piece (5). Trim element (5) can otherwise be scratched.
6	Remove outer sealing rail (6) starting at installation location of outside mirror.	Carefully lift out outer sealing rail (6) from fold of inner door panel with aid of a base. Otherwise the outer sealing rail (6) can deform or the paint be scratched.
		Long wedge	Fig 1
7	Remove outside mirror seal (8).
8	Remove side window seal (1) in area of B-pillar cover (7).
9	Unscrew screws (9) of B-pillar cover (7).
10	Remove B-pillar cover (7).
11	Detach trim element (5) starting at installation location of outside mirror and remove towards rear.	Model 205.0/1/2, 213, 253 with code P55 (Night package) Model 205.0/1/2, 213 with code P15 (AVANTGARDE exterior) Model 205.0/1/2, 213 with code P23 (EXCLUSIVE exterior) Model 205.0/1/2, 213 with code P31 (AMG Line exterior) Model 205.0/1/2 with code P90 (AMG exterior) Model 213 with code 700 (Technology Local Content China) Model 253 with code 900 (Chrome package) Model 293 Carefully lift out trim element (5). Trim element (5) can otherwise become bent and must be replaced.
		Long wedge	Fig 1
12	Remove side window seal (1) in area of outside mirror installation location.
13	Remove side window seal (1) from window frame.
	Install
14	Connect electrical wiring harness of removed door lining (2) to left front door control unit or right front door control unit.
15	Raise side window to center position.

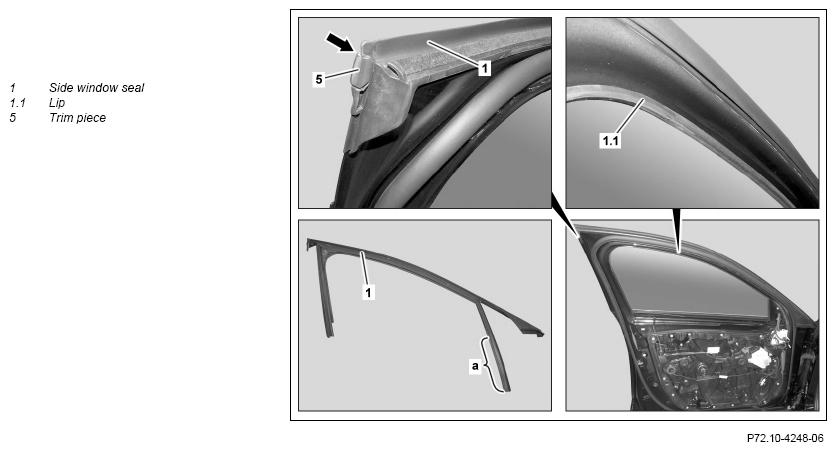

16	Wet side window seal (1) in assembly area (a) with soapy water.
17	Insert front end of side window seal (1) into window guide rail and push downward.	Simultaneously move side window down in area of outside mirror. Roll down side window to pull down side window seal (1) thus facilitating assembly.
18	Disconnect electrical wiring harness of removed door lining (2) at left front door control unit or right front door control unit.	Side window must be in lower-most position.
19	Pull side window seal (1) upwards again until correct installation position is reached.	Ensure side window seal (1) is correctly seated in window guide rail.
20	Wet side window seal (1) in assembly area of window frame with lubricant.	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
21	Install side window seal (1) in window frame except in area of B-pillar cover (7).	Ensure that sealing lip (1.1) is seated correctly on window frame.
22	Install B-pillar cover (7).
23	Tighten screws (9) of B-pillar cover (7).
24	Install side window seal (1) in area of B-pillar cover (7).
	Check
25	Check installation position of side window seal (1).	If a problem arises ↓ Rectify the installation position.
26	Wet web of trim element (5) and side window seal (1) with lubricant.	Model 205.0/1/2, 213, 253 with code P55 (Night package) Model 205.0/1/2, 213 with code P15 (AVANTGARDE exterior) Model 205.0/1/2, 213 with code P23 (EXCLUSIVE exterior) Model 205.0/1/2, 213 with code P31 (AMG Line exterior) Model 205.0/1/2 with code P90 (Sports styling package) Model 213 with code 700 (Technology Local Content China) Model 253 with code 900 (Chrome package) Model 293
		Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
27	Install trim element (5) starting at B-pillar cover (7). i4	Model 205.0/1/2, 213, 253 with code P55 (Night package) Model 205.0/1/2, 213 with code P15 (AVANTGARDE exterior) Model 205.0/1/2, 213 with code P23 (EXCLUSIVE exterior) Model 205.0/1/2, 213 with code P31 (AMG Line exterior) Model 205.0/1/2 with code P90 (Sports styling package) Model 213 with code 700 (Technology Local Content China) Model 253 with code 900 (Chrome package) Model 293 The trim piece (5) is connected positively to the side window seal (1) in the area of the B-pillar cover (7) (arrow).
28	Install outside mirror seal (8).
29	Secure paper tape (10) on trim element (5).	Model 205.0/1/2, 213, 253 with code P55 (Night package) Model 205.0/1/2, 213 with code P15 (AVANTGARDE exterior) Model 205.0/1/2, 213 with code P23 (EXCLUSIVE exterior) Model 205.0/1/2, 213 with code P31 (AMG Line exterior) Model 205.0/1/2 with code P90 (Sports styling package) Model 213 with code 700 (Technology Local Content China) Model 253 with code 900 (Chrome package) Model 293 Paper strips (10) are intended to protect the trim piece (5). Otherwise the trim piece (5) can be scratched when installing the outer sealing rail (6).
30	Wet rubber seal of outer sealing rail (6) with lubricant.	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
31	Install outer sealing rail (6).	The outer sealing rail (6) must be flush with the edge of the rear door paneling.
32	Install outside mirror.		AR88.70-P-9000LW
33	Wet rubber seal of inner sealing rail (4) with lubricant.	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
34	Install inner sealing rail (4).
35	Install trim of window frame (3).
36	Install door lining (2) at front door.		AR72.10-P-1000LW

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
