Remove/Install Front Door Armrest - AR72.10-P-1035LW

Model 205, 253

Courtesy of MERCEDES-BENZ USA

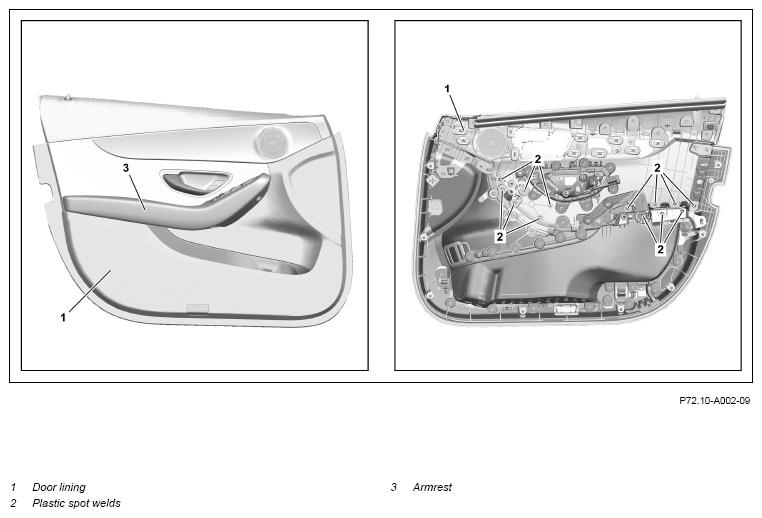

Shown on model 205.0 on left door lining (1)

	Remove/install
1	Remove door lining (1).		AR72.10-P-1000LW
2.1	Drill plastic spot welds (2) and remove armrest (3)	If the armrest (3) is attached using plastic spot welds (2). Replace drilled plastic spot welds (2) with screws. Attach armrest (3) using screws from the repair kit.	AR72.00-P-0001-01LW
2.2	Remove screws and take off the armrest (3).	If the armrest (3) is attached using screws.
3	Install in the reverse order
