Remove/Install Fixed Window In Rear Door - AR72.12-P-1970LWS

Model 205.0/1/2

Model 213.0/2

Model 253

Model 293

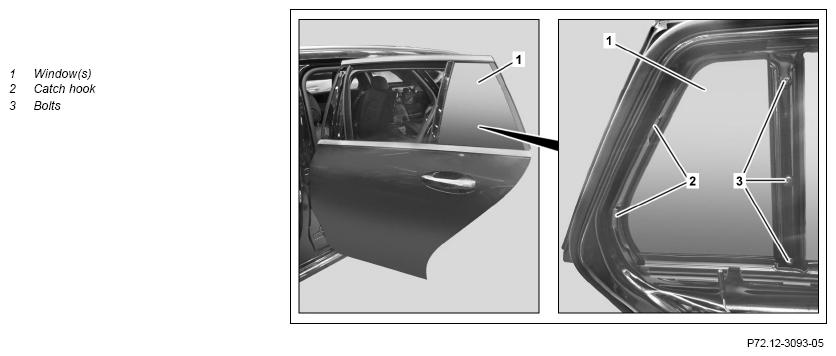

Shown on MODEL 205.2

G12941078

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove seal for side window at rear door.		AR72.12-P-1911LW
2	Remove screw/bolts (3).	Model 293 Only 2 screws (3) are installed.
3	Unclip window (1) from catch hooks (2) and remove.	Carefully remove window (1). Otherwise parts of the rear door and window (1) can be damaged. : Ensure that window (1) is seated correctly.
4	Install in the reverse order.
