Remove/Install Door Interior Actuating Mechanism On Rear Side Door - AR72.12-P-2310LW

Model 205.0/1/2, 253

Courtesy of MERCEDES-BENZ USA

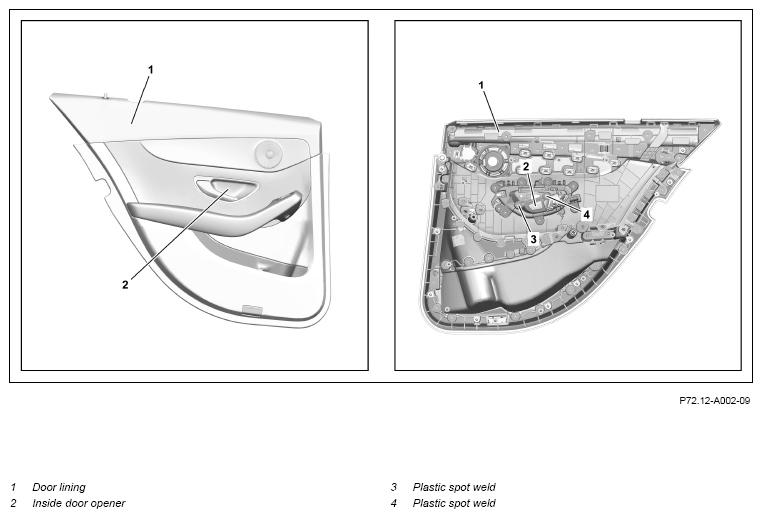

Shown on model 205.014 on left door lining (1)

	Remove/install
1	Remove door lining (1).		AR72.12-P-1010LW
2.1	Drill plastic spot welds (3, 4) and remove inside door opener (2).	If the inside door opener (2) is attached using plastic spot welds (3, 4). Replace drilled plastic spot welds (3, 4) with screws. Attach the inside door opener (2) using screws from the repair kit. An appropriate washer for the screw must be placed on the plastic spot weld.(4).	AR72.00-P-0001-01LW
2.2	Remove screws and take off the inside door opener (2).	If the inside door opener (2) is attached using screws.
3	Install in the reverse order
