Remove/Install Armrest On Rear Door - AR72.12-P-1020LW

Model 205.0/1/2, 253

Courtesy of MERCEDES-BENZ USA

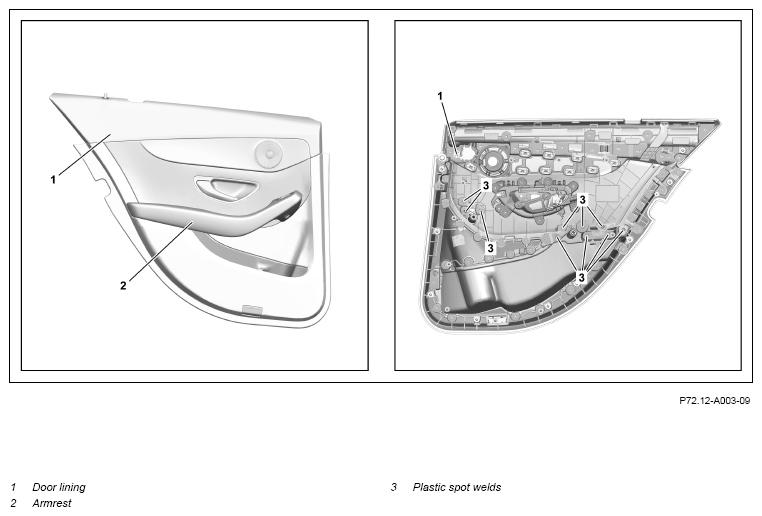

Shown on model 205.0 on left door lining (1)

	Remove/install
1	Remove door lining (1).		AR72.12-P-1010LW
2.1	Drill plastic spot welds (3) and remove armrest (2).	If the armrest (2) is fastened with plastic spot welds (3). Replace drilled plastic spot welds (3) with bolts. Fasten armrest (2) with the screws from the repair kit.	AR72.00-P-0001-01LW
2.2	Remove screws and remove armrest (2).	If the armrest (2) is fastened with screws.
3	Install in the reverse order
