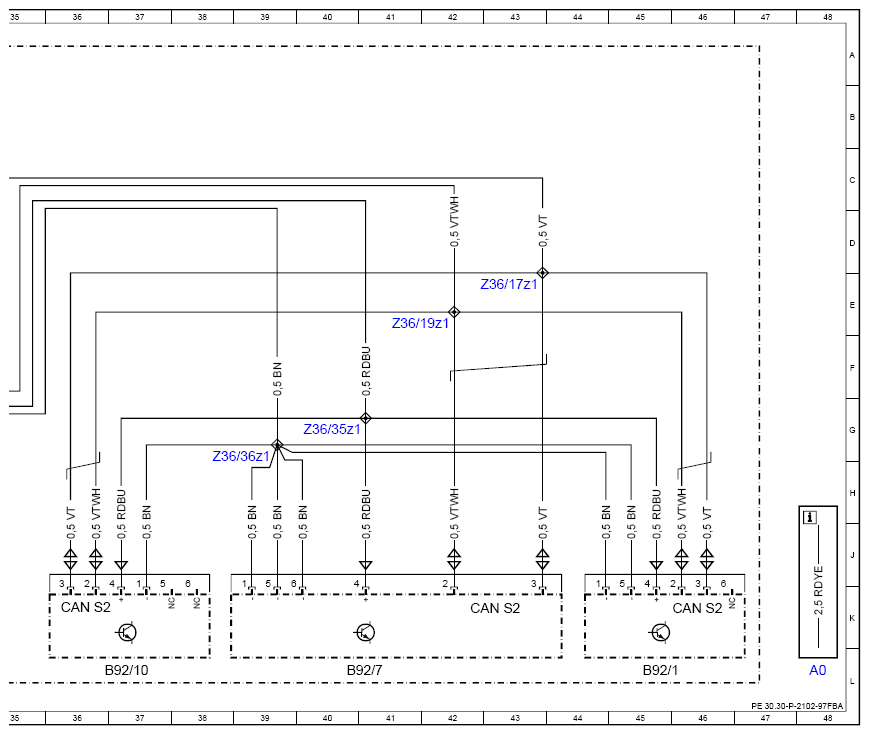

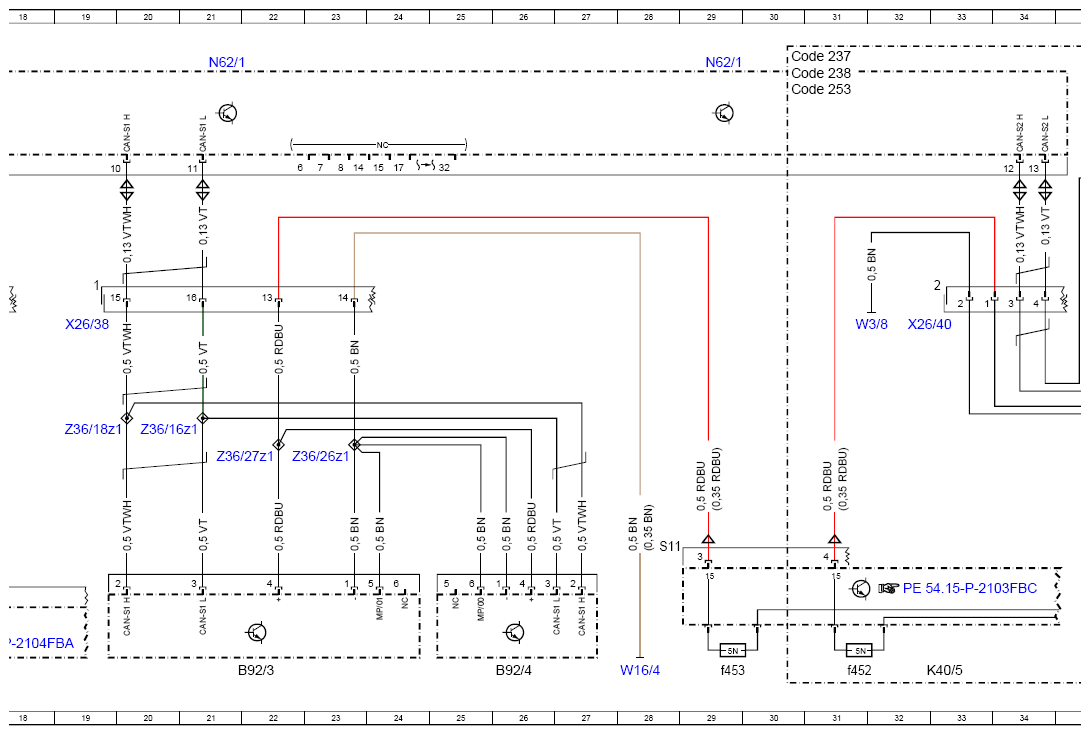

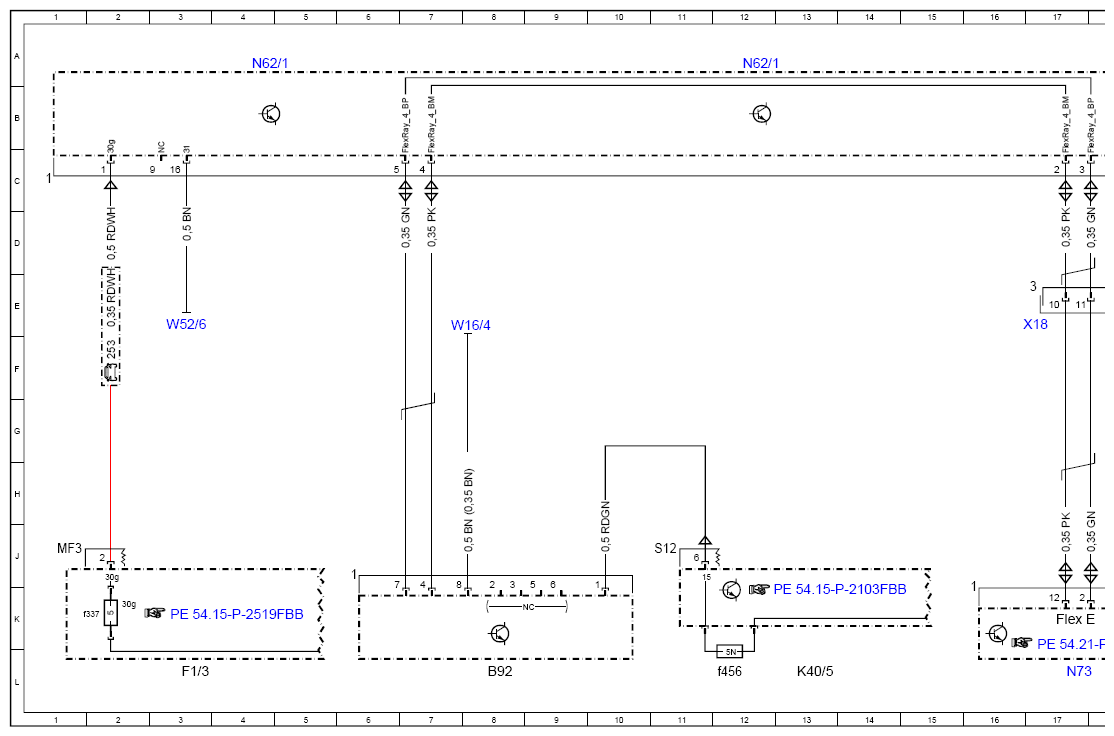

Wiring Diagram For The Radar Sensors Control Unit - PE30.30-P-2102-97FBA
Engine 177, 274, 276, 626, 651 in model 205 up to model year 2019 with code 233 (DISTRONIC PLUS) Control unit N62/1 Engine 177, 274, 276, 642, 651 in model 253 (except 253.99) up to model year 2020 with code 233 (DISTRONIC PLUS) Control unit N62/1
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 48L |
| B92 | Front long-range radar sensor | 8L |
| B92/1 | Center rear bumper radar sensor | 45L |
| B92/10 | Left outer rear bumper radar sensor | 37L |
| B92/3 | Left front bumper radar sensor | 22L |
| B92/4 | Right front bumper radar sensor | 26L |
| B92/7 | Right outer rear bumper radar sensor | 40L |
| CAN S2 | Radar CAN 2 | 46K |
| CAN S2 | Radar CAN 2 | 43K |
| CAN S2 | Radar CAN 2 | 36K |
| Code 237 | Active Blind Spot Assist | 30A |
| Code 238 | Active Lane Keeping Assist | 30A |
| Code 253 | Rear-end collision warning and protection system | 30B |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f337 | Fuse 337 | 1K |
| Flex E | Chassis FlexRay | 17K |
| K40/5 | Rear fuse and relay module | 13L |
| K40/5 | Rear fuse and relay module | 33L |
| K40/5f452 | Fuse 452 | 31L |
| K40/5f453 | Fuse 453 | 29L |
| K40/5f456 | Fuse 456 | 12L |
| N62/1 | Radar sensors control unit | 4A |
| N62/1 | Radar sensors control unit | 12A |
| N62/1 | Radar sensors control unit | 21A |
| N62/1 | Radar sensors control unit | 29A |
| N73 | Electronic ignition switch control unit | 17L |
| W16/4 | Right major assembly compartment ground point | 28L |
| W16/4 | Right major assembly compartment ground point | 8E |
| W3/8 | Right rear wheel well ground point | 31E |
| W52/6 | Right center longitudinal member ground point | 3E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 17E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 19E |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 33E |
| Z36/16z1 | Front sensor CAN (low) connector sleeve | 20G |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 43E |
| Z36/18z1 | Front sensor CAN (high) connector sleeve | 19G |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 41E |
| Z36/26z1 | DISTRONIC PLUS front ground line connector sleeve | 23G |
| Z36/27z1 | DISTRONIC PLUS front power supply connector sleeve | 22G |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 40G |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 39G |
