Remove/Install Accelerator Pedal - AR30.12-P-1321LF

Model 205

Model 217

Model 222

Model 253

Model 293

Shown on model 222

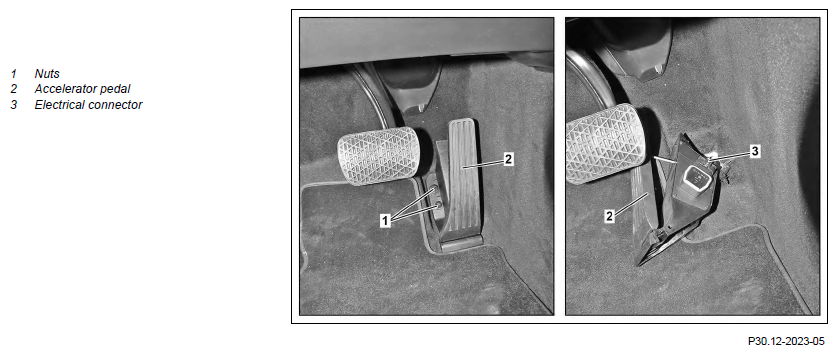

Fig 1: Accelerator Pedal Components Location - Model 253; Shown on Model 222

Courtesy of MERCEDES-BENZ USA

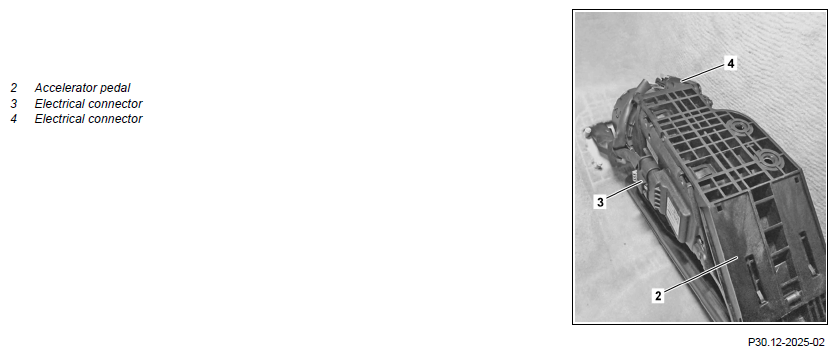

Shown on model 205 (with code ME05 (HYBRID DRIVE 80KW-VARIANT (INCLUDING PLUG-IN)))

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Switch off ignition.
2	Unscrew nuts (1), remove accelerator pedal (2) and place to one side.	: Ensure that the wiring harness is not pinched. Otherwise malfunctions of the accelerator pedal (2) can occur.
		Nut, accelerator pedal to firewall	*BA30.20-P-1001-03B
3	Disconnect electrical connector (3).
4	Disconnect electrical connection (4).	Model 205, 222, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Model 293
5	Remove accelerator pedal (2).	The accelerator pedal (2) must not be disassembled. It can be damaged and must be replaced otherwise.
6	Install in the reverse order
