Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055E
Model 213, 238, 253 (except 253.99), 257, 290

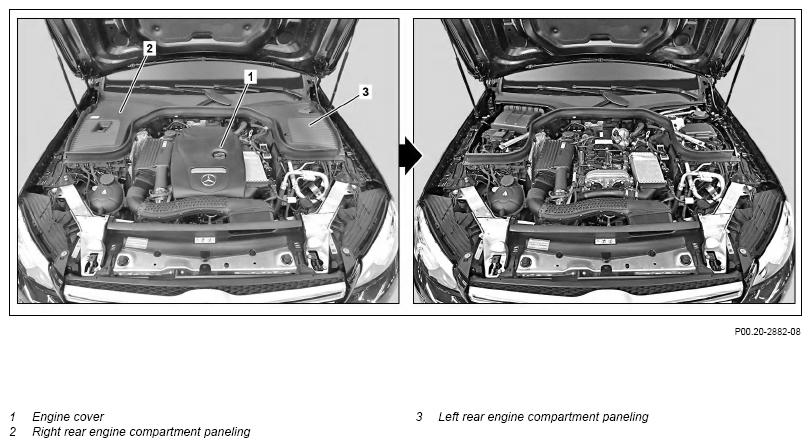

Shown on engine 274.9 in model 253.3
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on evaluating leakages | AH00.00-P-0011-01KOA | ||
| Remove | |||
| 1 | Remove left rear engine compartment trim (3). | ||
| 2 | Remove right rear engine compartment trim (2). | ||
| 3 | Remove engine cover (1). | Model 213, 238, 253 (except 253.99), 257, 290 | |
| Engine 177 in model 213 | AR01.10-P-2405MNE | ||
| Engine 256 in model 257 | AR01.10-P-2405MSA | ||
| Engine 654 in model 213, 238 | AR01.10-P-2405OLC | ||
| Model 290 with engine 177 | AP01.10-P-2405-01E | ||
| Model 290 with engine 256.9 | AP01.10-P-2405-01F | ||
| Check | |||
| 4 | Check visible systems and component parts in the engine compartment for condition, leaks and mounting. | Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system. If problems occur, ↓ rectify the problems. |
|
| 5 | Check visible systems and component parts in the engine compartment for condition, leaks and mounting. | Equipment-dependent. Hybrid components, Clutch operation, Stationary heater. If problems occur, ↓ rectify the problems. |
|
| 6 | Check that visible lines and hoses in the engine compartment are in good condition, are not leaking, are routed correctly and are attached securely. | Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Electrical component parts. If problems occur, ↓ rectify the problems. |
|
| 7 | Check that visible lines and hoses in the engine compartment are in good condition, are not leaking, are routed correctly and are attached securely. | Equipment-dependent. Hybrid components, Clutch operation, Stationary heater. If problems occur, ↓ rectify the problems. |
|
| 8 | Check visible systems, component parts and body panels, lines and hoses in the engine compartment on vehicle underside for damage, routing, leaks, mounting and corrosion. | Model 213, 238, 257, 290 | AP00.20-P-0054I |
| Model 253 (except 253.99) | AP00.20-P-0054G | ||
| Install | |||
| 9 | Install engine cover (1). | Model 213, 238, 253 (except 253.99), 257, 290 | |
| Engine 177 in model 213 | AR01.10-P-2405MNE | ||
| Engine 256 in model 257 | AR01.10-P-2405MSA | ||
| Engine 654 in model 213, 238 | AR01.10-P-2405OLC | ||
| Model 290 with engine 177 | AP01.10-P-2405-01E | ||
| Model 290 with engine 256.9 | AP01.10-P-2405-01F | ||
| 10 | Install right rear engine compartment trim (2). | ||
| 11 | Install left rear engine compartment trim (3). |
