Analysis Sheet For 48 V Lithium-Ion Battery, Form - OF54.10-P-3000-15FR
Model 167, 205, 206, 213, 223, 232, 238, 253, 257, 290 with code B01 (48V technology)
| Risk of fire/risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive | AH00.00-Z-0300-01A | |
| Notice | system as well as personal protective equipment Notes on battery |
AH54.10-P-0001-01A | |
| Check the on-board power supply battery for 48-volt on-board power supply when removed to ensure it is transportable | AR54.10-P-0048ME | ||
| Service-Information: Dealing with High-voltage batteries after an accident with an airbag or pyro fuse draw |
SI54.10-P-0035A | ||
| 000 588 08 19 00 check box | WS54.00-P-0069B |
MODIFICATION NOTES
| 08.12.2020 | Measurement on removed 48 V battery added. | Assessment step D |
| Analysis sheet for "Safe transportation" for 48 V battery (G1/3) | |
|---|---|
| Company-owned sales and service outlet/agency: | ................................................. |
| Name of assessor (block capitals): | ................................................. |
| Telephone number: | ................................................. |
| Repair order number: | ................................................. |
| Vehicle identification number: | ................................................. |

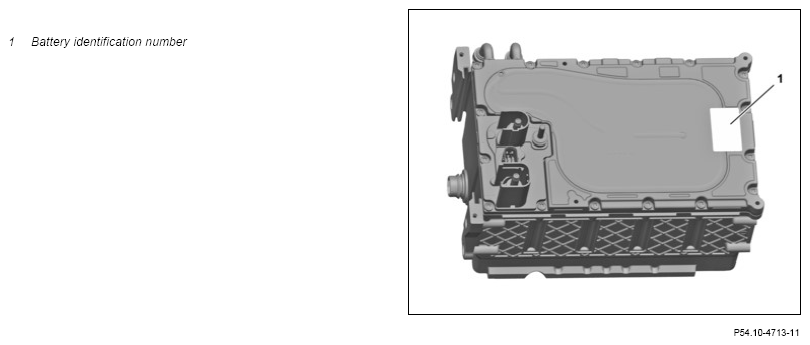

| Battery identification number: | ................................................. |
|
IMPORTANT:
Fill out all fields!
|
|
Visual inspections
The visual inspection provides initial important information about the condition. Wear protective equipment for inspection as per the notes in the repair instructions.

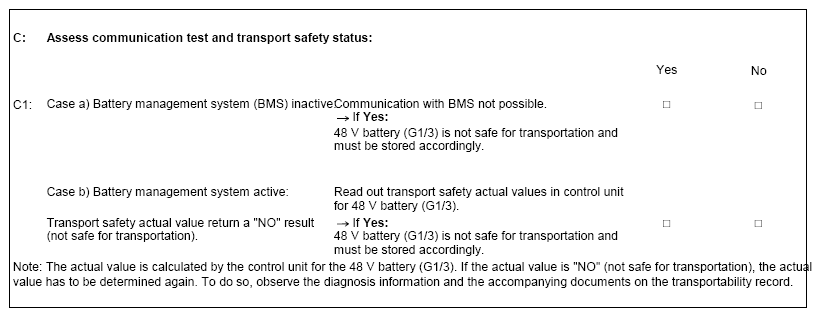

ASSESSMENT STEPS
If the 48 V battery (G1/3) is not safe for transportation, it must be stored in accordance with the conditions given in the guidelines for safe handling of a 48 V battery (G1/3). Also contact the responsible MPC or general distributor.
If the 48 V battery (G1/3) has been assessed as safe for transport, the 48 V battery (G1/3) can be transported safely.
