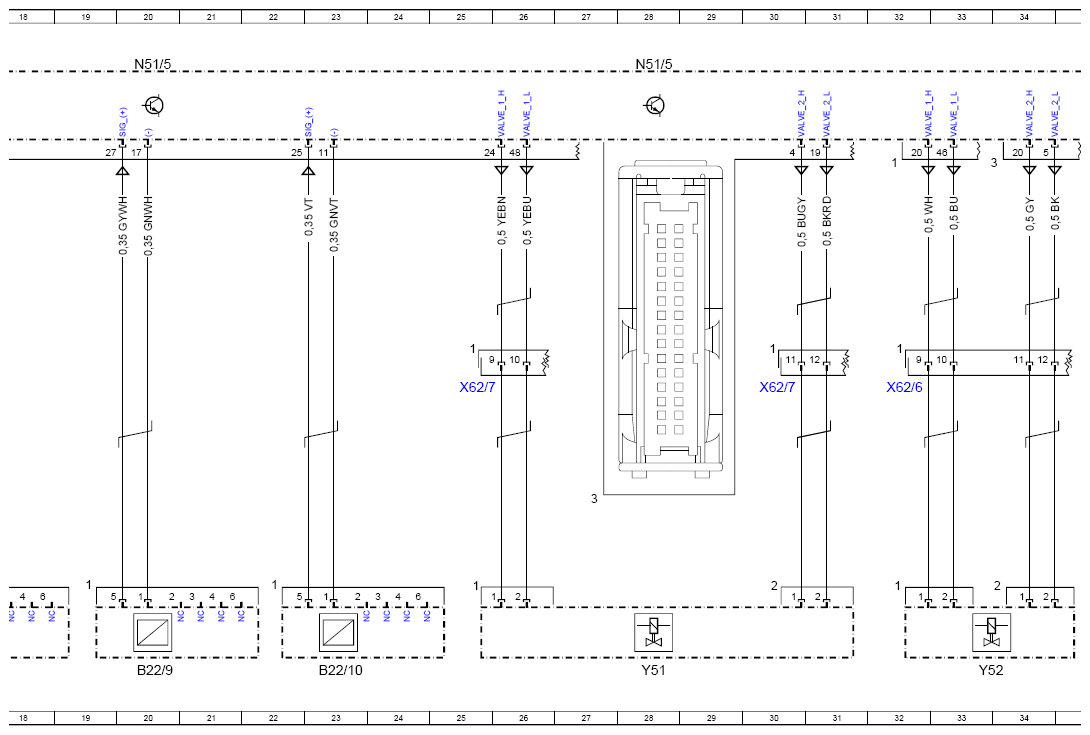

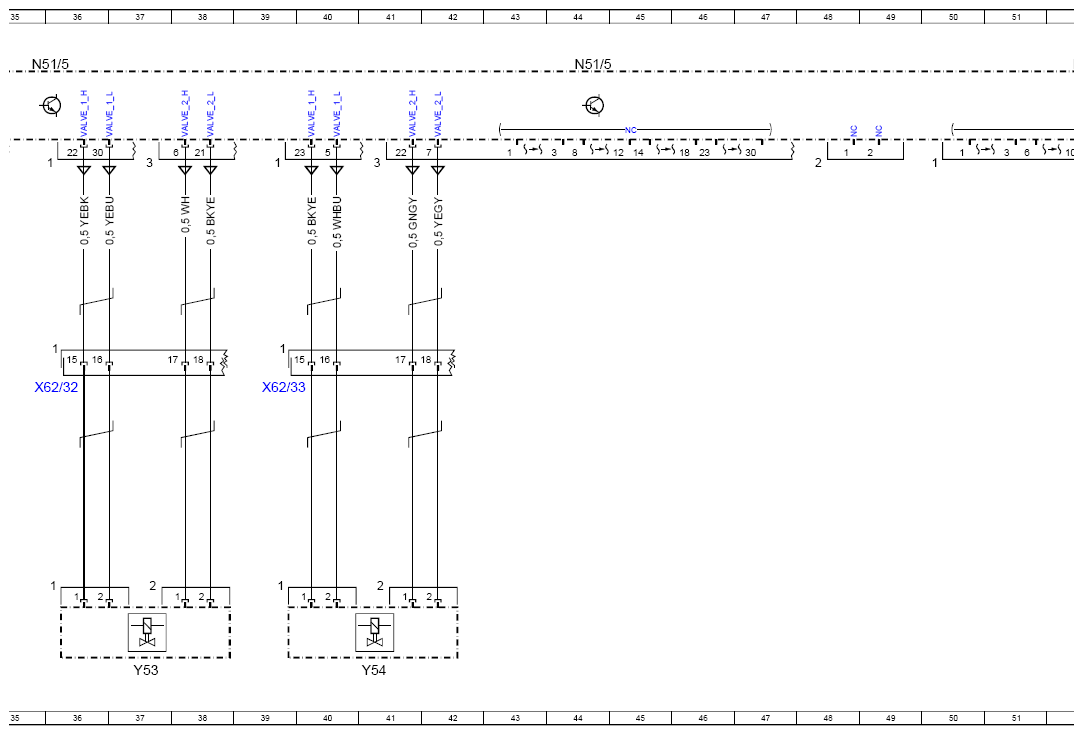

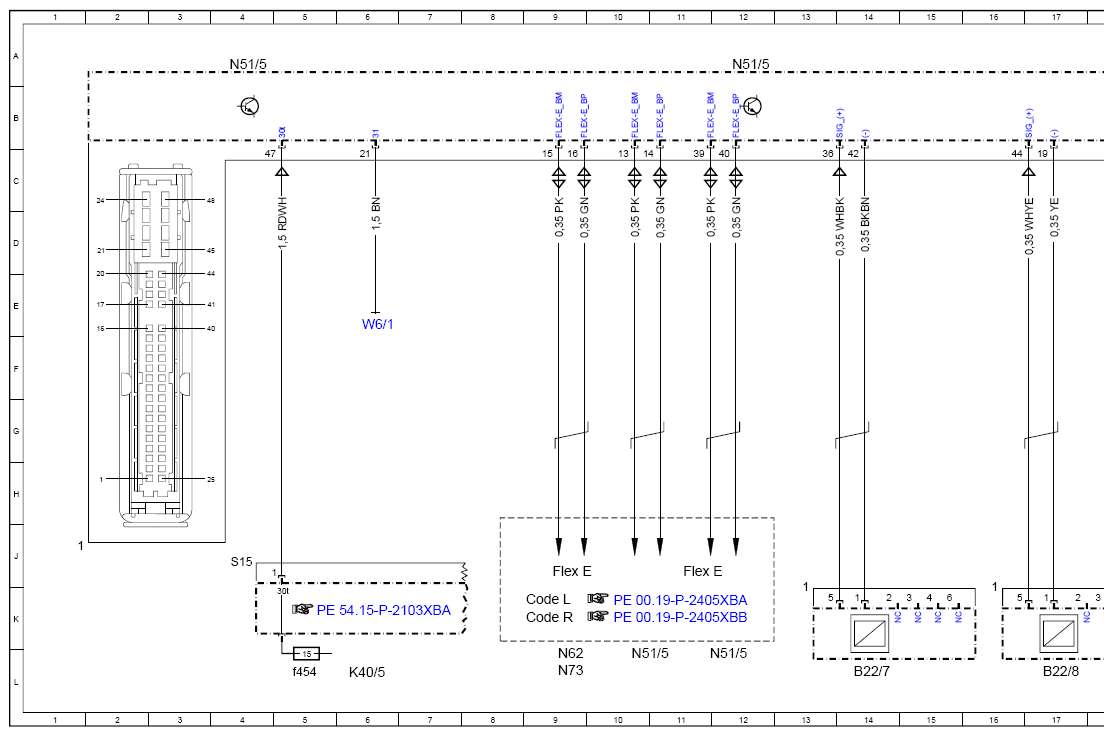

Wiring Diagram For Adaptive Damping System (ADS) Control Unit - PE32.32-P-2101-97XBA
Model 257, 290 up to model year 2021
with code 459 (Steel suspension with adjustable damping)

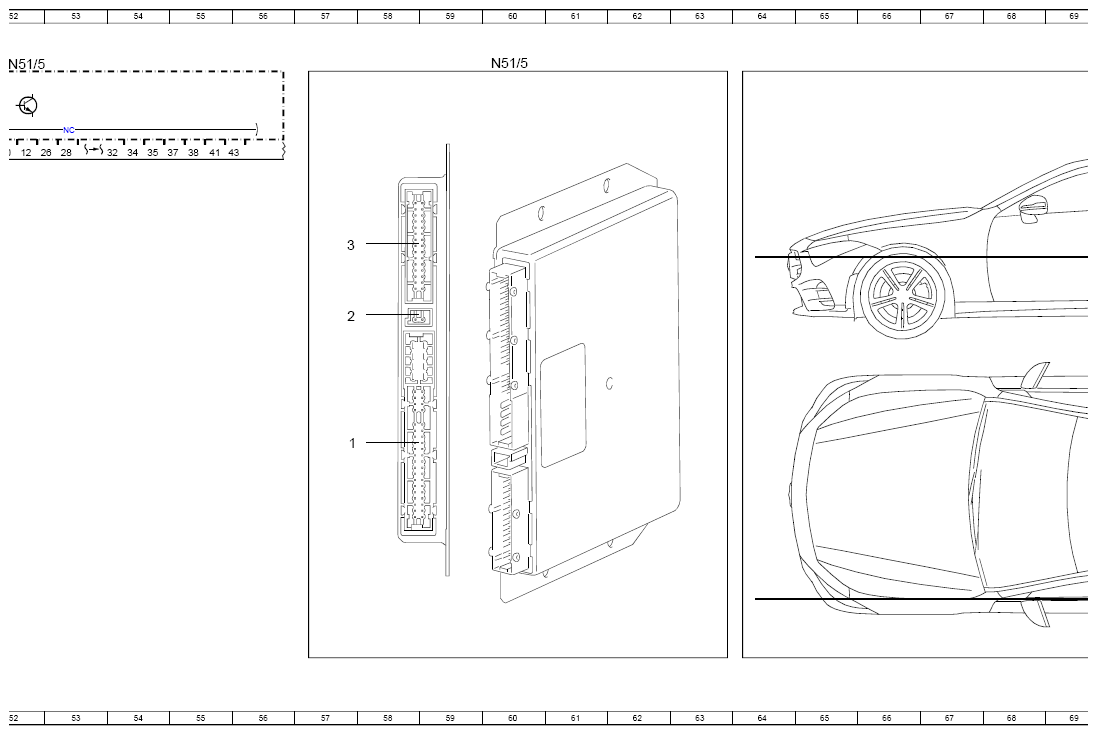

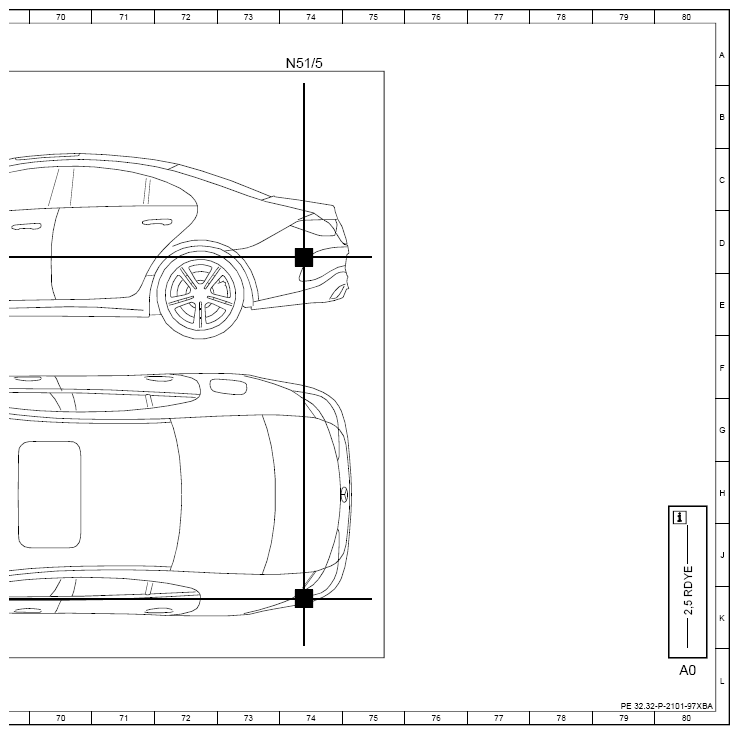

Control unit N51/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| B22/10 | Right rear level sensor | 23L |
| B22/7 | Left rear level sensor | 14L |
| B22/8 | Left front level sensor | 17L |
| B22/9 | Right front level sensor | 20L |
| Code L | LEFT-HAND DRIVE | 9K |
| Code R | RIGHT-HAND DRIVE | 9K |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 11J |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f454 | Fuse 454 | 5L |
| N51/5 | Adaptive damping system control unit | 10L |
| N51/5 | Adaptive damping system control unit | 12L |
| N51/5 | Adaptive damping system control unit | 4A |
| N51/5 | Adaptive damping system control unit | 12A |
| N51/5 | Adaptive damping system control unit | 28A |
| N51/5 | Adaptive damping system control unit | 20A |
| N51/5 | Adaptive damping system control unit | 35A |
| N51/5 | Adaptive damping system control unit | 44A |
| N51/5 | Adaptive damping system control unit | 52A |
| N51/5 | Adaptive damping system control unit | 60A |
| N51/5 | Adaptive damping system control unit | 74A |
| N62 | Parking system control unit | 9L |
| N73 | Electronic ignition switch control unit | 9L |
| W6/1 | Left taillamp trunk ground point | 6E |
| X62/32 | Rear axle electrical connector, left distributor | 36F |
| X62/33 | Rear axle electrical connector, right distributor | 39F |
| X62/6 | Front axle electrical connector, right distributor | 32F |
| X62/7 | Front axle electrical connector, left distributor | 25F |
| X62/7 | Front axle electrical connector, left distributor | 30F |
| Y51 | Left front axle damping valve unit | 28L |
| Y52 | Right front axle damping valve unit | 33L |
| Y53 | Left rear axle damping valve unit | 37L |
| Y54 | Right rear axle damping valve unit | 41L |
