Function Schematic For Front Seat Electric Seat Adjustment - PE91.29-P-2501-97D
Model 213, 238, 257, 290 with code 275 (Memory Package (driver's seat, steering column and mirror))
| Code: | Designation: | Position: |
|---|---|---|

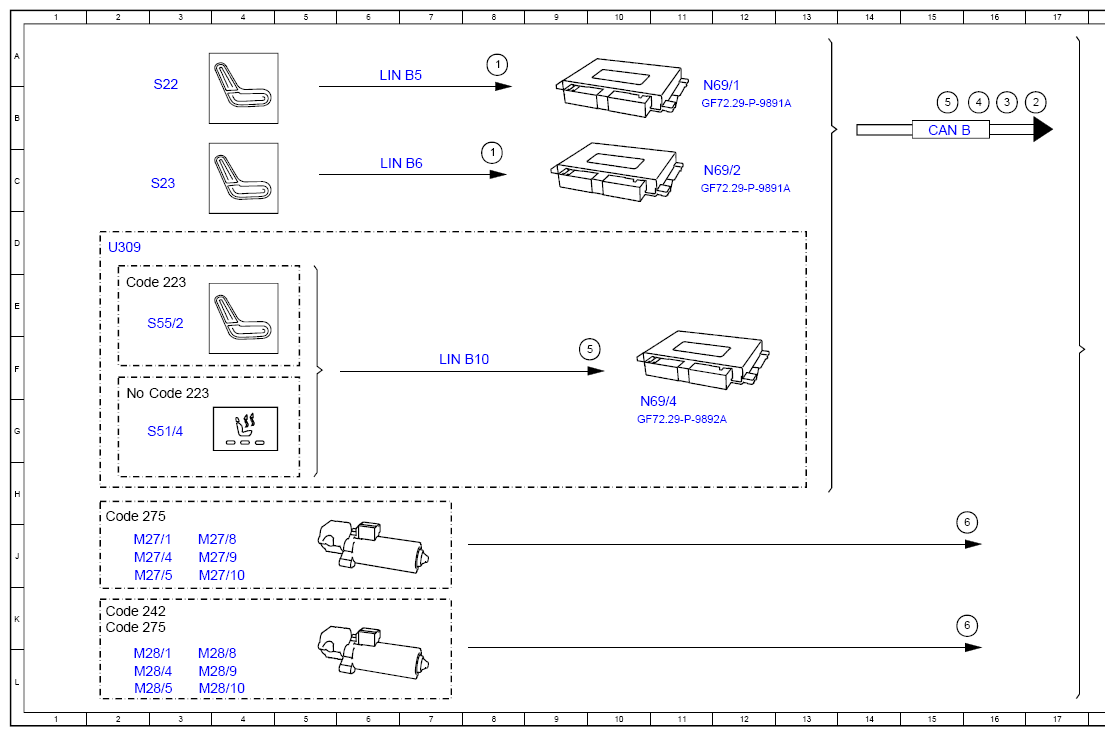

| 1 | Seat adjustment switch group, status | 4E |
| 1 | Seat adjustment switch group, status | 10E |
| 2 | Manual adjustment, request | 5H |
| 3 | Store memory position, request | 16B |
| 4 | Adopt memory position, request | 16B |
| 5 | Front passenger seat operation from right rear seat, request | 15A |
| 5 | Front passenger seat operation from right rear seat, request | 10E |
| 6 | Hall sensors, signal | 16K |
| 6 | Hall sensors, signal | 16H |

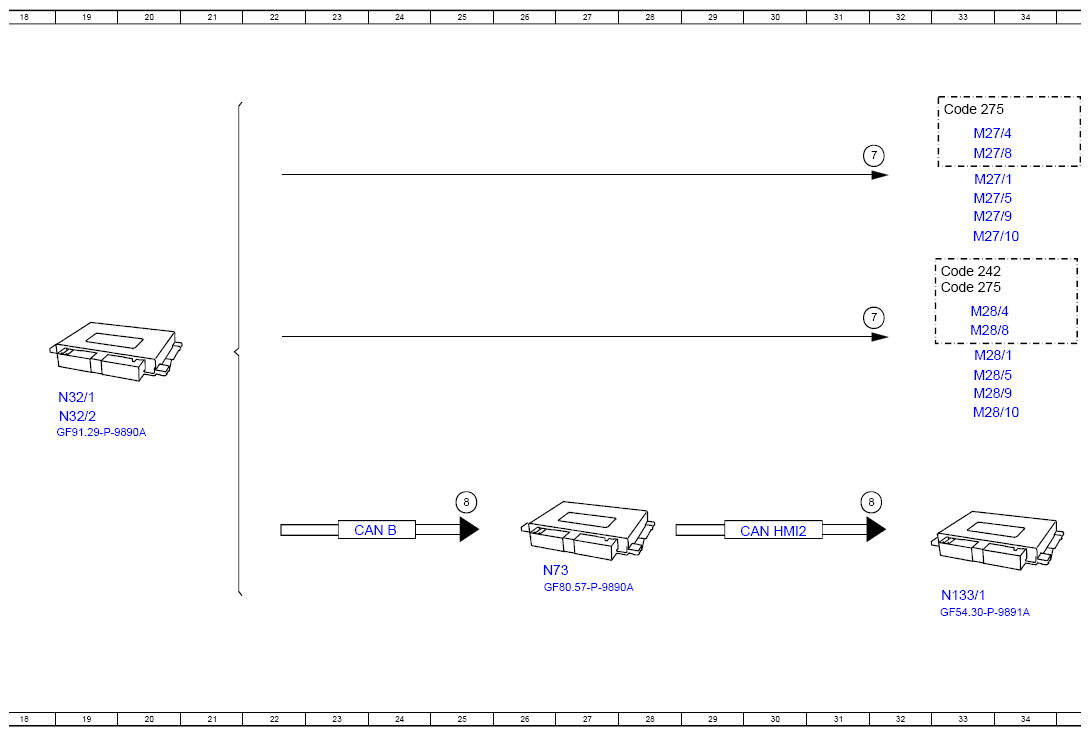

| 7 | Seat adjustment motor, actuation | 31B |
| 7 | Seat adjustment motor, actuation | 31E |
| 8 | Acknowledgement tone after memory positions stored successfully, request | 31H |
| 8 | Acknowledgement tone after memory positions stored successfully, request | 25H |
| 9 | Speaker, actuation | 37H |
| CAN B | Interior CAN | 15B |
| CAN B | Interior CAN | 23J |
| CAN HMI2 | User interface CAN 2 | 30J |
| Code 223 | Electrically adjustable rear bench seat | 2E |
| Code 223 | Electrically adjustable rear bench seat | 2F |
| Code 242 | Right electrically adjustable front seat with memory | 2K |
| Code 242 | Right electrically adjustable front seat with memory | 33E |
| Code 275 | Memory package | 2K |
| Code 275 | Memory package | 33B |
| Code 275 | Memory package | 33E |
| Code 275 | Memory package | 2H |
| H4/61 | Instrument cluster speaker | 38J |
| LIN B10 | Right rear door LIN | 7F |
| LIN B5 | Left front door LIN | 6A |
| LIN B6 | Right front door LIN | 6C |
| M27/1 | Driver seat fore/aft adjustment motor | 33C |
| M27/1 | Driver seat fore/aft adjustment motor | 2J |
| M27/10 | Driver seat height adjustment motor | 33D |
| M27/10 | Driver seat height adjustment motor | 3J |
| M27/4 | Driver seat head restraint adjustment motor | 33B |
| M27/4 | Driver seat head restraint adjustment motor | 2J |
| M27/5 | Driver seat backrest inclination adjustment motor | 33C |
| M27/5 | Driver seat backrest inclination adjustment motor | 2J |
| M27/8 | Seat cushion length adjustment motor, driver seat | 33C |
| M27/8 | Seat cushion length adjustment motor, driver seat | 3J |
| M27/9 | Seat inclination adjustment motor, driver seat | 33D |
| M27/9 | Seat inclination adjustment motor, driver seat | 3J |
| M28/1 | Front passenger seat fore/aft adjustment motor | 33F |
| M28/1 | Front passenger seat fore/aft adjustment motor | 2L |
| M28/10 | Front passenger seat height adjustment motor | 33G |
| M28/10 | Front passenger seat height adjustment motor | 3L |
| M28/4 | Front passenger seat head restraint adjustment motor | 2L |
| M28/4 | Front passenger seat head restraint adjustment motor | 33E |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 33F |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 2L |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 33E |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 3L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 33F |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 3L |
| N133/1 | Instrument cluster control unit | 33K |
| N32/1 | Driver seat control unit | 19G |
| N32/2 | Front passenger seat control unit | 19G |
| N69/1 | Left front door control unit | 11B |
| N69/2 | Right front door control unit | 12C |
| N69/4 | Right rear door control unit | 10G |
| N73 | Electronic ignition switch control unit | 26J |
| S22 | Left front seat adjustment switch group | 3B |
| S23 | Right front seat adjustment switch group | 3C |
| S51/4 | Right rear seat climate control switch group | 3G |
| S55/2 | Right rear seat adjustment switch group | 3E |
| U309 | Valid for model 213.1 | 2D |
