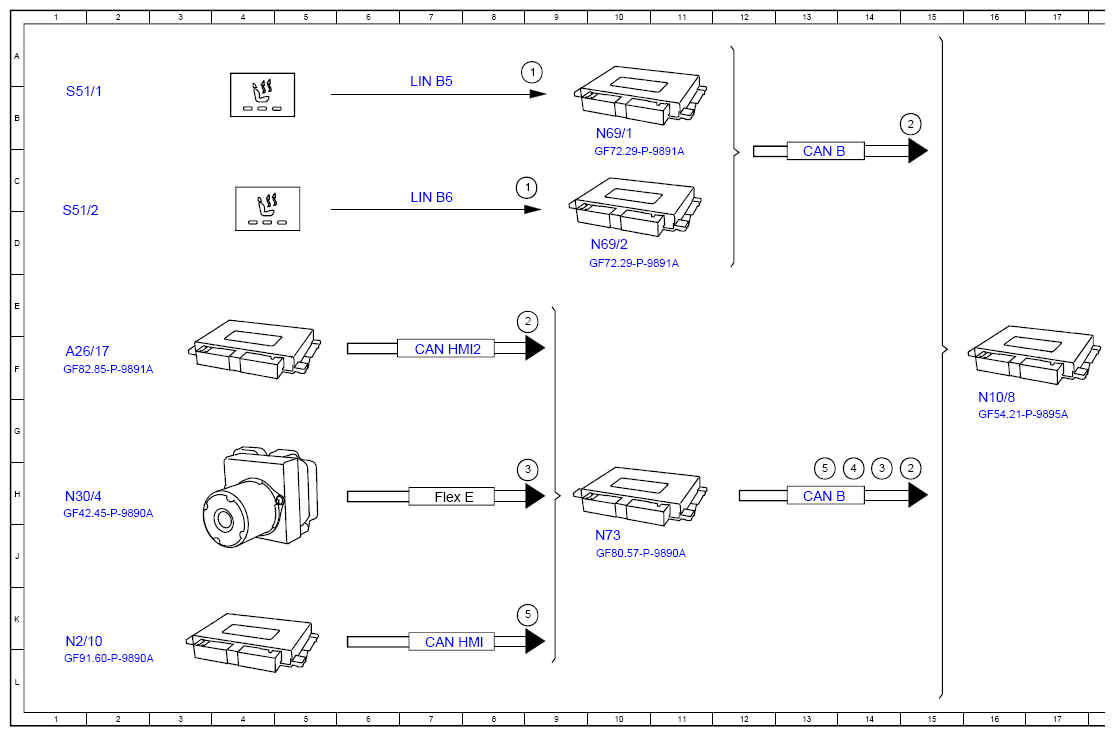

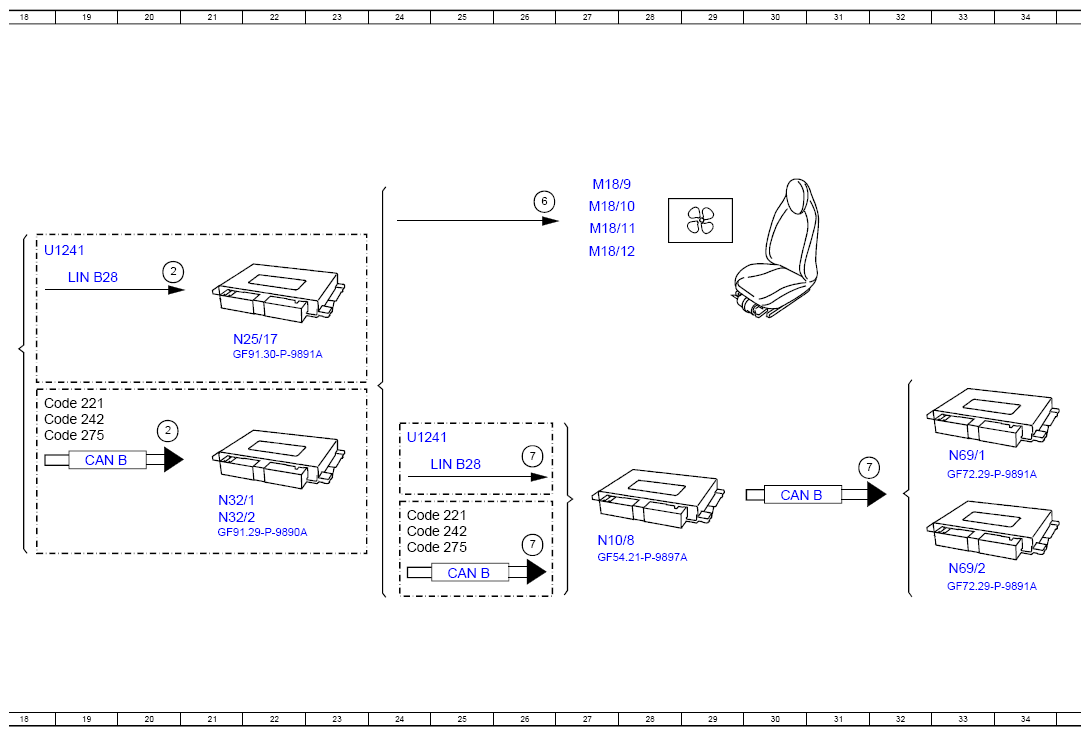

Function Schematic For Actuating Front Seat Ventilation - PE91.30-P-2501-97D
Model 213, 238, 257, 290 with code 401 (Climatised front seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 9A |
| 1 | Seat climate control switch group, status | 9C |
| 2 | Seat ventilation, request | 9F |
| 2 | Seat ventilation, request | 15H |
| 2 | Seat ventilation, request | 8E |
| 2 | Seat ventilation, request | 20G |
| 2 | Seat ventilation, request | 20D |
| 3 | Vehicle speed, signal | 14H |
| 3 | Vehicle speed, signal | 9H |
| 4 | Circuit 15, status | 14H |
| 5 | Crash, signal | 9K |
| 5 | Crash, signal | 13H |
| 6 | Seat ventilation motors, actuation | 26C |
| 7 | Seat ventilation, status | 31H |
| 7 | Seat ventiati on, status | 26G |
| 7 | Seat ventilation, status | 26J |
| 7 | Seat ventilation, status | 37H |
| 7 | Seat ventilation, status | 37F |
| A26/17 | Head unit | 1F |
| CAN B | Interior CAN | 13C |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 30H |
| CAN B | Interior CAN | 19H |
| CAN B | Interior CAN | 25J |
| CAN HMI | User interface CAN | 7K |
| CAN HMI2 | User interface CAN 2 | 7F |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 18G |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 24H |
| Code 242 | Right electrically adjustable front seat with memory | 18G |
| Code 242 | Right electrically adjustable front seat with memory | 24J |
| Code 275 | Memory package | 18G |
| Code 275 | Memory package | 24J |
| Flex E | Chassis FlexRay | 7H |
| LIN B28 | Heater LIN | 19E |
| LIN B28 | Heater LIN | 25H |
| LIN B5 | Left front door LIN | 7A |
| LIN B5 | Left front door LIN | 36G |
| LIN B6 | Right front door LIN | 7C |
| LIN B6 | Right front door LIN | 36H |
| M18/10 | Left front backrest seat ventilation motors | 27C |
| Ml8/11 | Right front seat cushion seat ventilation motors | 27D |
| M18/12 | Right front backrest seat ventilation motors | 27D |
| M18/9 | Left front seat cushion seat ventilation motors | 27C |
| N10/8 | Rear SAM control unit | 16G |
| N10/8 | Rear SAM control unit | 27J |
| N2/10 | Supplemental restraint system control unit | 1K |
| N25/17 | Front seat heater/seat ventilation control unit | 22F |
| N30/4 | Electronic Stability Program control unit | 1H |
| N32/1 | Driver seat control unit | 21H |
| N32/2 | Front passenger seat control unit | 21H |
| N69/1 | Left front door control unit | 10B |
| N69/1 | Left front door control unit | 33G |
| N69/2 | Right front door control unit | 10D |
| N69/2 | Right front door control unit | 33J |
| N73 | Electronic ignition switch control unit | 10J |
| S51/1 | Left front seat climate control switch group | 1B |
| S51/1 | Left front seat climate control switch group | 38G |
| S51/2 | Right front seat climate control switch group | 1D |
| S51/2 | Right front seat climate control switch group | 38J |
| U1241 | Not valid for electric or partially electric seat adjustment | 18D |
| U1241 | Not valid for electric or partially electric seat adjustment | 24G |
