Coolant Thermostat Tightening Procedure - AR20.10-P-2461-01MRT
Engine 256.9
COOLANT THERMOSTAT, COOLANT PUMP
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA20.10-P-1001-01MRT | Screw/bolt, coolant thermostat to crankcase | Nm | 8 |
ENGINE RADIATOR, COOLANT HOSES AND LINES
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA20.20-P-1002-02MRT | Screw, coolant connecting pipe to cylinder head | Nm | 8 |

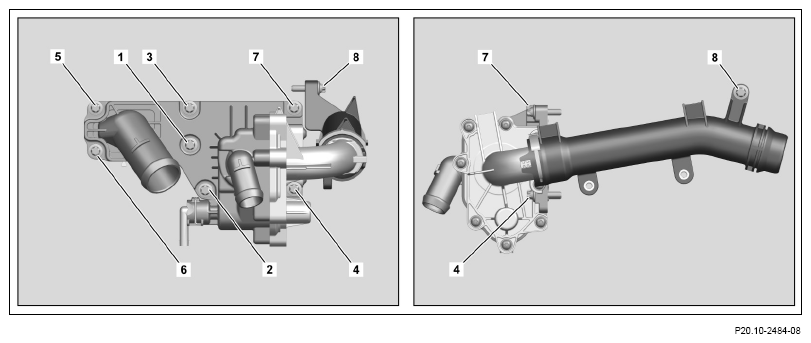

- Manually slightly tighten screws (1 to 8) in numerical order.
- Tighten screws (1 to 7) in numerical order
.
- Tighten bolt (8)
