Replace Low-Temperature Circuit Coolant - AP20.00-P-2083D
Engine 256.9 in model 213, 222, 238, 257, 290
Shown on engine 256.9 in model 222.059
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||

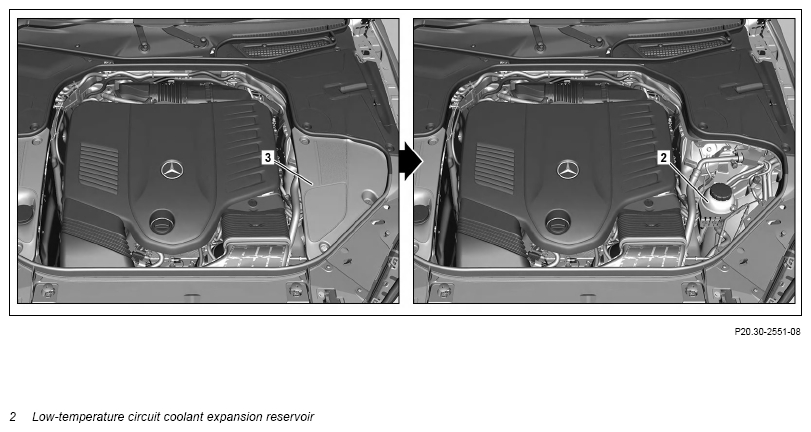

| 1 | Check coolant level in low-temperature circuit coolant expansion reservoir (2). | AP20.30-P-2052K | |
| Draining | |||
| 2 | Drain coolant in low-temperature circuit. | ||
| Engine 256.9 in model 213, 238, 257, 290 | AR09.41-P-6834MSA | ||
| Engine 256.9 in model 222 | AR09.41-P-6834MRT | ||
| Pour in | |||
| 3 | Pour new coolant into low-temperature circuit. | ||
| Engine 256.9 in model 213, 238, 257, 290 | AR09.41-P-6834MSA | ||
| Engine 256.9 in model 222 | AR09.41-P-6834MRT | ||
| Coolant specifications | BB00.40-P-0310-01A |
