Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97XBA

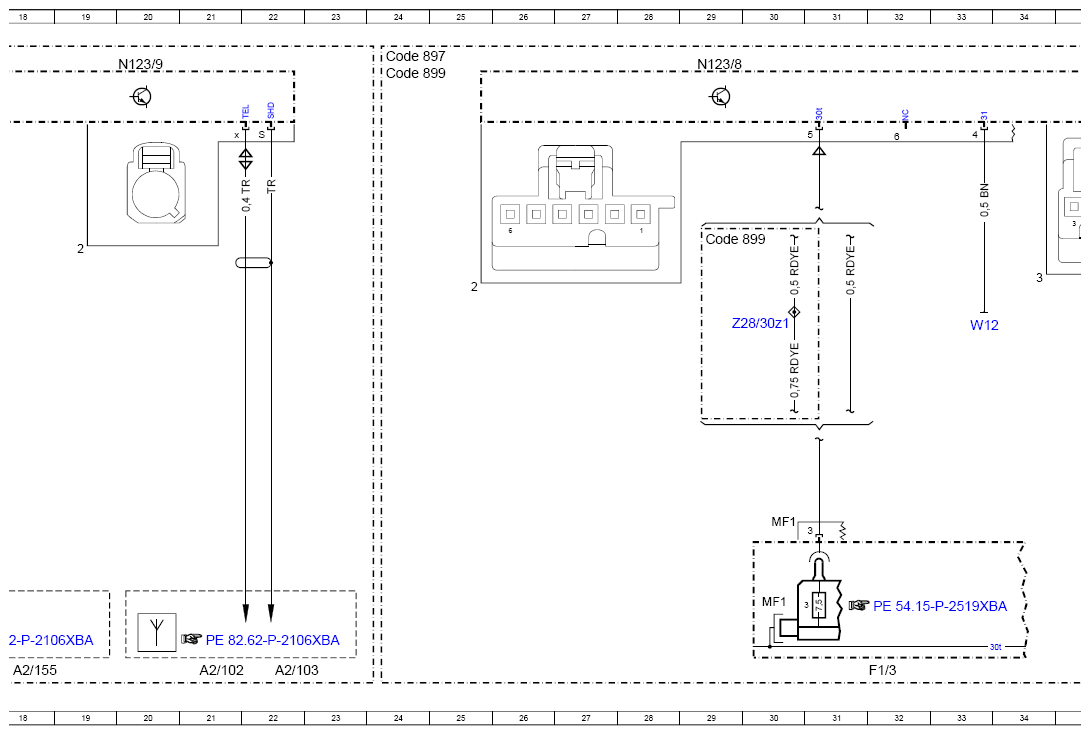

Model 257, 290 up to model year 2021 with code 897 (Front wireless telephone charging) Control unit N123/8
Model 257, 290 up to model year 2021 with code 899 (Multifunction telephony) Control unit N123/8, amplifier A28/15

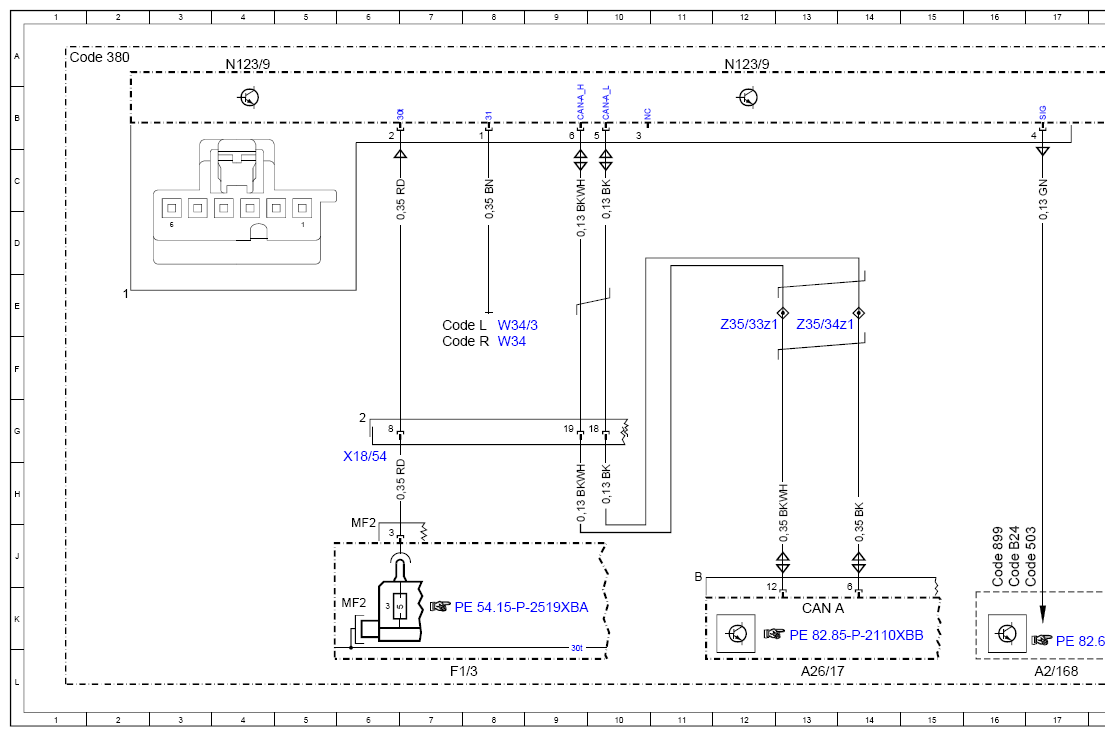

Model 290 up to model year 2021 with code 380 (Car telephony package) Control unit N123/9
Model 290 up to model year 2021 with code 898 (Wireless telephone charging in rear passenger compartment) Control unit N123/10
| Code: | Designation: | Position: |
|---|---|---|

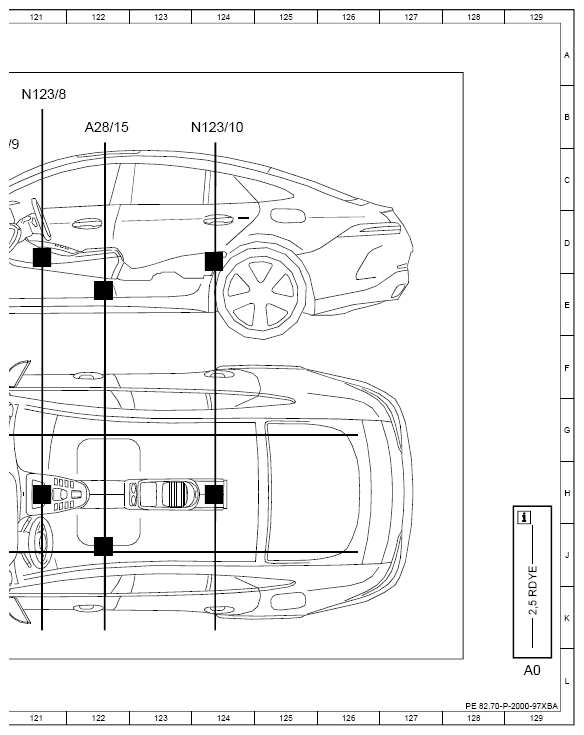

| A0 | Use of wiring diagrams | 129L |
| A2/102 | Left telephone antenna | 21L |
| A2/102 | Left telephone antenna | 62L |
| A2/103 | Right telephone antenna | 22L |
| A2/103 | Right telephone antenna | 63L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 18L |
| A2/156 | Near Field Communication antenna | 37L |
| A2/168 | Telephone antenna changeover switch | 17L |
| A26/17 | Head unit | 41L |
| A26/17 | Head unit | 13L |

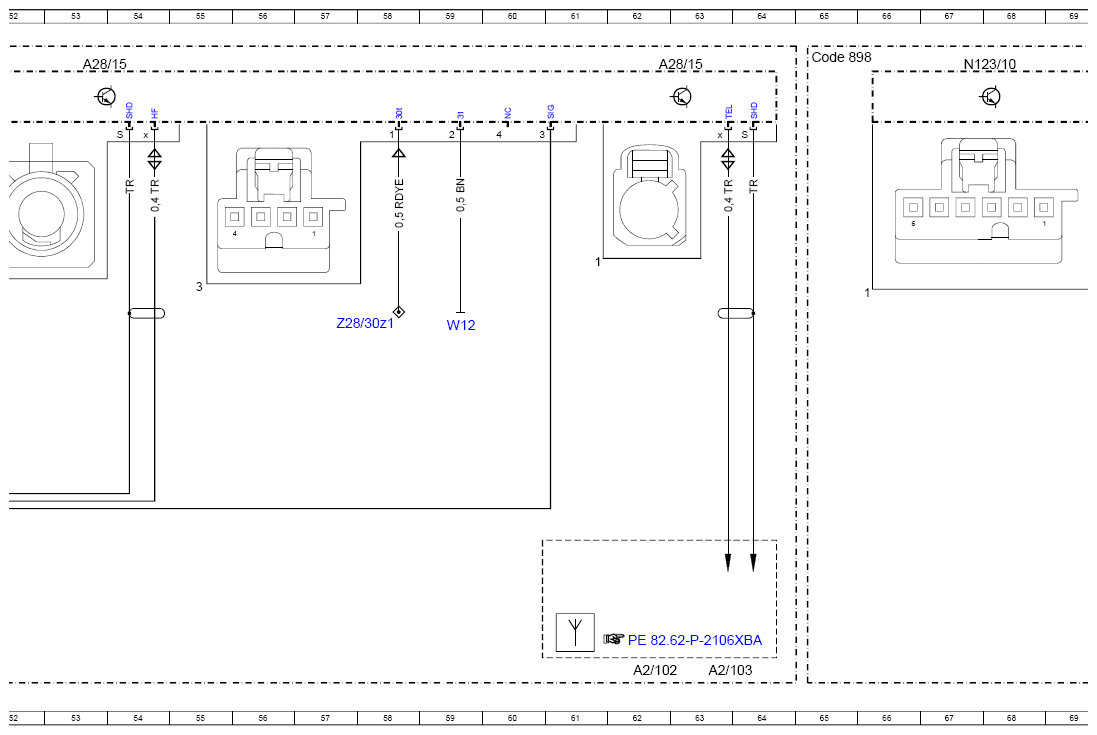

| A28/15 | Cellular telephone system antenna amplifier/compensator | 53A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 62A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 97A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 122B |
| CAN A | Telematics CAN | 41K |
| CAN A | Telematics CAN | 13K |
| CAN A | Telematics CAN | 82K |
| Code 224 | Design rear individual seats | 70D |
| Code 224 | Design rear individual seats | 75D |
| Code 224 | Design rear individual seats | 82D |
| Code 380 | Car telephony package | 1A |
| Code 503 | Remote Park-Pilot | 17J |
| Code 889 | KEYLESS-GO | 107B |
| Code 897 | Wireless mobile phone charging | 24A |
| Code 897 | Wireless mobile phone charging | 41G |
| Code 898 | Wireless charging in rear passenger compartment | 65A |
| Code 899 | Multifunction telephony | 29D |
| Code 899 | Multifunction telephony | 24A |
| Code 899 | Multifunction telephony | 46A |
| Code 899 | Multifunction telephony | 16J |
| Code 899 | Multifunction telephony | 44G |
| Code B24 | Remote control for stationary heater | 16J |
| Code L | LEFT-HAND DRIVE | 7E |
| Code L | LEFT-HAND DRIVE | 115G |
| Code R | RIGHT-HAND DRIVE | 7F |
| Code R | RIGHT-HAND DRIVE | 115J |
| F1/3 | Passenger-side A-pillar fuse box | 7L |
| F1/3 | Passenger-side A-pillar fuse box | 32L |
| F1/3MF1 | Multiple fuse 1 | 30K |
| F1/3MF2 | Multiple fuse 2 | 6K |
| K40/5 | Rear fuse and relay module | 73L |
| K40/5 | Rear fuse and relay module | 78L |
| K40/5f412 | Fuse 412 | 77L |
| K40/5f424 | Fuse 424 | 72L |

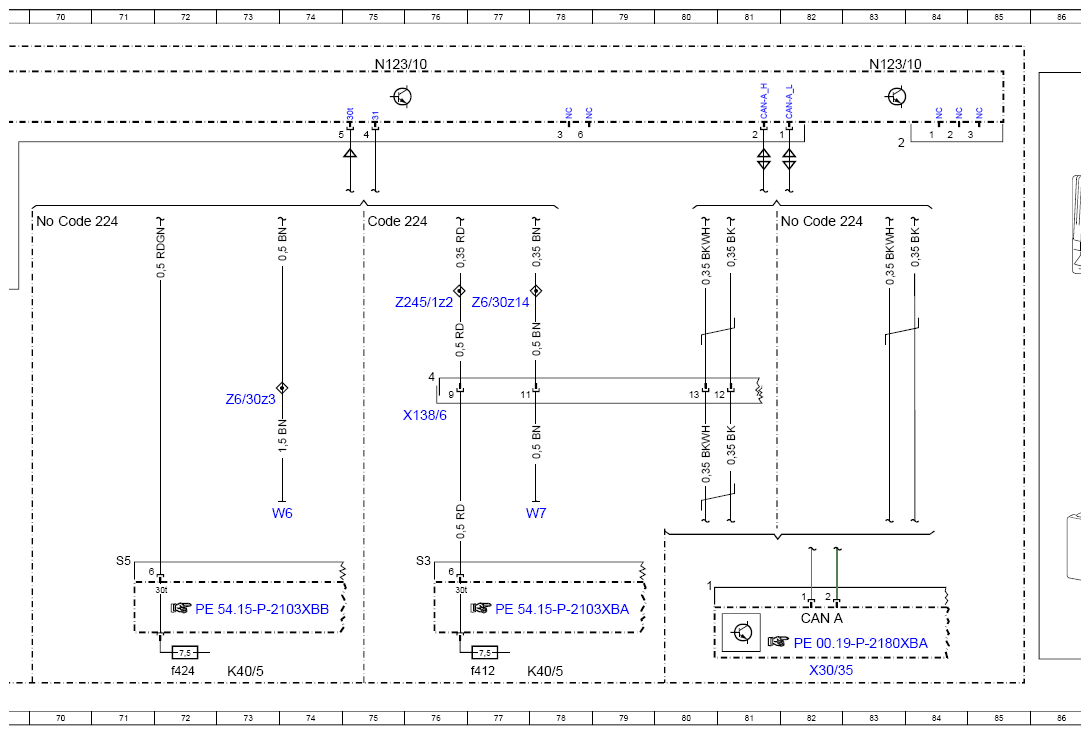

| N123/10 | Rear passenger compartment mobile phone cradle control unit | 112A |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 67A |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 75A |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 83A |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 124B |

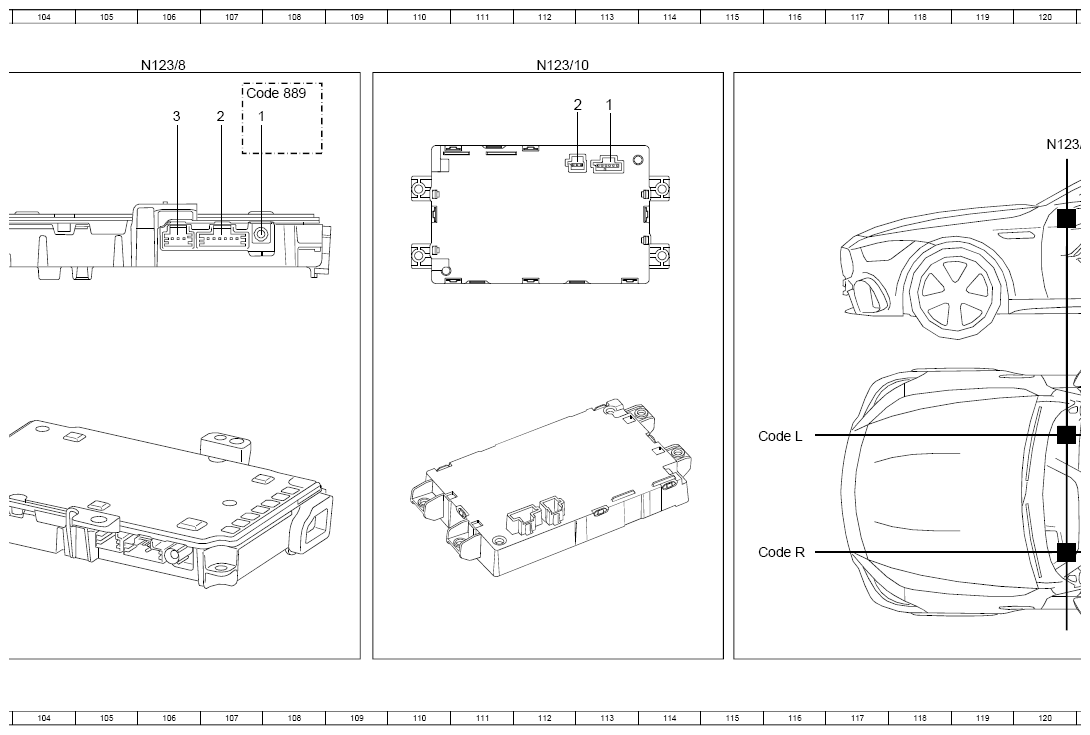

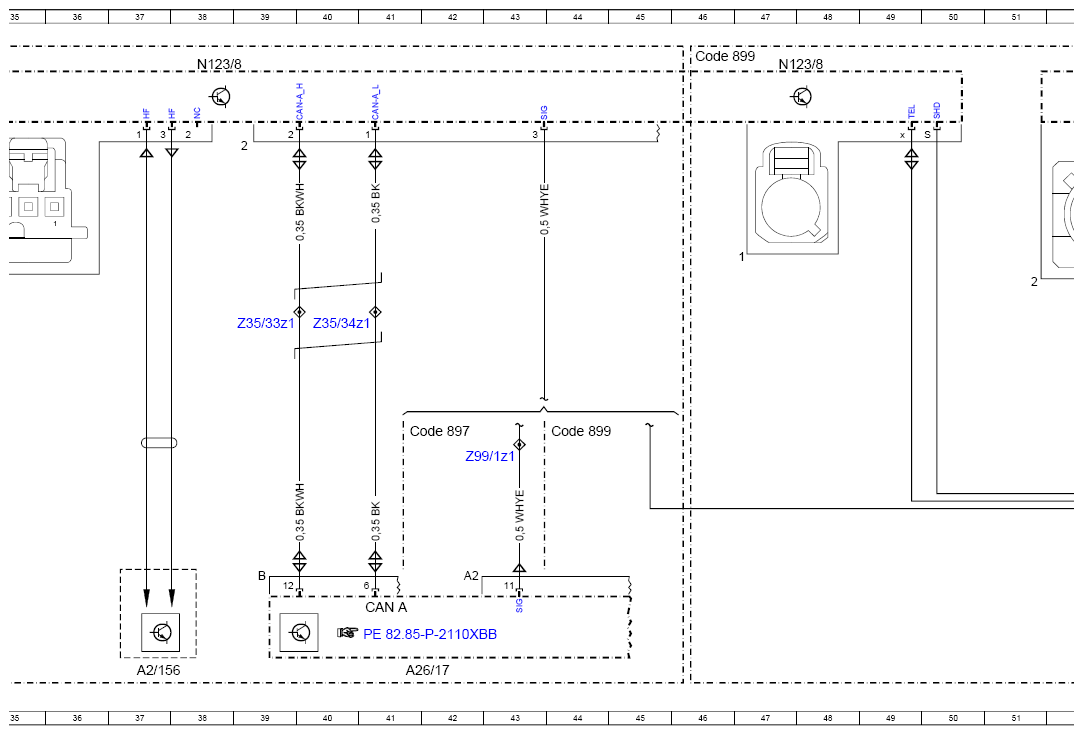

| N123/8 | Mobile phone cradle control unit | 29A |
| N123/8 | Mobile phone cradle control unit | 38A |
| N123/8 | Mobile phone cradle control unit | 47A |
| N123/8 | Mobile phone cradle control unit | 121B |
| N123/8 | Mobile phone cradle control unit | 106A |

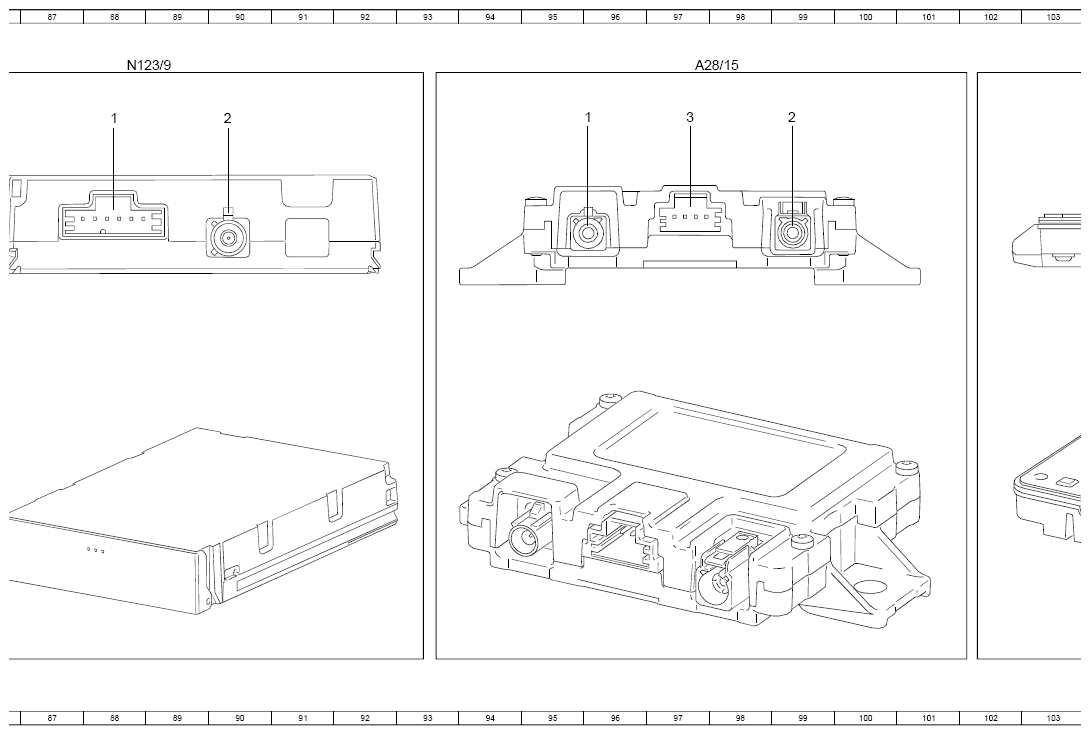

| N123/9 | Telephone control unit | 4A |
| N123/9 | Telephone control unit | 12A |
| N123/9 | Telephone control unit | 88A |
| N123/9 | Telephone control unit | 120C |
| N123/9 | Telephone control unit | 20A |
| W12 | Left center console ground point | 33E |
| W12 | Left center console ground point | 59E |
| W34 | Left footwell ground point | 8F |
| W34/3 | Right footwell ground point | 8E |
| W6 | Left wheel arch trunk ground point | 73H |
| W7 | Right wheel house trunk ground point | 78H |
| X138/6 | Rear center console electrical connector | 76G |
| X18/54 | Passenger side cockpit/frame floor assembly electrical connector | 6G |
| X30/35 | Telematics CAN potential distributor (CAN A) | 82L |
| Z245/1z2 | Terminal 30t connector sleeve | 76E |
| Z28/30z1 | Terminal 30t connector sleeve | 30E |
| Z28/30z1 | Terminal 30t connector sleeve | 58E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 39E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 12E |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 40E |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 13E |
| Z6/30z14 | Ground connection connector sleeve | 77E |
| Z6/30z3 | Ground connection connector sleeve | 73G |
| Z99/1z1 | Wake-up signal connector sleeve | 43G |
