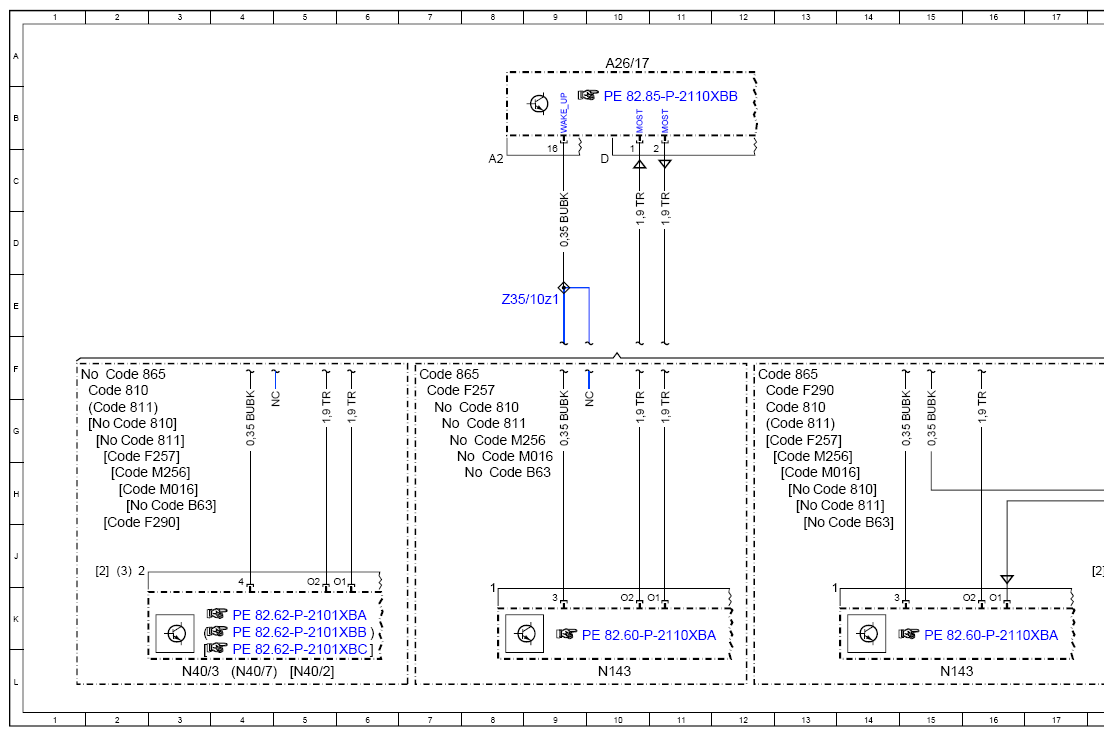

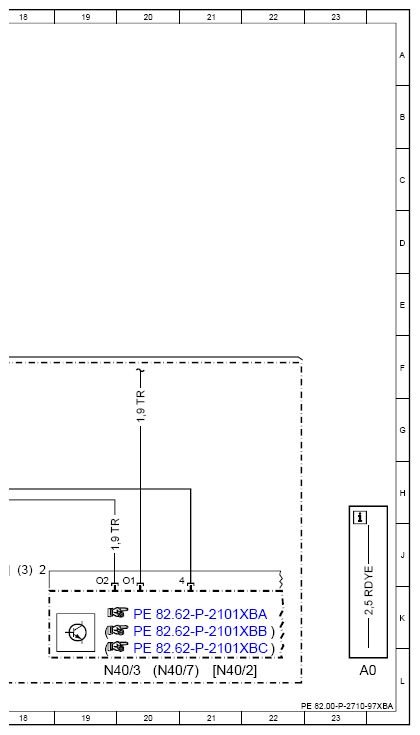

Wiring Diagram Of Most Bus - PE82.00-P-2710-97XBA
Model 257 with engine 256 up to model year 2021 with code M016 (Uprated engine) except code B63 (Engine sound via speakers)
Model 257 up to model year 2021 with code 810 (Premium sound system)
Model 257 up to model year 2021 with code 811 (High-End sound system)
Model 257 up to model year 2021 with code 865 (digital TV)
Model 290 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A26/17 | Head unit | 10A |
| Code 810 | Sound system | 7G |
| Code 810 | Sound system | 2F |
| Code 810 | Sound system | 2G |
| Code 810 | Sound system | 13H |
| Code 810 | Sound system | 12G |
| Code 811 | Advanced sound system | 8G |
| Code 811 | Advanced sound system | 2G |
| Code 811 | Advanced sound system | 2G |
| Code 811 | Advanced sound system | 13H |
| Code 811 | Advanced sound system | 12G |
| Code 865 | TV tuner | 7F |
| Code 865 | TV tuner | 12F |
| Code 865 | TV tuner | 2F |
| Code B63 | Sporty engine sound | 3H |
| Code B63 | Sporty engine sound | 13J |
| Code B63 | Sporty engine sound | 8H |
| Code F257 | MODEL SERIES 257 | 7F |
| Code F257 | MODEL SERIES 257 | 2G |
| Code F257 | MODEL SERIES 257 | 12G |
| Code F290 | Model series 290 | 12F |
| Code F290 | Model series 290 | 2J |
| Code M016 | Uprated high-performance engine | 2H |
| Code M016 | Uprated high-performance engine | 13H |
| Code M016 | Uprated high-performance engine | 8G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 2H |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 12G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 8G |
| N143 | TV tuner control unit | 10L |
| N143 | TV tuner control unit | 15L |
| N40/2 | Sound system midline amplifier control unit | 5L |
| N40/2 | Sound system midline amplifier control unit | 21L |
| N40/3 | Sound system amplifier control unit | 19L |
| N40/3 | Sound system amplifier control unit | 3L |
| N40/7 | Advanced sound system amplifier control unit | 20L |
| N40/7 | Advanced sound system amplifier control unit | 4L |
| Z35/10z1 | Wake-up signal connector sleeve | 9E |
