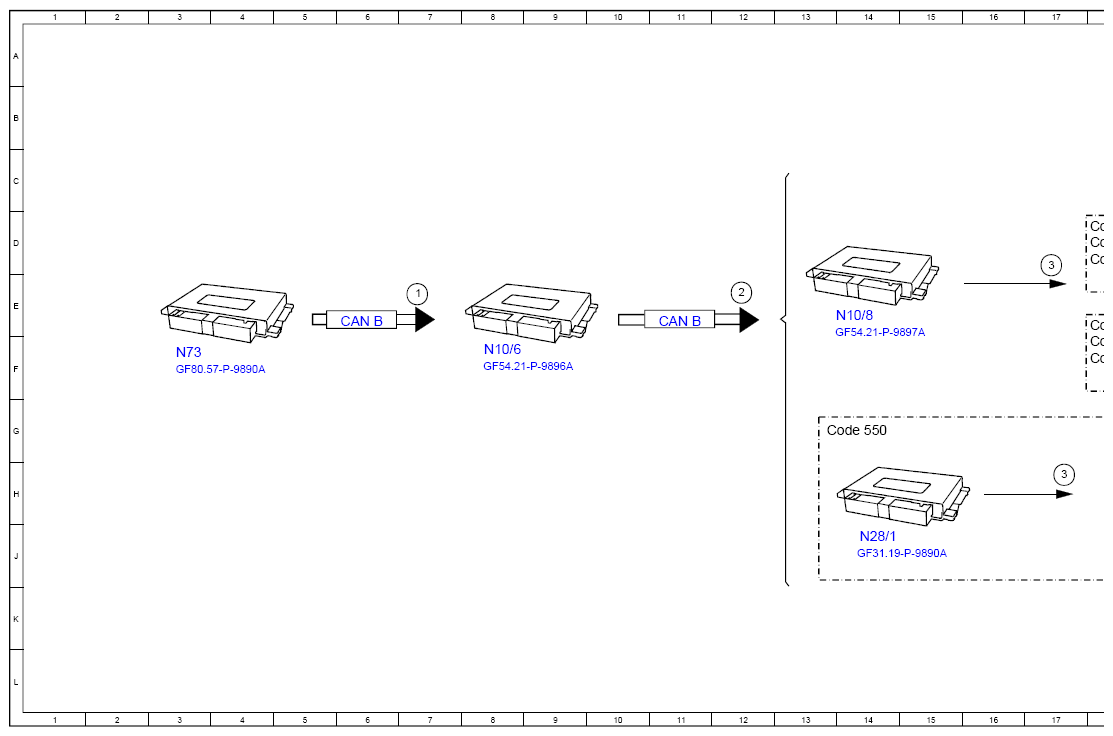

Function Schematic, Actuate Reversing Light - PE82.10-P-2513-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | reverse, status | 7E |
| 2 | Reversing light, requirement | 12E |
| 3 | Daytime running lights, control | 17H |
| 3 | Daytime running lights, control | 17E |
| CAN B | Interior-CAN | 6E |
| CAN B | Interior-CAN | 11E |
| Code 550 | Hitch | 14G |
| Code F213 | model series 213 | 18E |
| Code F213 | model series 213 | 18D |
| Code F238 | model series 238 | 18F |
| Code F238 | model series 238 | 18D |
| Code F257 | model series 257 | 18D |
| Code F257 | model series 257 | 18F |
| E3 | Rear left light unit | 18C |
| E3/1 | Light unit at the rear left inside | 18E |
| E4 | Rear right light unit | 18E |
| E4/1 | Light unit in the rear right inside | 18F |
| N10/6 | Front SAM control unit | 8F |
| N10/8 | Rear SAM Control Unit | 14E |
| N28/1 | Trailer detection control unit | 14J |
| N73 | Electronic Ignition Lock Control Unit | 3F |
| X58x1 | trailer socket | 18J |
