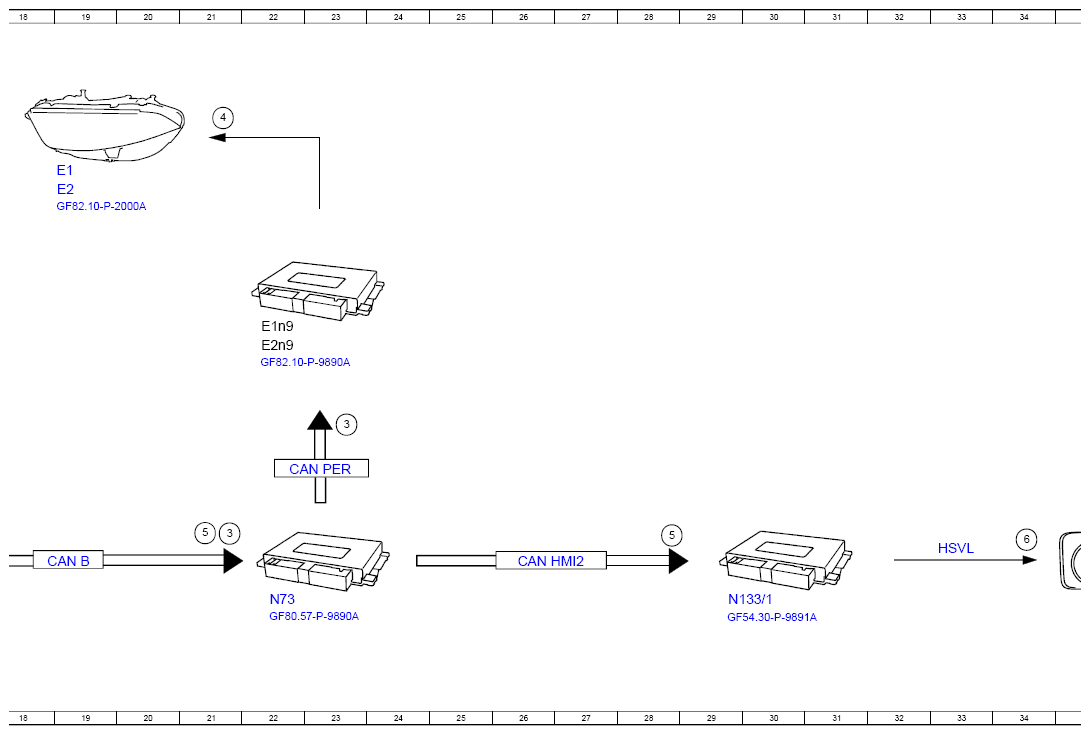

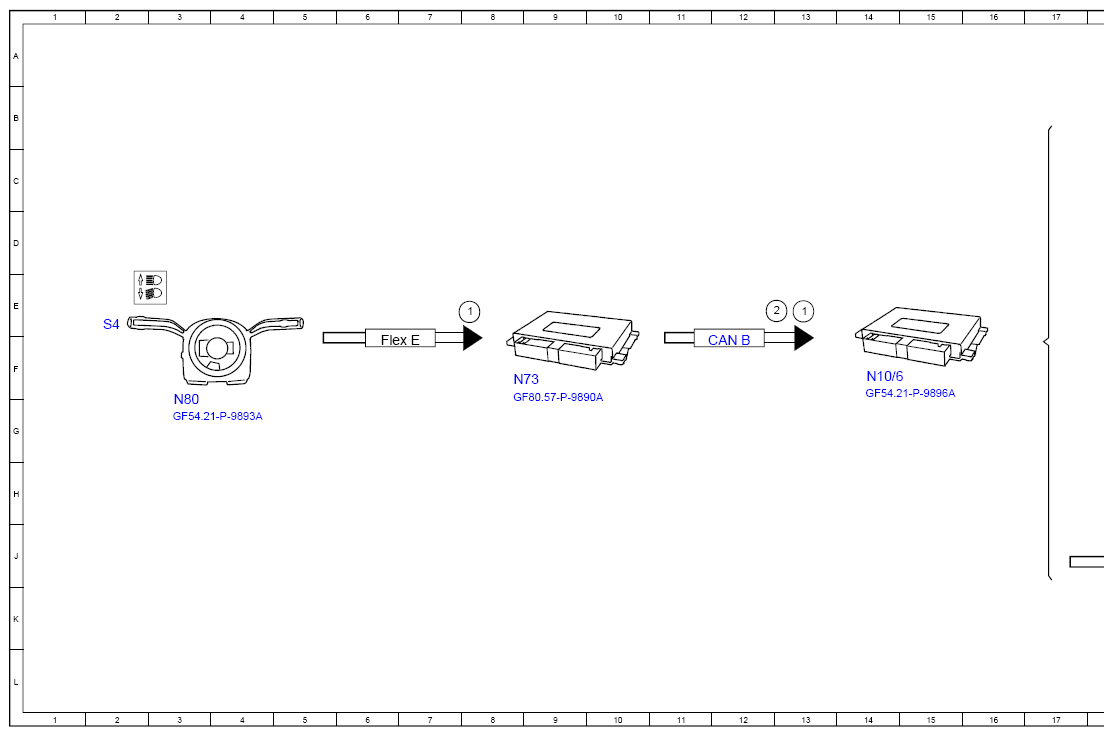

Function Schematic, Actuate High Beams - PE82.10-P-2505-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Combination switch, status | 13E |
| 1 | Combination switch, status | 8E |
| 2 | Terminal 15, Status | 13E |
| 3 | high beam, requirement | 23G |
| 3 | high beam, requirement | 21J |
| 4 | High beam, control | 21B |
| 5 | Indicator light, requirement | 21J |
| 5 | Indicator light, requirement | 21J |
| 6 | image data, signal | 34J |
| A40/16 | Display size head unit/instrument cluster | 36K |
| CAN B | Interior-CAN | 19J |
| CAN B | Interior-CAN | 12F |
| CAN HMI2 | User interface CAN 2 | 26J |
| CAN PER | peripheral CAN | 23H |
| E1 | Light unit in front left | 19C |
| E1n9 | Left headlight control unit | 22E |
| E2 | Light unit in front on the right | 19C |
| E2n9 | Right headlight control unit | 22F |
| Flex E | Suspension FlexRay | 6F |
| HSVL | High-Speed-Video-Link | 33J |
| N10/6 | Front SAM control unit | 14F |
| N133/1 | Instrument Cluster Control Unit | 29K |
| N73 | Electronic Ignition Lock Control Unit | 8F |
| N73 | Electronic Ignition Lock Control Unit | 22K |
| N80 | Steering column tube module control unit | 3G |
| S4 | Combination switch | 2E |
