Wiring Diagram For Antennas - PE82.62-P-2106-97XCB

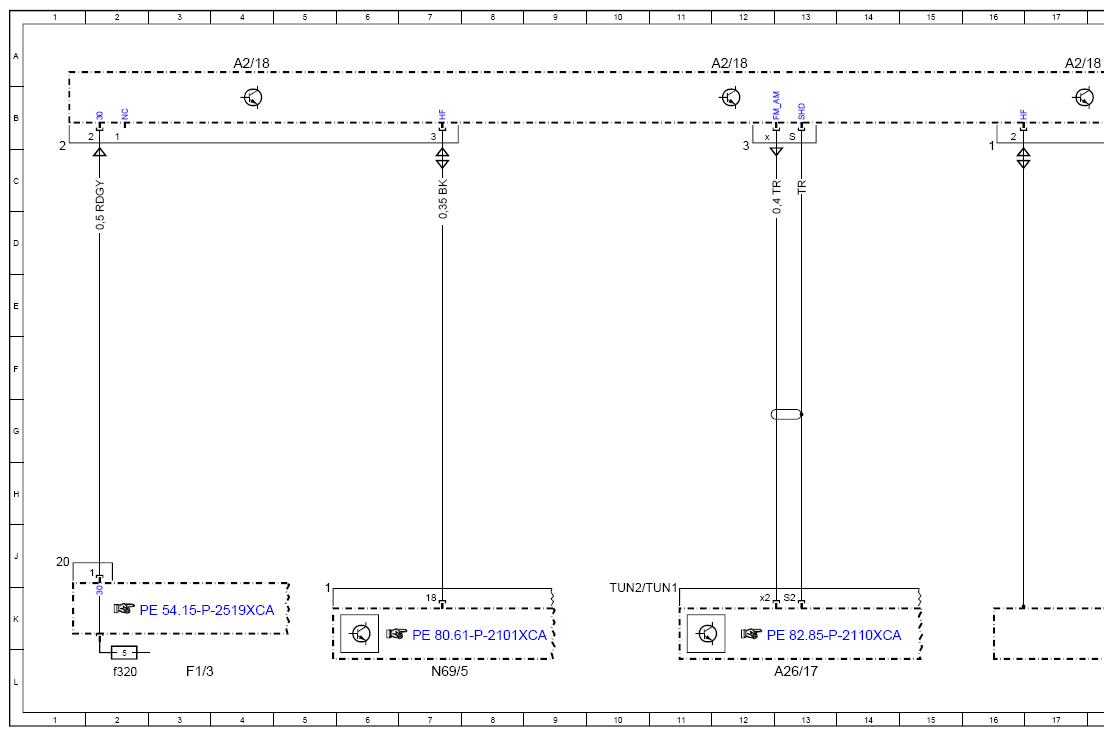

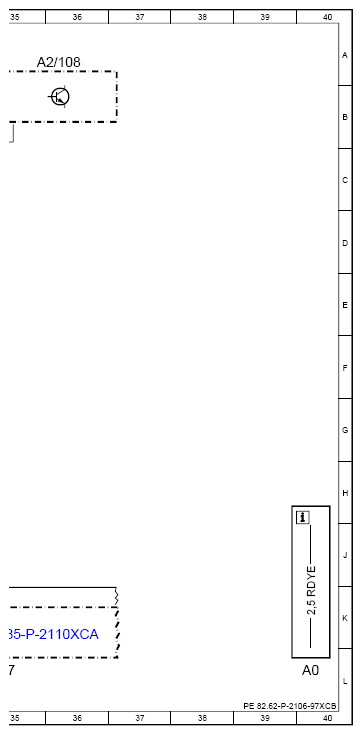

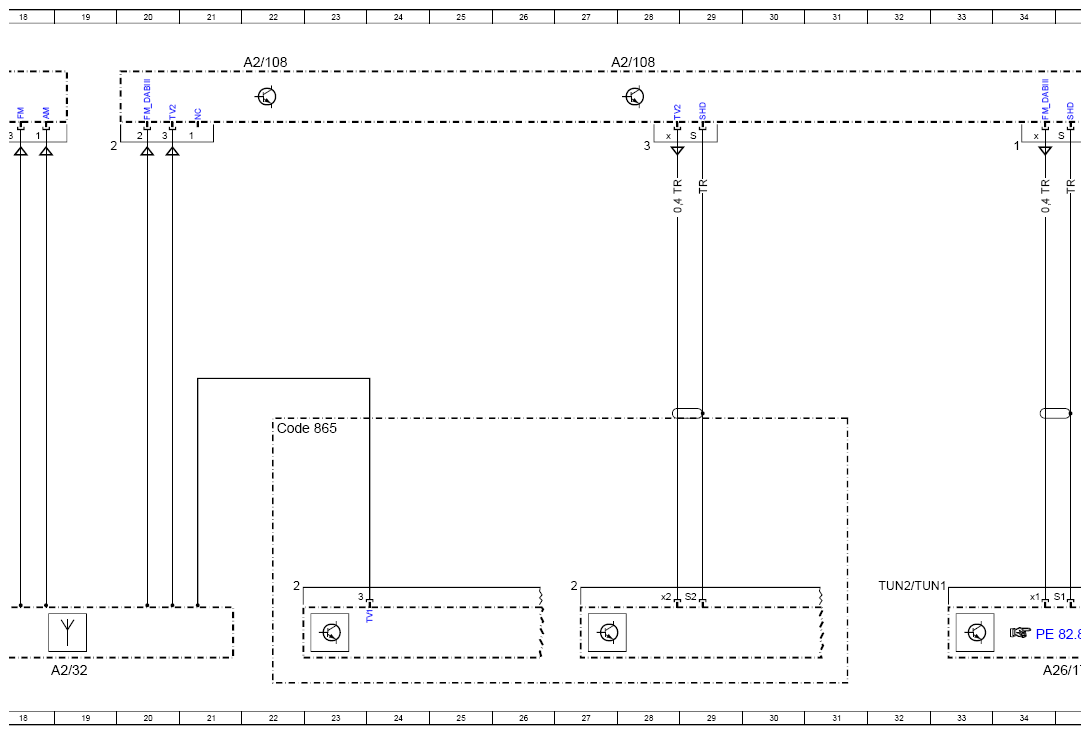

Model 257, 290 as of model year 2021 Rear window antennas
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A2/108 | FM 2, DAB and TV antenna amplifier | 28A |
| A2/108 | FM 2, DAB and TV antenna amplifier | 22A |
| A2/108 | FM 2, DAB and TV antenna amplifier | 36A |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 4A |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 12A |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 17A |
| A2/32 | Rear window antenna | 19L |
| A26/17 | Head unit | 13L |
| A26/17 | Head unit | 34L |
| Code 865 | TV tuner | 22G |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f320 | Fuse 320 | 2L |
| N69/5 | KEYLESS-GO control unit | 7L |
