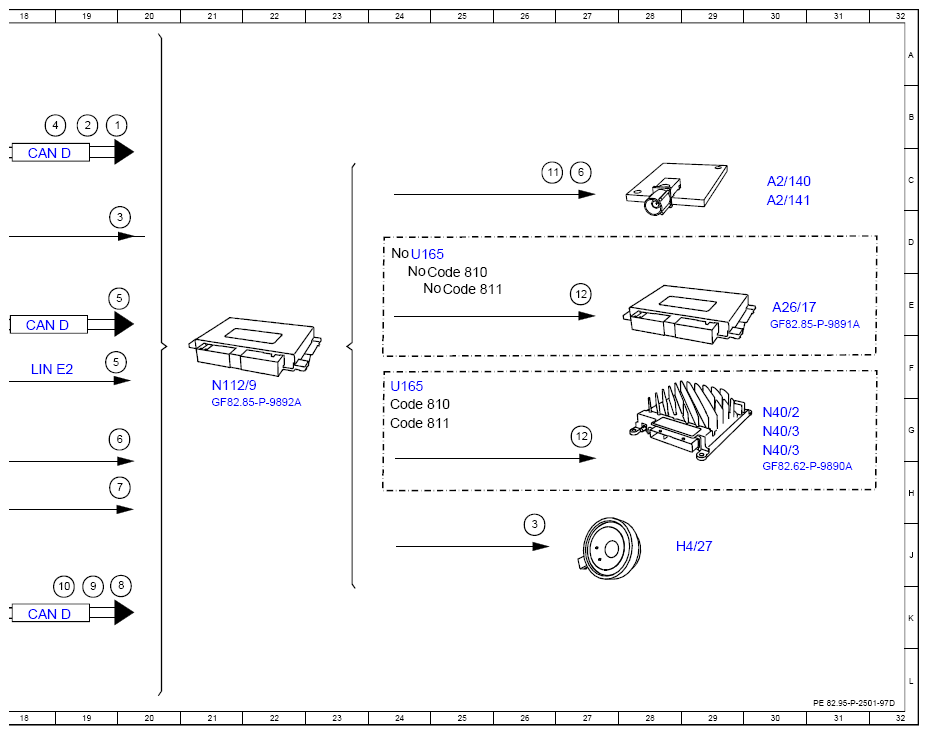

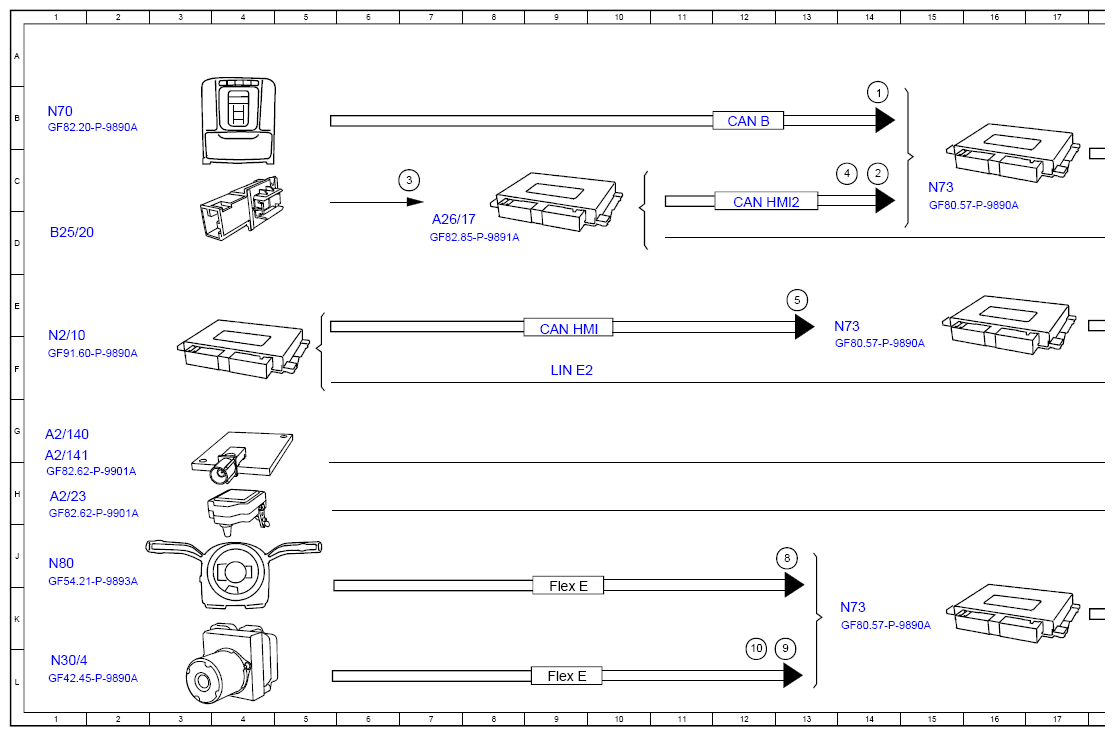

Function Schematic For Triggering Emergency Call - PE82.95-P-2501-97D
Model 213, 238.3, 257 as of model year 2021 with code 362 (HERMES communications module LTE)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Manual emergency call, signal | 54A |
| 1 | Manual emergency call, signal | 20B |
| 10 | Wheel speed, signal | 19K |
| 10 | Wheel speed, signal | 12L |
| 11 | Emergency call data telegram, signal | 26C |
| 12 | Mute function, signal | 27E |
| 12 | Mute function, signal | 27G |
| 2 | Operation, signal | 14B |
| 2 | Operation, signal | 19C |
| 3 | Audio, signal | 28J |
| 3 | Audio, signal | 7C |
| 3 | Audio, signal | 19D |
| 4 | Position data, signal | 14C |
| 4 | Position data, signal | 18B |
| 5 | Crash, signal | 13E |
| 5 | Crash, signal | 19F |
| 6 | Telephone, signal | 27C |
| 6 | Telephone, signal | 19G |
| 7 | GPS, signal | 19H |
| 8 | Steering wheel angle sensor, signal | 13J |
| 8 | Steering wheel angle sensor, signal | 20K |
| 9 | Yaw rate, signal | 9K |
| 9 | Yaw rate, signal | 9J |
| A2/140 | Emergency call system antenna 1 | 30C |
| A2/140 | Emergency call system antenna 1 | 1G |
| A2/141 | Emergency call system antenna 2 | 30C |
| A2/141 | Emergency call system antenna 2 | 1G |
| A2/23 | GPS antenna | 1H |
| A26/17 | Head unit | 30E |
| A26/17 | Head unit | 7D |
| B25/20 | Driver hands-free system microphone | 1D |
| CAN B | Interior CAN | 12B |
| CAN D | Diagnostic CAN | 18E |
| CAN D | Diagnostic CAN | 18K |
| CAN D | Diagnostic CAN | 18C |
| CAN HMI | User interface CAN | 9E |
| CAN HMI2 | User interface CAN 2 | 12C |
| Code 810 | Sound system | 24G |
| Code 810 | Sound system | 24E |
| Code 811 | Advanced sound system | 24G |
| Code 811 | Advanced sound system | 25E |
| Flex E | Chassis FlexRay | 9K |
| Flex E | Chassis FlexRay | 9L |
| H4/27 | Center instrument panel speaker | 29J |
| LIN E2 | Seat occupied recognition LIN | 9F |
| LIN E2 | Seat occupied recognition LIN | 18F |
| N112/9 | HERMES control unit | 21F |
| N2/10 | Supplemental restraint system control unit | 1F |
| N30/4 | Electronic Stability Program control unit | 1L |
| N40/2 | Sound system midline amplifier control unit | 30G |
| N40/3 | Sound system amplifier control unit | 30G |
| N40/3 | Sound system amplifier control unit | 30G |
| N70 | Overhead control panel control unit | 1B |
| N73 | Electronic ignition switch control unit | 14E |
| N73 | Electronic ignition switch control unit | 14K |
| N73 | Electronic ignition switch control unit | 15C |
| N80 | Steering column module control unit | 1J |
| U165 | Valid for AMG | 24D |
| U165 | Valid for AMG | 24F |
