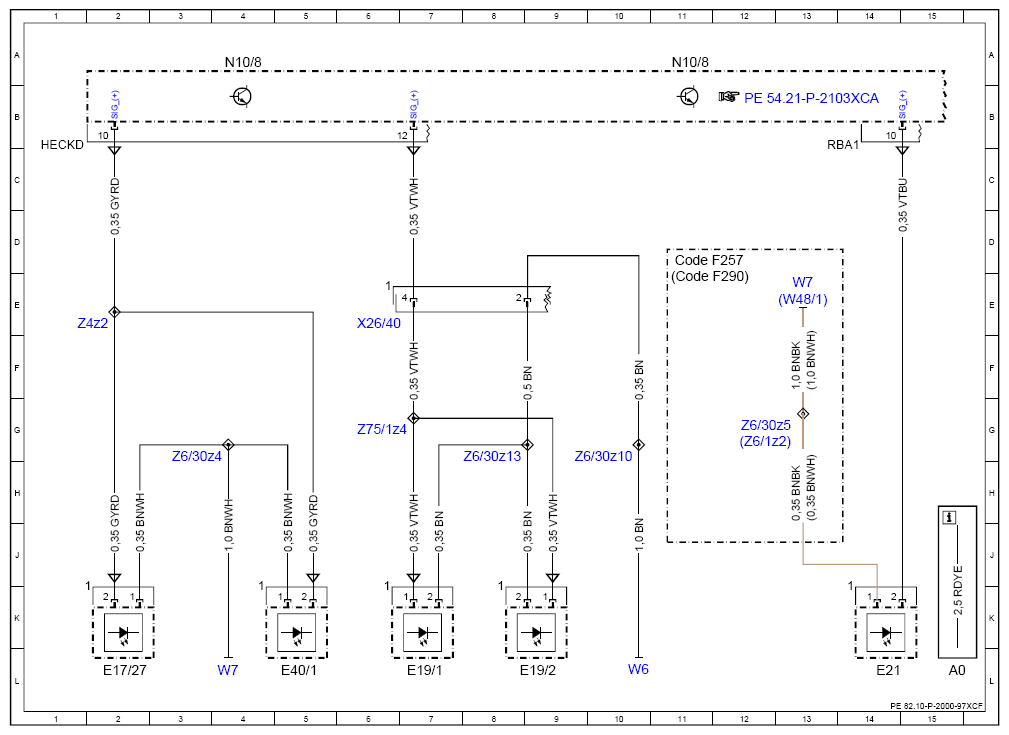

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97XCF
Model 257, 290 as of model year 2021
Rear license plate lamps, center brake lamp, warning/ambient lamps
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code F257 | MODEL SERIES 257 | 11D |
| Code F290 | Model series 290 | 11E |
| E17/27 | Trunk lid/liftgate warning lamp | 2L |
| E19/1 | Left license plate lamp | 7L |
| E19/2 | Right license plate lamp | 9L |
| E21 | Center stop lamp | 14L |
| E40/1 | Trunk lid/liftgate ambient lamp | 5L |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 11A |
| W48/1 | Right rear roof frame ground point | 13E |
| W6 | Left wheel arch trunk ground point | 10L |
| W7 | Right wheel house trunk ground point | 4L |
| W7 | Right wheel house trunk ground point | 13E |
| X26/40 | Rear bumper electrical connector | 6E |
| Z4z2 | Voltage supply connector sleeve | 2E |
| Z6/1z2 | Ground connection connector sleeve | 12G |
| Z6/30z10 | Ground connection connector sleeve | 10G |
| Z6/30z13 | Ground connection connector sleeve | 8G |
| Z6/30z4 | Ground connection connector sleeve | 3G |
| Z6/30z5 | Ground connection connector sleeve | 12G |
| Z75/1z4 | Voltage supply connector sleeve | 6G |
