Retrofit Wiring Harness For CD Drive - AZ82.64-P-0002-01LWE

Model 213.0/2 except code 498 (Japanese version)

Model 238.3/4 except code 498 (Japanese version)

Model 257 except code 498 (Japanese version)

Topical note Notes on the use of paint scraping nuts on ground connections   AH00.19-P-1000-20A
GROUND POINTS

Number Designation Model 257
BA00.19-P-1021-02D Left footwell ground point W34 Nm 10
GROUND POINTS

Number Designation Model 238
BA00.19-P-1023-02B Left footwell ground point W34 Nm 10
GROUND POINTS

Number Designation Model 213
BA00.19-P-1024-02A Left footwell ground point W34 Nm 10

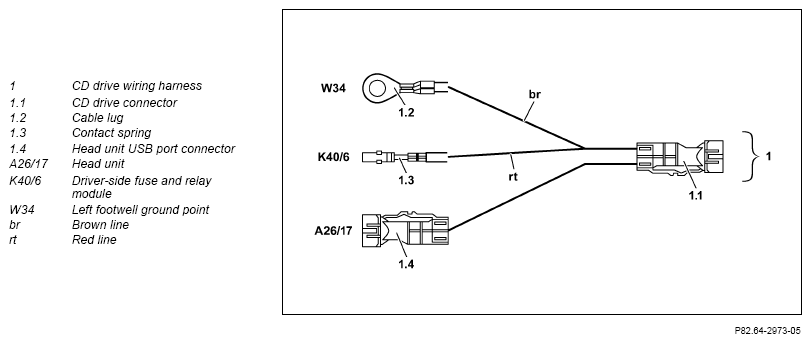

Connection scheme shown with code 531 (COMAND APS)

G14550065Courtesy of MERCEDES-BENZ USA

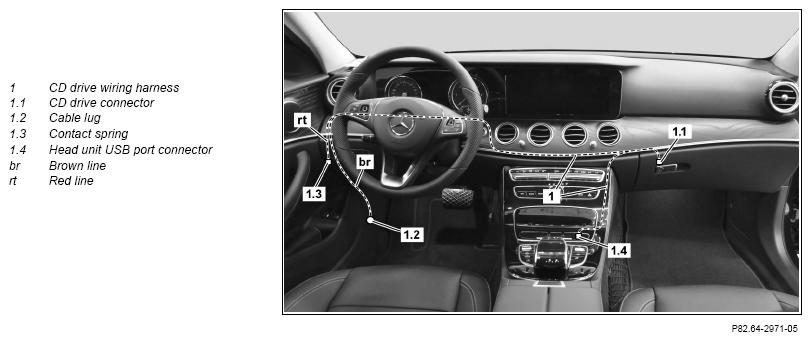

Routing diagram shown on model 213 LHD with code 531 (COMAND APS)

G14550066Courtesy of MERCEDES-BENZ USA

IMPORTANT The following operation steps have been described using an LHD vehicle. The component is installed as part of an identical process in RHD vehicles.

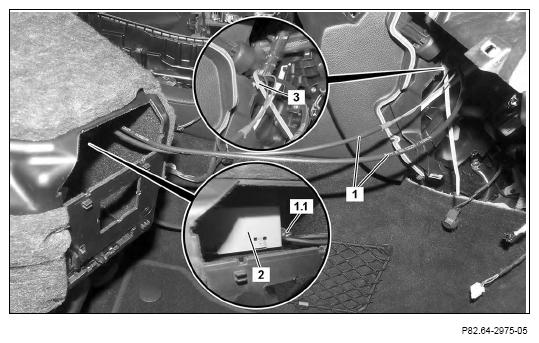

  1. Route CD drive wiring harness (1) from the center console to the glove compartment.

    IMPORTANT Note required extended length of approx. 400 mm.

  2. Secure the CD drive wiring harness (1) using a cable tie (3).

    IMPORTANT The CD drive connector (1.1) will be connected to the CD drive (2) at a later stage.

    Shown on model 213

    G13774998Courtesy of MERCEDES-BENZ USA

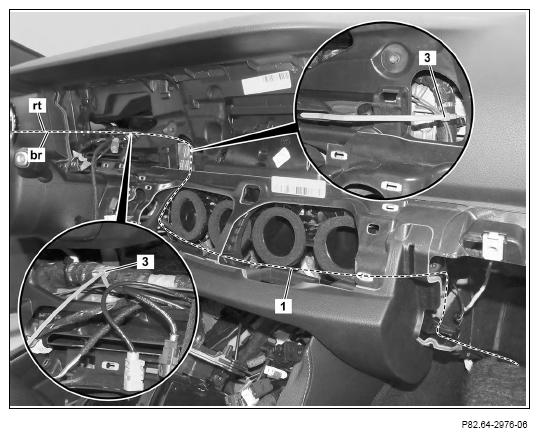

  3. Route brown line (br) and red line (rt) of CD drive wiring harness (1) along vehicle wiring harness behind instrument cluster to left A-pillar.
  4. Use cable tie (3) to fasten brown line (br) and red line (rt) on vehicle wiring harness.

    Shown on model 213

    G13774999Courtesy of MERCEDES-BENZ USA

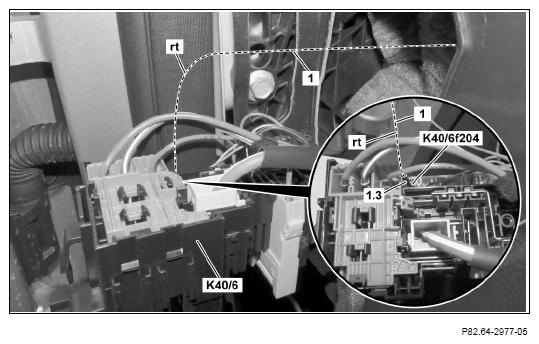

  5. Route red line (rt) of CD drive wiring harness (1) to the driver-side fuse and relay module (K40/6).
  6. Install contact springs (1.3) of red line (rt) in cavity 1 of electrical fuse 204 (K40/6f204).
  7. Use cable tie (3) to fasten red line (rt) on vehicle wiring harness.

    Shown on model 213

    G13775000Courtesy of MERCEDES-BENZ USA

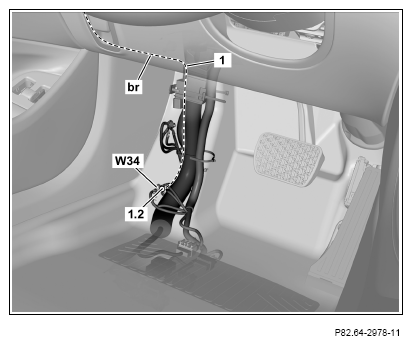

  8. Route brown line (br) of CD drive wiring harness (1) along vehicle wiring harness at left A-pillar to left footwell ground point (W34).
  9. Connect brown line (br) of CD drive wiring harness (1) to left footwell ground point (W34) Model 257 except code 498 (Japanese version)

    TORQUE SPECIFICATION Model 238.3/4

    except code 498 (Japanese version)

    TORQUE SPECIFICATION Model 213.0/2

    except code 498 (Japanese version) TORQUE SPECIFICATION .

  10. Use cable tie (3) to fasten brown line (br) on vehicle wiring harness.

    Shown on model 213

    G13775001Courtesy of MERCEDES-BENZ USA

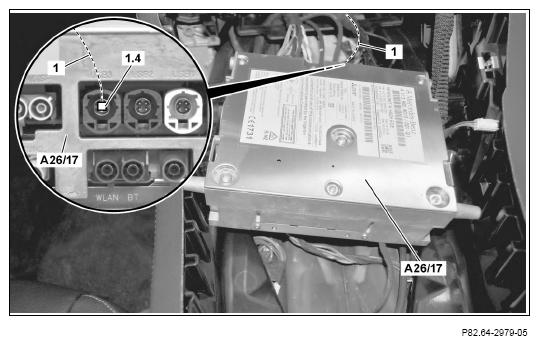

  11. Route CD drive wiring harness (1) to head unit (A26/17).
  12. Connect head unit USB port connector (1.4) of CD drive wiring harness (1) to head unit (A26/17).

    IMPORTANT The slot in the head unit (A26/17) has been labeled as "USB 3".

  13. Tie back the corresponding, excess cable length.

Shown on model 213

G13775002Courtesy of MERCEDES-BENZ USA
