Retrofit Touchpad - AN82.60-P-0017-03LWE

Model 213.0/1/2, 238, 257

Topical note Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A

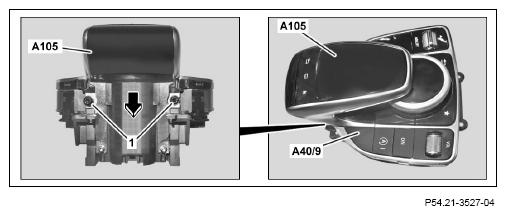

  1. Insert the touchpad (A105) into the Audio/COMAND control panel (A40/9) in the direction of the arrow.
  2. Screw on the touchpad (A105) using screws/bolts (1).
    G12824552Courtesy of MERCEDES-BENZ USA
