Retrofit Control Unit - AZ82.20-P-0001-05FR
Model 257.3
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1074-01A | Self-adhesive felt strip 40 2 mm | A 001 983 23 10 |
| BR00.45-Z-1084-02A | Binder Duotec® Pilz in Pilz Klett - with adhesive 32 | Klettband Technik Schultz UG Schulstrasse 6 71111 Waldenbuch Germany Tel.: +49 (0) 7157 6754-83 or 82 Fax: +49 (0) 7157 6696815 info@klettband-technik.de http://www.klettband-technik.de |
- Stick self-adhesive felt strip 40 2 mm to upper side control unit (1).
- Stick Velcro strips (7) to underside of illuminated door sill molding.
- Detach carrier foils from Velcro strips (7).

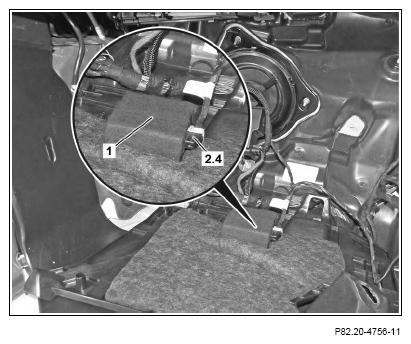

- Stick control unit for illuminated door sill molding (1) onto footrest.
Black 18-pin connector socket (2.4) of illuminated door sill molding wiring harness is connected to illuminated door sill molding control unit (1) at a later point in time.
