Retrofit Comand Online - AN82.85-P-0009FR

Model 257

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 506 (Audio 20 NTG 5.5 radio)

except code 446 (Touchpad only)

except code 448 (Touchpad)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering.	Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area.	AS00.19-Z-0002-01A
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on soft soldering		AH00.19-P-1000-07A
	Remove
1	Remove display module.
			AR54.30-P-6023FR
2	Remove center console.
			AR68.20-P-2000FR

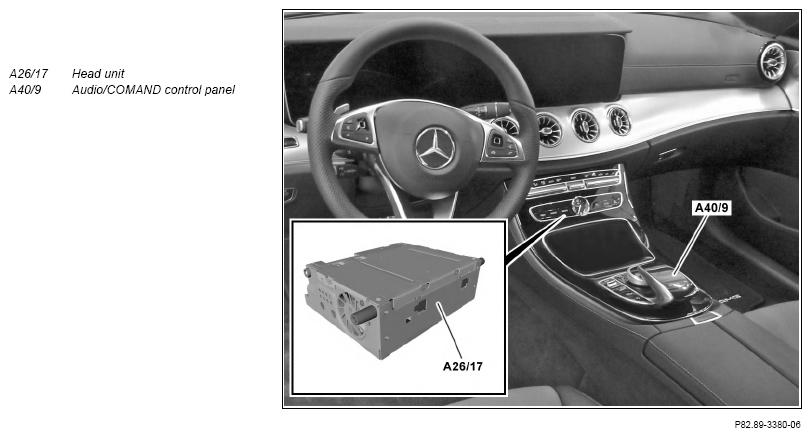

3	Remove head unit (A26/17) for Audio 20 NTG 5.5 radio.
		The head unit (26/17) for the Audio 20 NTG 5.5 radio is no longer required.	AR82.85-P-1101FR
4	Remove front passenger seat.
			AR91.10-P-1000FR
5	Remove floor covering at front on front
	passenger side.
			AR68.80-P-0008FR

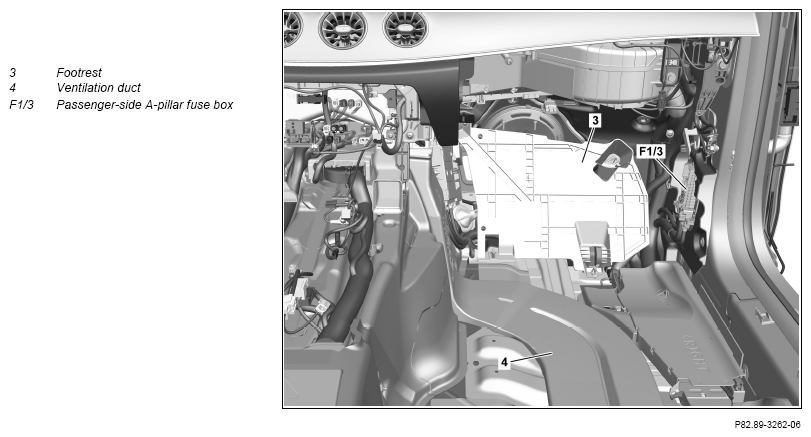

6	Remove ventilation duct (4).
7	Remove footrest (3).
8	Release A-pillar fuse box on front passenger side (F1/3).
			AR54.15-P-1312FR
9	Remove Audio/COMAND control panel (A40/9).
		The Audio/COMAND control panel (A40/9) is no longer required.	AR54.21-P-0504FR
10	Remove driver seat.	Model 257.### 1#
			AR91.10-P-1000FR

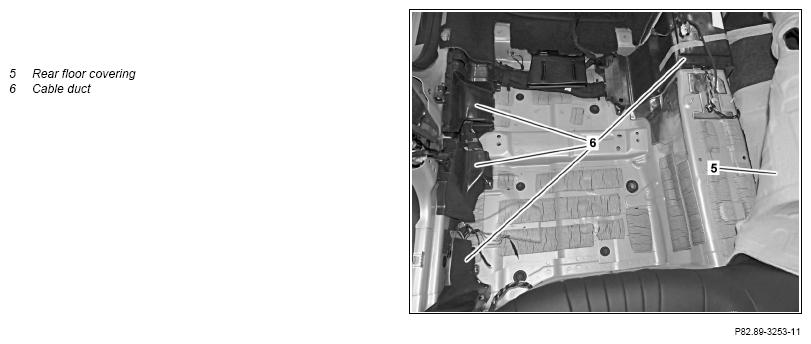

11	Release rear floor covering (5) on left side and fold to one side until the cable ducts (6) are accessible.
			AR68.80-P-0003FR
12	Open cable ducts (6) from center console up
	to entrance on rear passenger compartment.
	Install
13	Retrofit wiring harness for touchpad in center console area.
			GF00.19-P-3005-14XBA
			AR00.19-P-0100-09A
			AN82.60-P-0017-04FR
		Fix touchpad wiring harness in place only after routing all retrofit wiring harnesses. Repair wiring harness using end sleeve.
		Location of end sleeves in vehicle interior at left.
		Left center console ground point	*BA00.19-P-1011-02D
		Electromagnetic compatibility ground point (touchpad)	BA00.19-P-1029-02D
		New passenger car wiring harness repair kit	Fig 2
		Wiring harness repair kit, basic	Fig 6
		Welding bead catcher	Fig 1
		Wire stripper	Fig 4
		Reflector	Fig 5
		Adapter	Fig 3
14	Retrofit touchpad.		AN82.60-P-0017-03LWE
15	Retrofit wiring harness for touchpad.		AN82.60-P-0017-01FR
16	Install new Audio/COMAND control panel (A40/9).
			AR54.21-P-0504FR
		Install Audio/COMAND control panel
		(A40/9) in center console cover.
17	Retrofit electrical wiring harness for instrument cluster.	Fix electrical wiring harness for instrument cluster in place only after routing all retrofit	AN82.85-P-0009-06FR
		wiring harnesses.
18	Fix routed retrofit wiring harnesses in place using cable ties.
19	Install footrest (3).
20	Install ventilation duct (4).
21	Insert fuse with fuse rating of 5 A into slot MF3.
	Assignment of passenger-side A-pillar fuse box		GF54.15-P-1256-48FR
22	Install floor covering at front on front passenger side.
			AR68.80-P-0008FR
23	Install driver seat.	Model 257.### 1#
			AR91.10-P-1000FR
24	Install front passenger seat.
			AR91.10-P-1000FR
25	Install new head unit (A26/17).
			AR82.85-P-1101FR
26	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
27	Delete special equipment in online vehicle data card.	Code 506 (Audio 20 USB).
28	Delete special equipment in online vehicle data card.	Model 257 with code 355 (Pre-installation for navigation retrofit), model 257 with code 357
		(Map navigation) Code 355 (Pre-installation for navigation retrofit). Code 357 (Map navigation).
29	Enter special equipment into online vehicle data card.	Code 448 (Touchpad) Code 531 (COMAND APS). Code 08U (Vehicle setup). Code 12U (Concierge service). Code 14U (Smartphone Integration Package). Code 16U (Smartphone Integration Carplay). Code 17U (Smartphone Integration Google Automotive Link).
30	Attach "COMAND APS retrofitted in accordance with AN82.85-P-0009FR" note under field organization texts to design group 54 and design group 82.
31	Connect diagnostic system and select vehicle using vehicle identification number (VIN).
			AD00.00-P-2000-06FR
32	Perform variant coding using the software calibration number (SCN).	Rear SAM. Instrument cluster. Head unit. HERMES control unit. Electronic ignition lock control unit Control unit for climate control. Model 257 with code 640 (Dynamic SAE right-hand traffic LED headlamp), model 257 with code 641 (Dynamic left-hand traffic LED headlamp), model 257 with code 642 (Dynamic right-hand traffic LED headlamp) Headlamp control unit. Model 257 with code 235 (Active Parking Assist with PARKTRONIC) Parking system control unit. Model 257 with code 233 (DISTRONIC PLUS) Mercedes-Benz Intelligent Drive control unit.
33	Disconnect diagnostic system.
			AD00.00-P-2000-06FR
	Check
34	Perform function test.	See Owner's Manual.
