Prepare CD Drive Holder For Installation - AZ82.64-P-0002-06LWE
Model 213.0 (except 213.088/089), 213.2 (except 213.288/289)
Model 213.088/089/288/289
except code 460 (Canada version)
except code 494 (US version)
Model 238.3
except code 460 (Canada version)
except code 494 (US version)
Model 257
except code 460 (Canada version)
except code 494 (US version)
Model 290
except code 460 (Canada version)
except code 494 (US version)
- Remove protective foil of adhesive film (2).

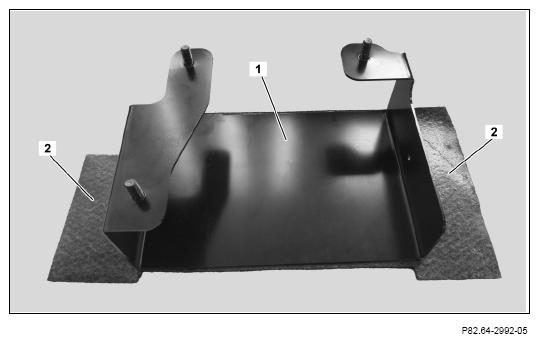

- Place CD drive bracket (1) on to adhesive film (2).

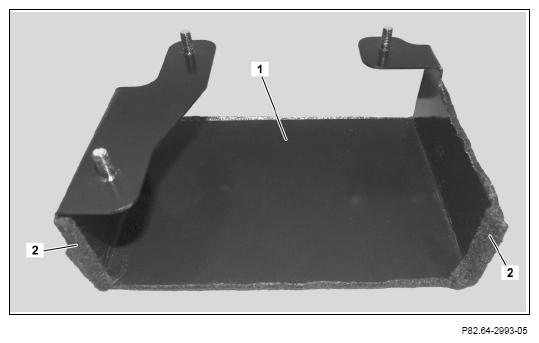

- Fold back projecting areas of adhesive film (2) and adhere to CD drive bracket (1).
- Use a screwdriver to pierce through the covered holes on the left and right sides.

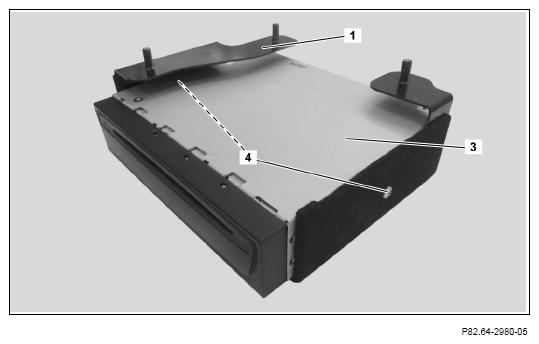

- Insert CD drive (3) into CD drive bracket (1).
- Mount CD drive (3) to CD drive bracket (1) with screws/bolts (4).
Ensure it has been correctly positioned and the screw connection has been securely fastened.
