Fabricate Cutting Template For CD Drive - AZ82.64-P-0002-10LWP

Model 213.088/089/288/289

with code 460 (Canada version)

Model 213.088/089/288/289

with code 494 (US version)

Model 238.3

with code 460 (Canada version)

Model 238.3

with code 494 (US version)

Model 238.4

Model 257

with code 460 (Canada version)

Model 257

with code 494 (US version)

Model 290

with code 460 (Canada version)

Model 290

with code 494 (US version)

Courtesy of MERCEDES-BENZ USA

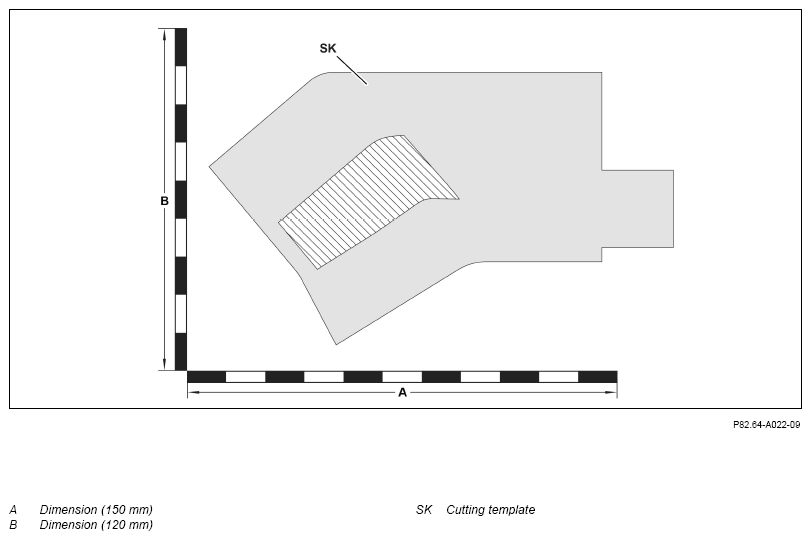

Cutting template (SK)

1. Print out the cutting template drawing (SK).
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy the printed cutting template (SK) to original size using the determined scaling factor.
5. Cut out the cutting template (SK).
6. Cut out the hatched area of the cutting template (SK).
