Electronic ignition/starter switch (EZS) removal and installation - AR46.10-P-0810NKA
MODEL 117, 156, 176
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect Star Diagnosis and perform initial startup of electronic ignition lock control unit (N73) | When replacing the electronic ignition lock control unit (N73). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove instrument cluster | AR54.30-P-6015NKB | |
| 3 | Unclip cover to rear in cutout of steering column tube module | ||
| 4 | Remove driver kneebag | MODEL 117, 156, 176 with CODE 294 (Kneebag) | AR91.60-P-0200NKB |

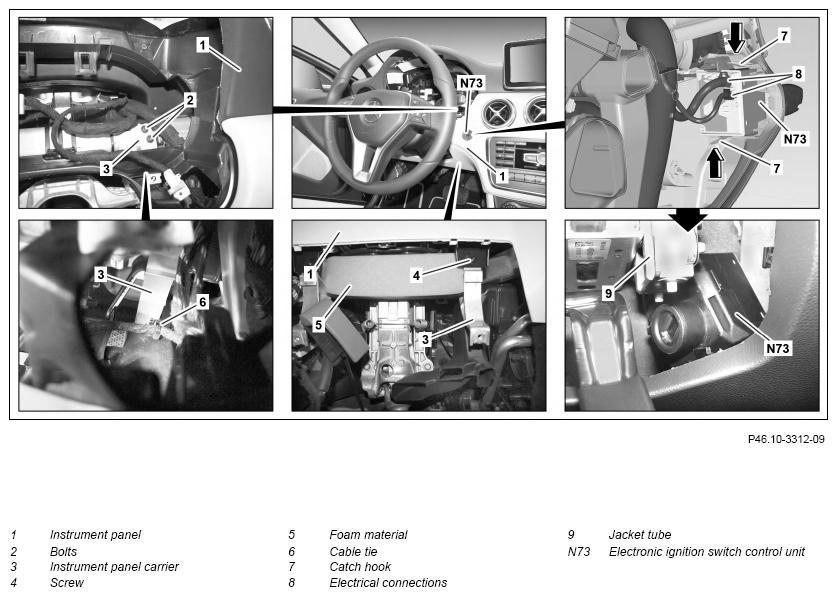

| 5 | Remove bolts (2, 4) from instrument panel carrier (3) | ||
| 6 | Detach cable tie (6) from instrument panel carrier (3) | ||
| 7 | Remove foam material (5) | ||
| 8 | Remove instrument panel carrier (3) downward from instrument panel (1) | ||
| 9 | Release catch hooks (7) on electronic ignition lock control unit (N73) in direction of arrows and remove electronic ignition lock control unit (N73) from instrument panel (1) | ||
| 10 | Guide electronic ignition lock control unit (N73) downward out of instrument panel (1) until electrical connectors (8) are accessible | ||
| 11 | Disconnect electrical connectors (8) from electronic ignition lock control unit (N73) | ||
| 12 | Remove electronic ignition lock control unit (N73) | ||
| 13 | Install in the reverse order |
